![Aluminum Radiator & Fan Combo for 1967-1970 Ford Mustang w/ Small Block [With Air Conditioning] [12 in. Dual Fans]]](https://www.jegs.com/images/mini_750/500/555/555-511492.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-511492

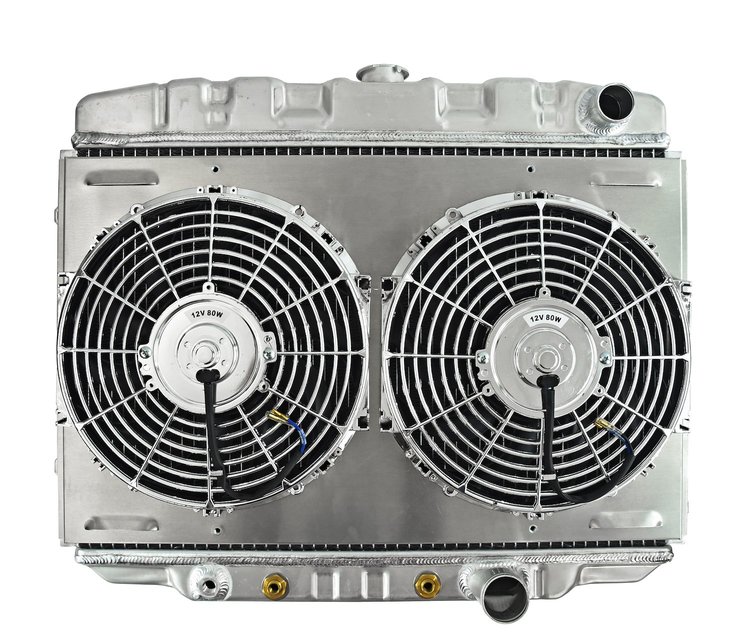

Aluminum Radiator & Fan Combo for 1967-1970 Ford Mustang w/ Small Block [With Air Conditioning] [12 in. Dual Fans]]
$42999$472.99You Save$43.00
Ships on 09/16/2026
Lowest Price GuaranteeFord Mustang
Aluminum Radiator & Fan Combo1967-1970 Ford Mustang With AC Small Block 289, 302, & 351W 12 in. Dual Fans Direct Fitment Improved Cooling Efficency 2-Row 1 1/8 in. Wide High Flow Tubes Aluminum Construction Semi-Polished Finish
JEGS 555-511492 Reproduction Aluminum Radiator & Fan Combo Features:
- Direct Replacement Bolt-in Radiator, "Looks Like the Original"
- Original Style Stamped Tanks and Mounting Brackets
- Made with High-Quality 100-percent Aluminum and Fully Tig Welded
- Downflow Design
- Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
- Core Width: 24.00 in.
- Core Height: 16.00 in.
- Core Thickness: 2.5 in.
- Overall Width: 25.50 in.
- Overall Height: 21.75 in.
- Inlet size: 1.500 in.
- Inlet Location: Right/Passenger Side Upper
- Outlet Size: 1.500 in.
- Outlet Location: Right/Passenger Side Lower
- Built-in Transmission Cooler
- 12 in. Dual Fans
- Semi-Polished Finish That Can Be Easily Painted
Part TypeRadiator
BrandJEGS
Package Height8.0
Package Width27.0
Package Length33.0
Weight26.0 PG
Part CategoryReplacement Parts
Overall Height21.75 in (552.5 mm)
Outlet Size1.500 in.
Inlet Size1.500 in.
Fan QuantityDual
Radiator Cap IncludedNo
Radiator MaterialAluminum
Inlet LocationUpper passenger side
2 Row Core Thickness2.5 in (63.5 mm)
Core Height16 in (406.4 mm)
Core Thickness3 in (76.2 mm)
Trans Cooler Line Connection1/8-27 NPT
Fan Diameter12
Core Width24 in (609.6 mm)
Row Quantity2
Radiator FinishSemi-Polished
Fan IncludedYes
Transmission CoolerYes
Part FitmentDirect Fit
Radiator StyleDownflow
Package Qty1
Package TypeEA
