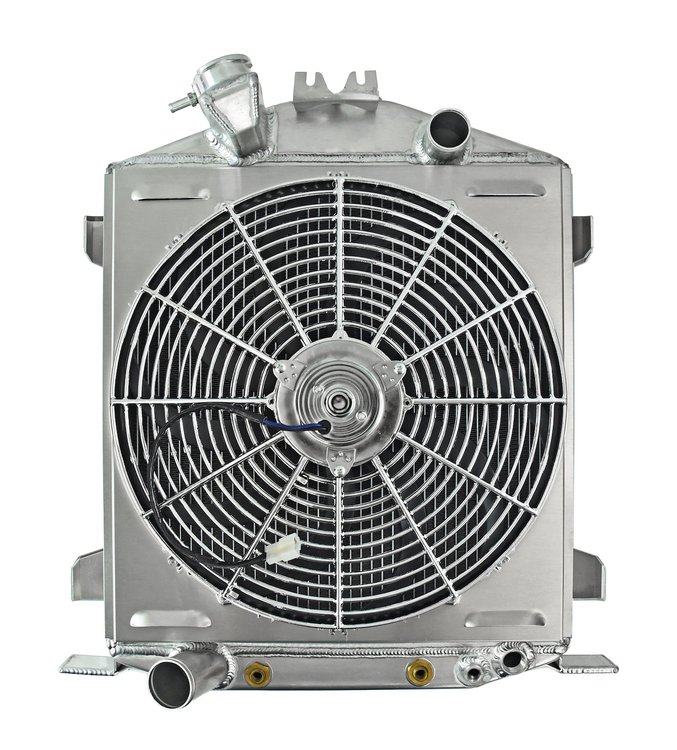

Aluminum Radiator & Fan Combo for 1932 Ford LO-BOY with Ford V8 Engine and Chopped Grill [16 in. Fan]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511496

Aluminum Radiator & Fan Combo for 1932 Ford LO-BOY with Ford V8 Engine and Chopped Grill [16 in. Fan]

$38999$428.99You Save$39.00
ShippingShips on 11/30/2026
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

Part Number : 555-10560
$4899$53.99
You Save$5.00

1932 Ford LO-BOY w/Ford Engine
Aluminum Radiator & Fan Combo
  • 1932 Ford LO-BOY w/Ford V8 Engine
  • Fits w/Chopped Grill
  • w/16 in. Dia. Single Electric Fan & Shroud
  • Direct Fitment
  • 2-Row 1 1/8 in. Wide High Flow Tubes
  • Aluminum Construction
  • Semi-Polished Finish

    JEGS 511496 Aluminum Radiator & Fan Combo Features:

    • Designed to Fit 1932 Ford LO-BOY with Ford V8 Engine Conversion and chopped grill
    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"
    • Original Style Stamped Tanks and Mounting Brackets

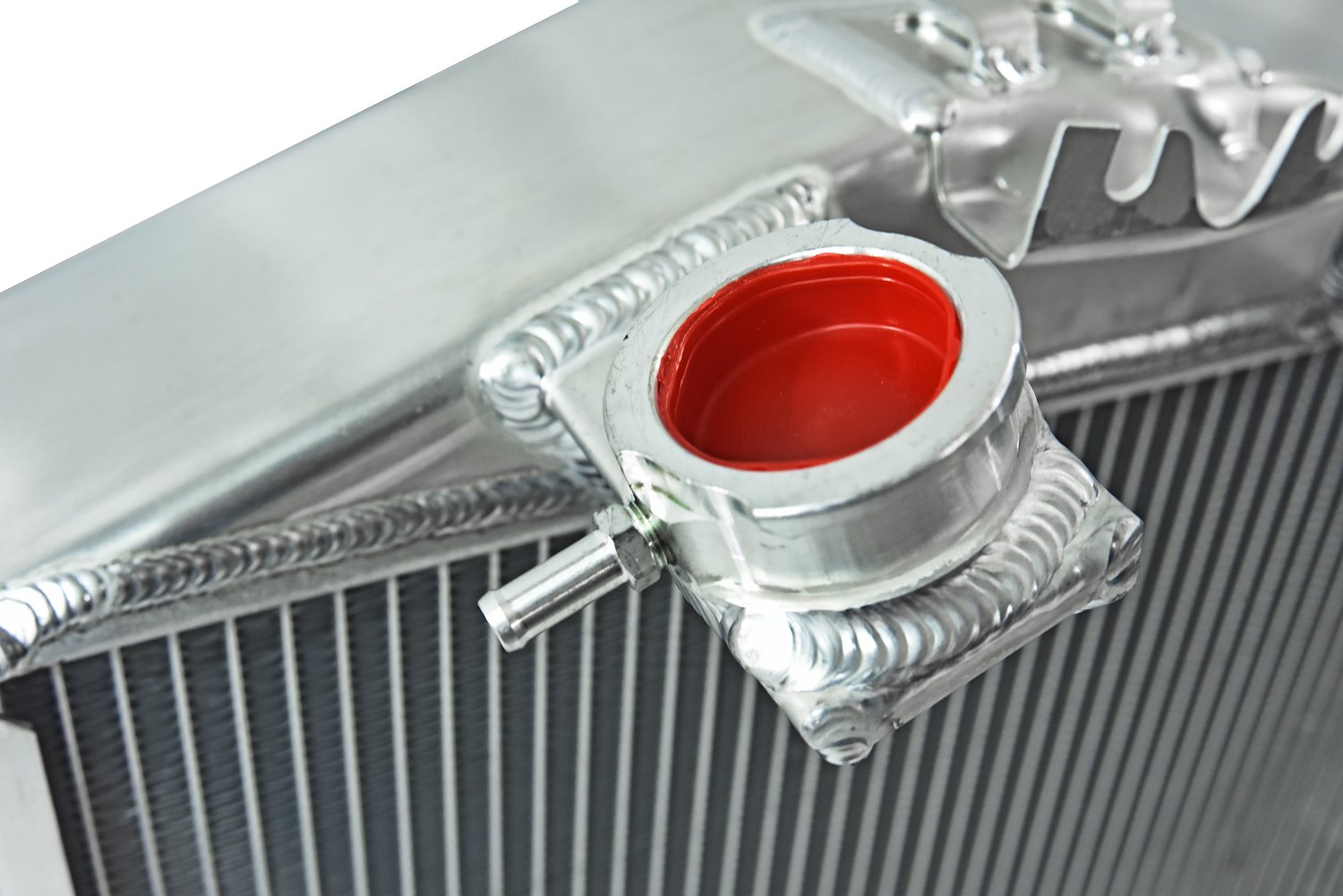

    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Downflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core Width: 16 in.
    • Core Height: 17 1/2 in.
    • Core Thickness: 2 1/2 in.
    • Overall Dimensions at Widest Point
      • Overall Width: 19 1/2 in.
      • Overall Height: 22 1/4 in.
      • Overall Thickness: 4 in.
    • Inlet Size: 1 1/2 in. Diameter
    • Inlet Location: Right/Passenger Side Upper
    • Outlet Size: 1 3/4 in. Diameter
    • Outlet Location: Left/Driver Side Lower
    • Built-in Transmission Cooler
    • The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference
    • Includes 2600 CFM 16 in. Diameter Single Blade Electric Fan with Aluminum Fan Shroud
    • Fan Installation Requires Wiring Harness and Mounting Screws Which are Not Included and are Available Separately
    • Fan Shroud Dimensions:
      • Width: 17 1/4 in.
      • Height: 17 3/8 in.
      • Thickness: 3 1/2 in.

    JEGS 555-511496 Aluminum Radiator & Fan Combo Notes:

    • Will Work with Automatic or Manual Transmission Applications
  • Efficient Cooling for your Street Rod

    JEGS Aluminum Street Rod Radiators are designed to make your engine conversion project a breeze and provide efficient cooling. Each radiator is hand-made from 100-percent aluminum with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific engine conversion application. These units are a direct bolt-in to the factory vehicle location, easy to install, and will provide your Street Rod with a clean look. These radiators are available with or without an electric fan.

    JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, and Engine Conversions. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Aluminum Radiators for Street Rods
    BrandJEGS
    Package Height10.0
    Package Width23.0
    Package Length25.0
    Weight30.0 PG
    Part CategoryPerformance Parts
    Overall Thickness4 in (101.6 mm)
    Overall Height22.25 in (565.2 mm)
    Inlet Size1.500 in.
    Wiring IncludedNo
    Radiator Cap IncludedYes
    Shroud MaterialAluminum
    Core Width16 in (406.4 mm)
    Row Quantity2
    Overall Width19.5 in (495.3 mm)
    Tube Size1.125 in (28.575 mm)
    Radiator FinishSemi-Polished
    Transmission CoolerYes
    Maximum Fan Cfm2,600 cfm
    Shroud ColorSemi-Polished
    Radiator StyleDownflow
    Outlet Size1.75 in (44.5 mm)
    Fan QuantitySingle
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    QuantitySold as a Kit
    Mounting Hardware IncludedNo
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height17.5 in (444.5 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/8-27 NPT
    Fan Diameter16 in (406.4 mm)
    Mounting Brackets IncludedYes
    Radiator TypeEngine Conversion
    Fan IncludedYes
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
