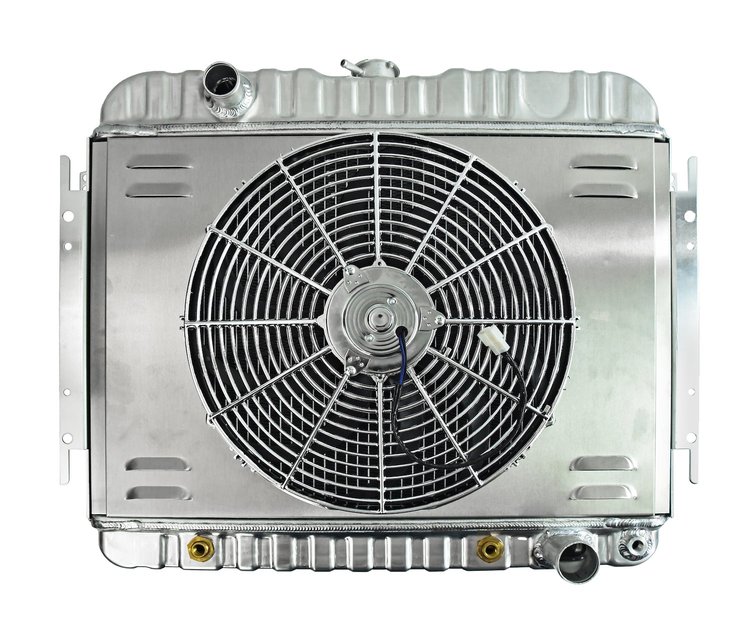

JEGS 555-511506 Reproduction Aluminum Radiator & Fan Combo Features:

• Direct Replacement Bolt-in Radiator, "Looks Like the Original"
• Original Style Stamped Tanks and Mounting Brackets
• Made with High-Quality 100-percent Aluminum and Fully Tig Welded
• Double the Capacity of Stock 2-Row
• Downflow Design
• Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
• Core: 23 1/2 in. Wide x 15 1/2 in. High x 2 1/2 in. Thick
• Overall Height: 23 in.
• Overall Width: 28 in.
• Inlet: 1 1/2 in. Diameter Left/Driver Side Upper
• Outlet: 1 3/4 in. Diameter Right/Passenger Side Lower
• Built-in Transmission Cooler
• 16 in. Single Fan
• Semi-Polished Finish that Can Be Easily Painted

JEGS 555-511506 Aluminum Radiator & Fan Combo Notes:

• Will Work with Automatic or Manual Transmission Applications
• Will Fit Some Small Blocks (283, 327, or 350)
