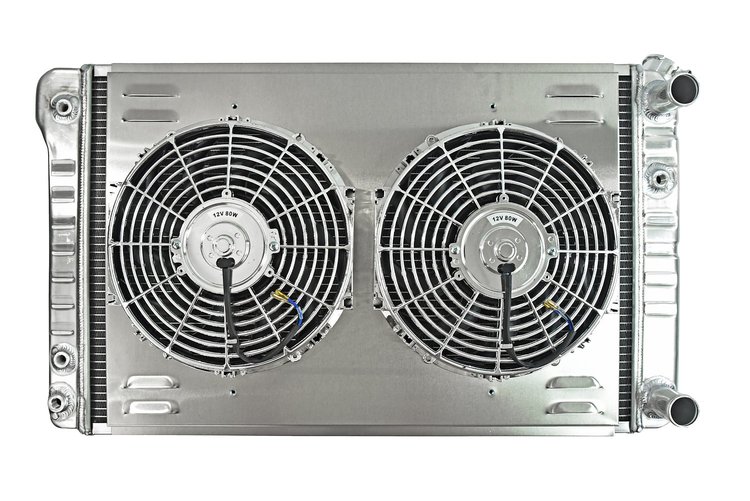

Aluminum Radiator & Fan Combo for Select 1967-1972 GM Cars & Trucks w/GM LS Engine Conversion [Dual 12 in. Fans]

Name: Aluminum Radiator & Fan Combo for Select 1967-1972 GM Cars & Trucks w/GM LS Engine Conversion [Dual 12 in. Fans]
Brand: JEGS
SKU: 555-511517
Price: 464.99 USD
Availability: InStock

^$464⁹⁹$511.99You Save$47.00

Ships on 09/16/2026

Lowest Price Guarantee

GM Models w/GM LS Engine

Radiator & Fan Combo

1968-1972 GM A-Body Cars

1967-1972 Chevy/GMC Trucks

w/GM LS Eng. Conversion

w/12 in. Dual Electric Fans & Shroud

See Fitment Tab for Applications

2-Row 1 1/8 in. W. High Flow Tubes

Aluminum

Semi-Polished

JEGS 555-511517 Aluminum Radiator & Fan Combo for GM LS Engine Conversion Features:

Designed to Fit 1968-1972 Buick, Chevrolet, Oldsmobile, Pontiac (GM A-Body) Cars & 1967-1972 Chevy/GMCTrucks w/GM LS Engine Conversion
Direct Replacement Bolt-in Radiator, "Looks Like the Original"
Original Ribbed Style Stamped Tanks
Does Not Use Mounting Brackets
Inlet and Outlet Attached for Specific Engine Conversion
Made with High-Quality 100-percent Aluminum and Fully Tig Welded
Crossflow Design
Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
Core Width: 28 1/4 in.
Core Height: 18 3/4 in.
Core Thickness: 2 1/2 in.
Overall Dimensions at Widest Point
- Overall Width: 33 1/2 in.
- Overall Height: 18 3/4 in.
- Overall Thickness: 3 in.
Inlet: 1 1/2 in. Diameter Right/Passenger Side Upper
Outlet: 1 1/2 in. Diameter Right/Passenger Side Lower
Built-in Provision on Right/Passenger Side Tank for LS Engine Steam Port
Built-in Transmission Cooler
The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference.
Includes Dual 1300 CFM 12 in. Diameter Single Blade Electric Fans with Aluminum Fan Shroud
Fan Installation Requires Wiring Harness and Mounting Screws Which are Not Included and are Available Separately
Fan Shroud Dimensions:
- Width: 25 1/8 in.
- Height: 15 1/8 in.
- Thickness: 3 1/2 in.

JEGS 555-511517 Aluminum Radiator & Fan Combo Applications:

1968-1972 GM A-Body Cars
- 1968-1972 Buick Skylark
- 1968-1972 Chevrolet Chevelle
- 1968-1972 Chevrolet El Camino
- 1968-1972 Chevrolet Malibu
- 1970-1972 Chevrolet Monte Carlo
- 1968-1972 Oldsmobile Cutlass
- 1968-1972 Oldsmobile F85
- 1968-1972 Pontiac GTO
- 1968-1972 Pontiac Lemans
- 1968-1972 Pontiac Tempest
1967-1972 Chevrolet Trucks
1967-1972 GMC Trucks

JEGS 555-511517 Aluminum Radiator & Fan Combo for GM LS Engine Conversion Notes:

Will Work with Automatic or Manual Transmission Applications

Efficient Cooling for Your Engine Conversion

JEGS Aluminum Conversion Radiators for Cars, Jeeps, and Trucks are designed to make your engine conversion project a breeze and provide efficient cooling. Each radiator is hand-made from 100-percent aluminum with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific engine conversion application. These units are a direct bolt-in to the factory vehicle location, easy to install, and will provide your ride with a clean look.

JEGS also offers other Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods, and Ready-Fit Radiators for Cars and Trucks. For more information CLICK on the Links Below.

Part TypeRadiator

Product LineJEGS Aluminum Conversion Radiators for Cars, Jeeps and Trucks

BrandJEGS

Package Height7.0

Package Width22.0

Package Length35.0

Weight32.0 PG

Part CategoryPerformance Parts

Overall Thickness3 in (76.2 mm)

Overall Height18.75 in (476.3 mm)

Outlet Size1.5 in (38.1 mm)

Inlet Size1.500 in.
