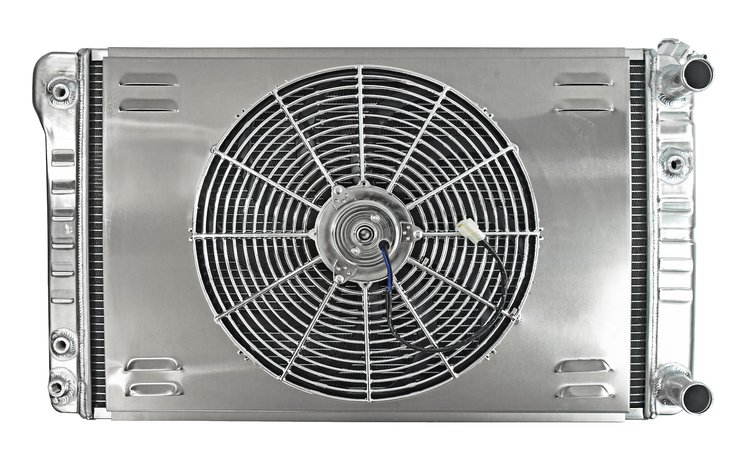

JEGS 555-511519 Aluminum Radiator & Fan Combo for GM LS Engine Conversion Features:

• Designed to Fit 1968-1972 Buick, Chevrolet, Oldsmobile, Pontiac (GM A-Body) Cars & 1967-1972 Chevy/GMC Trucks w/GM LS Engine Conversion
• Direct Replacement Bolt-in Radiator, "Looks Like the Original"

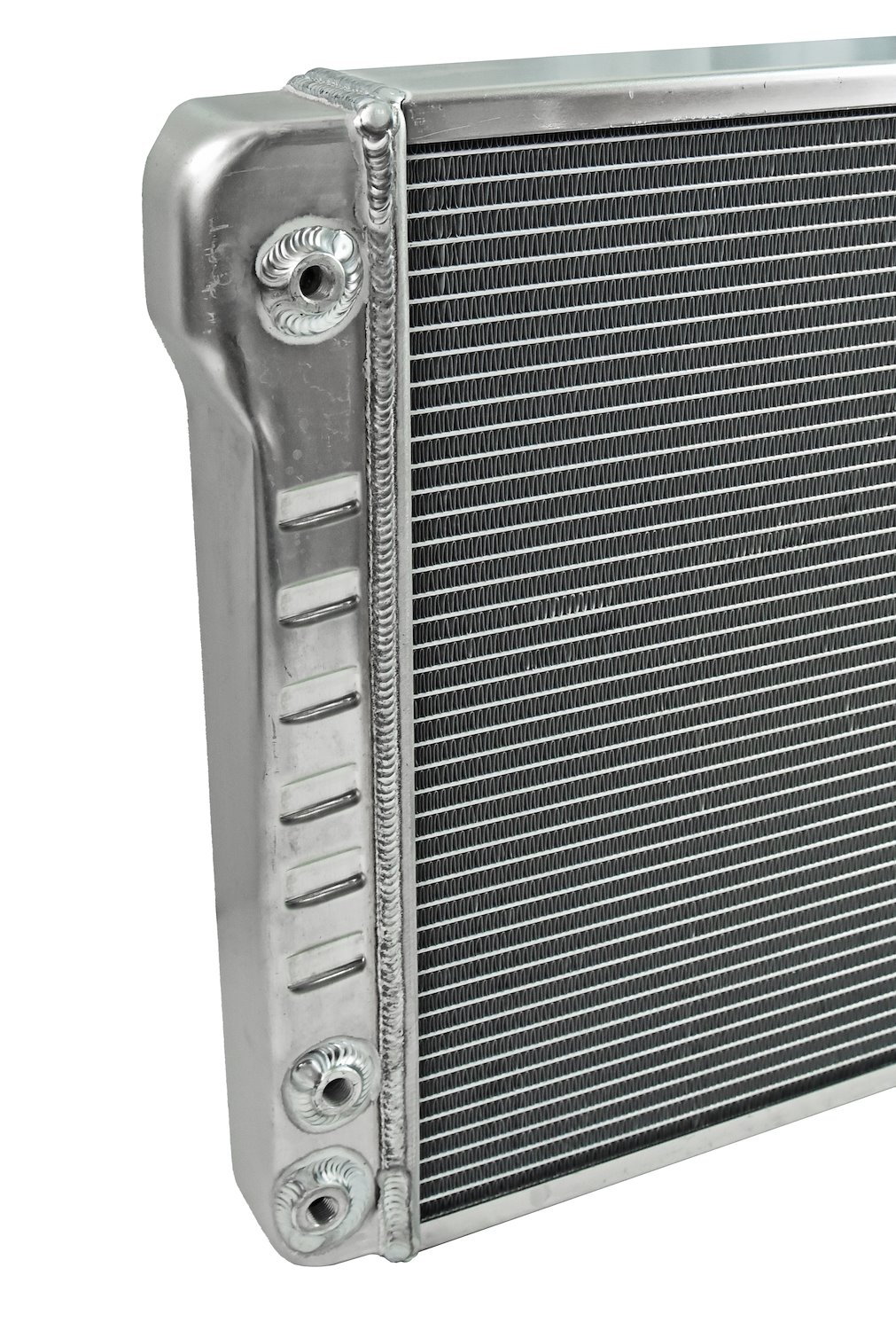

• Original Ribbbed Style Stamped Tanks
• Does Not Use Mounting Brackets
• Inlet and Outlet Attached for Specific Engine Conversion
• Made with High-Quality 100-percent Aluminum and Fully Tig Welded
• Crossflow Design
• Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
• Core Width: 28 1/4 in.
• Core Height: 18 3/4 in.
• Core Thickness: 2 1/2 in.
• Overall Dimensions at Widest Point
  • Overall Width: 33 1/2 in.
  • Overall Height: 18 3/4 in.
  • Overall Thickness: 3 in.
• Inlet: 1 1/2 in. Diameter Right/Passenger Side Upper
• Outlet: 1 1/2 in. Diameter Right/Passenger Side Lower
• Built-in Provision on Right/Passenger Side Tank for LS Engine Steam Port
• Built-in Transmission Cooler
• The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference.
• Includes 2600 CFM 16 in. Diameter Single Blade Electric Fan with Aluminum Fan Shroud
• Fan Installation Requires Wiring Harness and Mounting Screws Which are Not Included and are Available Separately
• Fan Shroud Dimensions:
  • Width: 25 1/8 in.
  • Height: 15 1/8 in.
  • Thickness: 3 1/2 in.

JEGS 555-511519 Aluminum Radiator & Fan Combo Applications:

• 1968-1972 GM A-Body Cars
  • 1968-1972 Buick Skylark
  • 1968-1972 Chevrolet Chevelle
  • 1968-1972 Chevrolet El Camino
  • 1968-1972 Chevrolet Malibu
  • 1970-1972 Chevrolet Monte Carlo
  • 1968-1972 Oldsmobile Cutlass
  • 1968-1972 Oldsmobile F85
  • 1968-1972 Pontiac GTO
  • 1968-1972 Pontiac Lemans
  • 1968-1972 Pontiac Tempest
• 1967-1972 Chevrolet Trucks
• 1967-1972 GMC Trucks

JEGS 555-511519 Aluminum Radiator & Fan Combo for GM LS Engine Conversion Notes:

• Will Work with Automatic or Manual Transmission Applications
