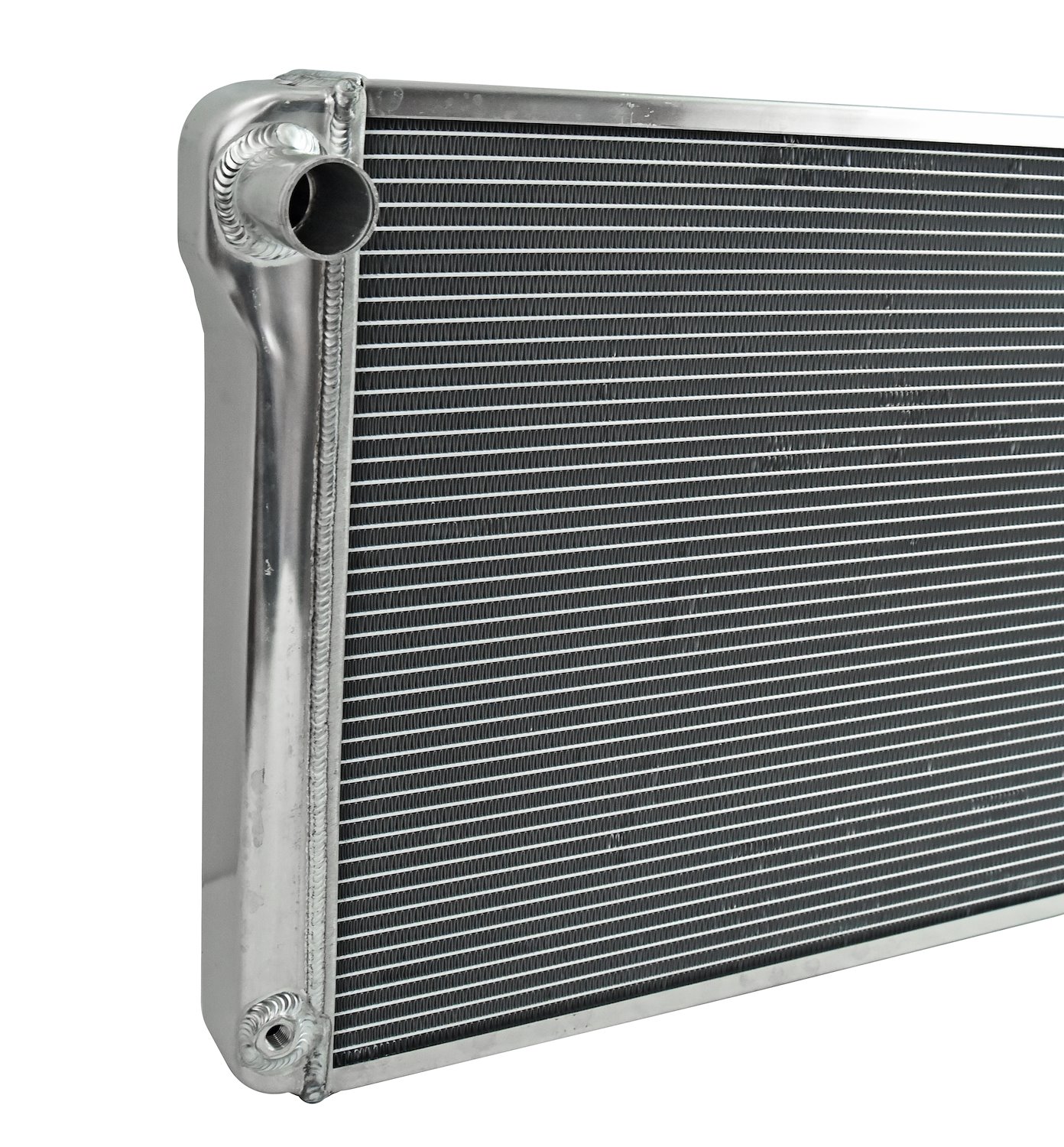

JEGS 511525 Reproduction Aluminum Radiator & Fan Combo Features:

• Designed to Fit 1967-1972 Chevrolet & GMC Trucks
• Direct Replacement Bolt-in Radiator, "Looks Like the Original"
• Original Style Stamped Tank
• Made with High-Quality 100-percent Aluminum and Fully Tig Welded
• Crossflow Design
• Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
• Core Width: 28 1/4 in.
• Core Height: 18 3/4 in.
• Core Thickness: 2 1/2 in.
• Overall Dimensions at Widest Point
  • Overall Width: 33 1/2 in.
  • Overall Height: 18 3/4 in.
  • Overall Thickness: 3 in.
• inlet size: 1 1/2 in. Diameter
• Inlet Location: Left/Driver Side Upper
• Outlet Size: 1 3/4 in. Diameter
• Outlet Location: Right/Passenger Side Lower
• Built-in Transmission Cooler
• The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference

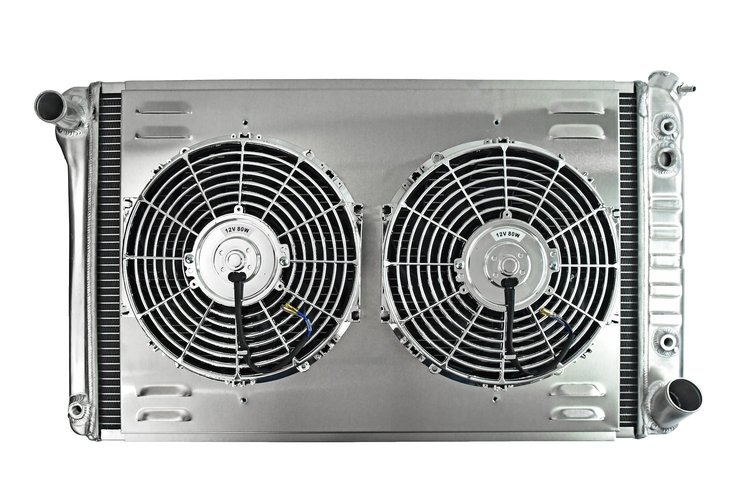

• Includes Dual 1300 CFM 12 in. Diameter Single Blade Electric Fans with Aluminum Fan Shroud
• Fan Installation Requires Wiring Harness and Mounting Screws Which are Not Included and are Available Separately
• Fan Shroud Dimensions:
  • Width: 26 in.
  • Height: 19 in.
  • Thickness: 3 1/2 in.

JEGS 555-511525 Reproduction Aluminum Radiator & Fan Combo Notes:

• Will Work with Automatic or Manual Transmission Applications
• Will also fit 1974 Oldsmobile Delta 88 and 98 with heater return and 1975-1976 Oldsmobile 442 with heater return and no low coolant port.
