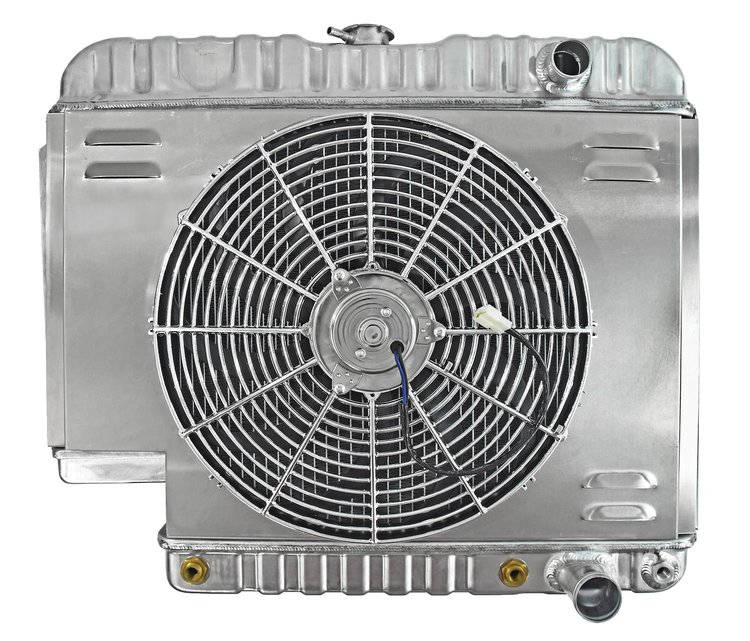

Aluminum Radiator & Fan Combo for Select 1959-1963 Chevrolet Full-Size Cars With Power Steering [16 in. Fan]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511545

Aluminum Radiator & Fan Combo for Select 1959-1963 Chevrolet Full-Size Cars With Power Steering [16 in. Fan]

$40999$450.99You Save$41.00
ShippingShips on 02/17/2027
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

Part Number : 555-10560
$4899$53.99
You Save$5.00

Chevrolet
Aluminum Radiator & Fan Combo
  • 1959-1963 Chevy Bel Air, Biscayne, Del Ray, Impala, & El-Camino
  • With Power Steering
  • 16 in. Single Fan
  • Direct Fitment
  • Improved Cooling Efficency
  • 2-Row 1 1/8 in. High Flow Tubes
  • Aluminum
  • Semi-Polished

    JEGS 555-511545 Reproduction Aluminum Radiator & Fan Combo Features:

    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"

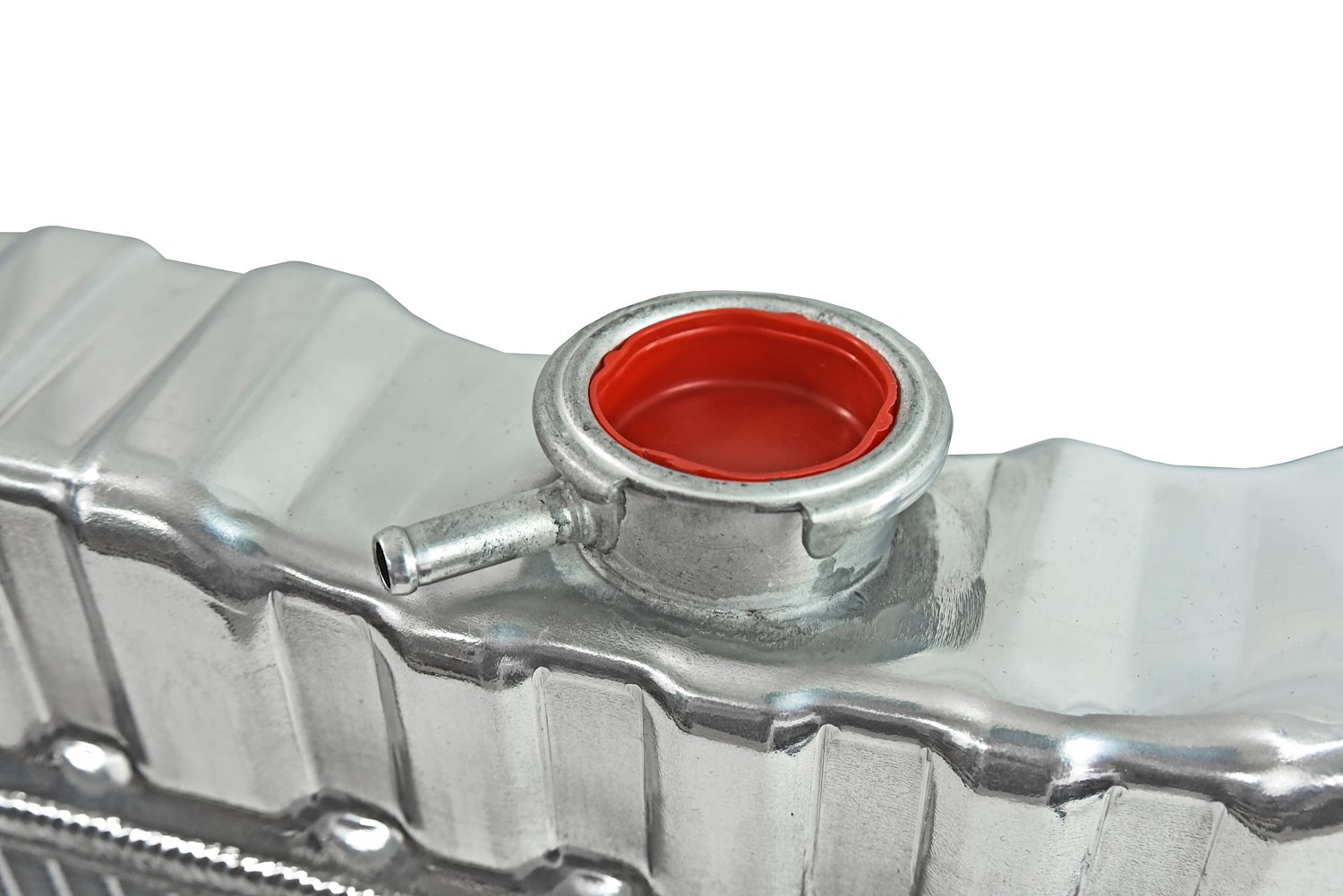

    • Original Style Stamped Tanks and Mounting Brackets
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Double the Capacity of Stock 2-Row
    • Downflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core: 24 in. Wide x 17 in. Tall x 2 1/2 in. Thick
    • Overall Height: 23 in.
    • Overall Width: 28 in.
    • Inlet: 1 1/2 in. Diameter Right/Passenger Side Upper
    • Outlet: 1 3/4 in. Diameter Right/Passenger Side Lower
    • Built-in Transmission Cooler
    • 16 in. Single Fan - 2600 cfm
    • Semi-Polished Finish that Can Be Easily Painted

    JEGS 555-511545 Aluminum Radiator & Fan Combo Notes:

    • Will Work with Automatic or Manual Transmission Applications
    • The Radiator has a 6 in. x 6 in. Cutout at The Bottom to Make Room for Larger Steering Boxes Such as the 500 & 600 Series
  • Performance Cooling for Your Classic Car

    JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.

    JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
    BrandJEGS
    Package Height7.0
    Package Width26.0
    Package Length31.0
    Weight32.0 PG
    Part CategoryReplacement Parts
    Overall Height23 in (584.2 mm)
    Outlet Size1.75 in (44.5 mm)
    Inlet Size1.500 in.
    Fan QuantitySingle
    Radiator Cap IncludedYes
    QuantitySold as a Kit
    Inlet LocationUpper passenger side
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height17 in (431.8 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/4-18 NPT
    Fan Diameter16
    Core Width24 in (609.6 mm)
    Overall Width28 in (711.2 mm)
    Fan IncludedYes
    Transmission CoolerYes
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
