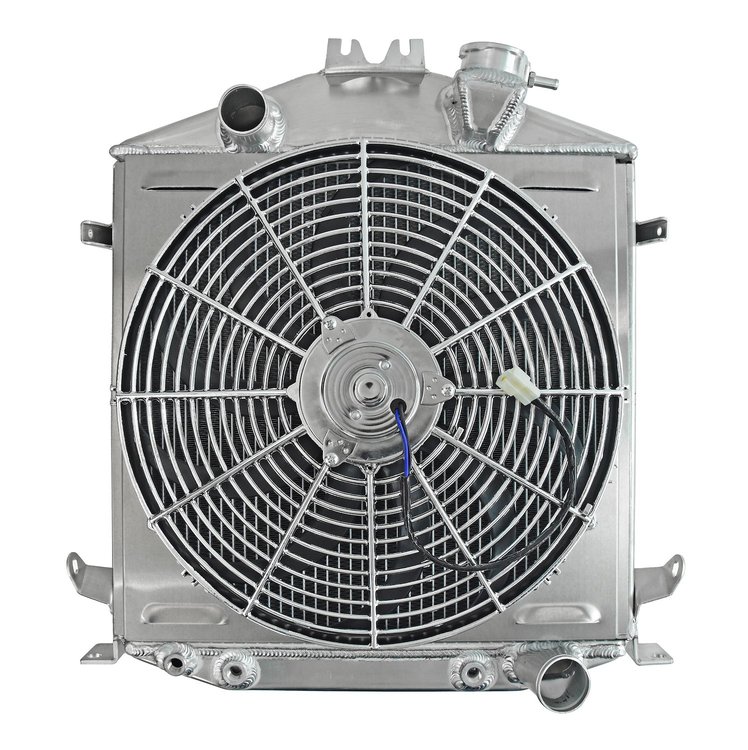

JEGS 511549 Aluminum Radiator & Fan Combo Features:

• Designed to Fit 1928-1931 Ford Model A with Chevrolet V8 Engine Conversion and chopped grill shell
• Direct Replacement Bolt-in Radiator, "Looks Like the Original"
• Original Style Stamped Tanks and Mounting Brackets
• Made with High-Quality 100-percent Aluminum and Fully Tig Welded
• Downflow Design
• Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
• Core Width: 16 1/2 in.
• Core Height: 16 in.
• Core Thickness: 2 1/2 in.
• Overall Dimensions at Widest Point
  • Overall Width: 20 in.
  • Overall Height: 21 1/4 in.
  • Overall Thickness: 4 in.
• Inlet Size: 1 1/2 in. Diameter
• Inlet Location: Left/Driver Side Upper
• Outlet Size: 1 3/4 in. Diameter
• Outlet Location: Right/Passenger Side Lower
• Built-in Transmission Cooler
• The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference
• Includes 2600 CFM 16 in. Diameter Single Blade Electric Fan with Aluminum Fan Shroud
• Fan Installation Requires Wiring Harness and Mounting Screws Which are Not Included and are Available Separately
• Fan Shroud Dimensions:
  • Width: 17 5/16 in.
  • Height: 20 7/16 in.
  • Thickness: 3 1/2 in.

JEGS 555-511549 Aluminum Radiator & Fan Combo Notes:

• Will Work with Automatic or Manual Transmission Applications
