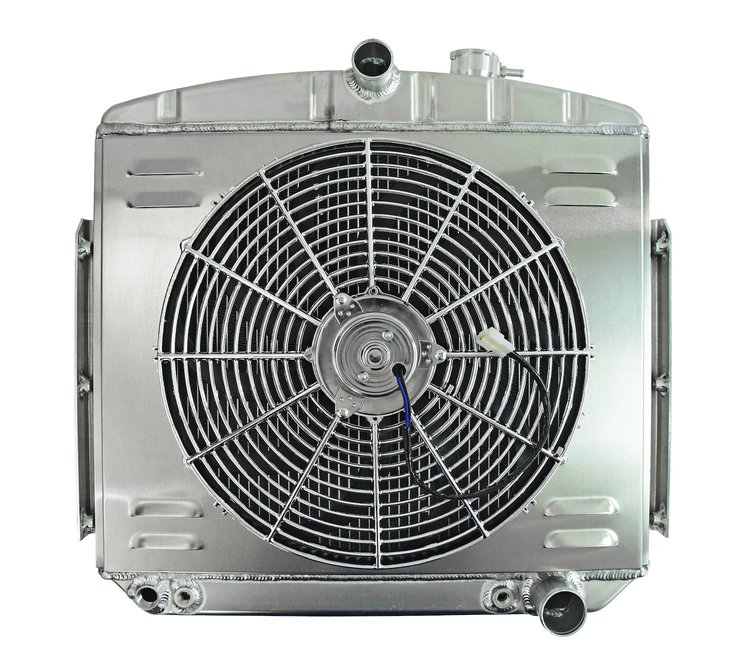

JEGS 555-511551 Reproduction Aluminum Radiator & Fan Combo Features:

• Direct Replacement Bolt-in Radiator, "Looks Like the Original"
• Original Style Stamped Tanks and Mounting Brackets
• Made with High-Quality 100-percent Aluminum and Fully Tig Welded
• Double The Capacity of Stock 2-Row
• Downflow Design
• Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
• Core: 21 in. Wide x 17 1/4 in. High x 2 1/2 in. Thick
• Overall Height: 23 1/2 in.
• Overall Width: 23 1/4 in.
• Inlet: 1 1/2 in. Diameter Upper/Center
• Outlet: 1 3/4 in. Diameter Right/Passenger Side Lower
• Built-in Transmission Cooler
• 16 in. Single Fan
• Semi-Polished Finish That Can Be Easily Painted

JEGS 555-511551 Aluminum Radiator & Fan Combo Notes:

• This Radiator is Designed for 1955-1956 Chevrolet Models, but can also used on 1957 Models. If using on a 1957 Chevy you must notch the center of the hood support to make room for the hose to come out in the center.
• Will Work with Automatic or Manual Transmission Applications
