Fabricated Intake Manifold for 2005-2010 Ford 4.6L 3V
Product Discontinued
JEGSPART NUMBER: 555-513058

Fabricated Intake Manifold for 2005-2010 Ford 4.6L 3V

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Items You Need

Heavy-Duty Nitrile Gloves [7 mils Thick, X-Large]

JEGS

Heavy-Duty Nitrile Gloves [7 mils Thick, X-Large]

Part Number : 555-1125
$1999$21.99
You Save$2.00
Idle Air Control Motor (IAC) & Throttle Position Sensor (TPS) for GM LS

JEGS

Idle Air Control Motor (IAC) & Throttle Position Sensor (TPS) for GM LS

Part Number : 555-14530
$11099$120.99
You Save$10.00
Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

JEGS

Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

Part Number : 555-28030
$799$8.99
You Save$1.00
General Use Shop Rags 25 lb. Bag

JEGS

General Use Shop Rags 25 lb. Bag

Part Number : 555-80183
$5718$63.99
You Save$6.81

Ford

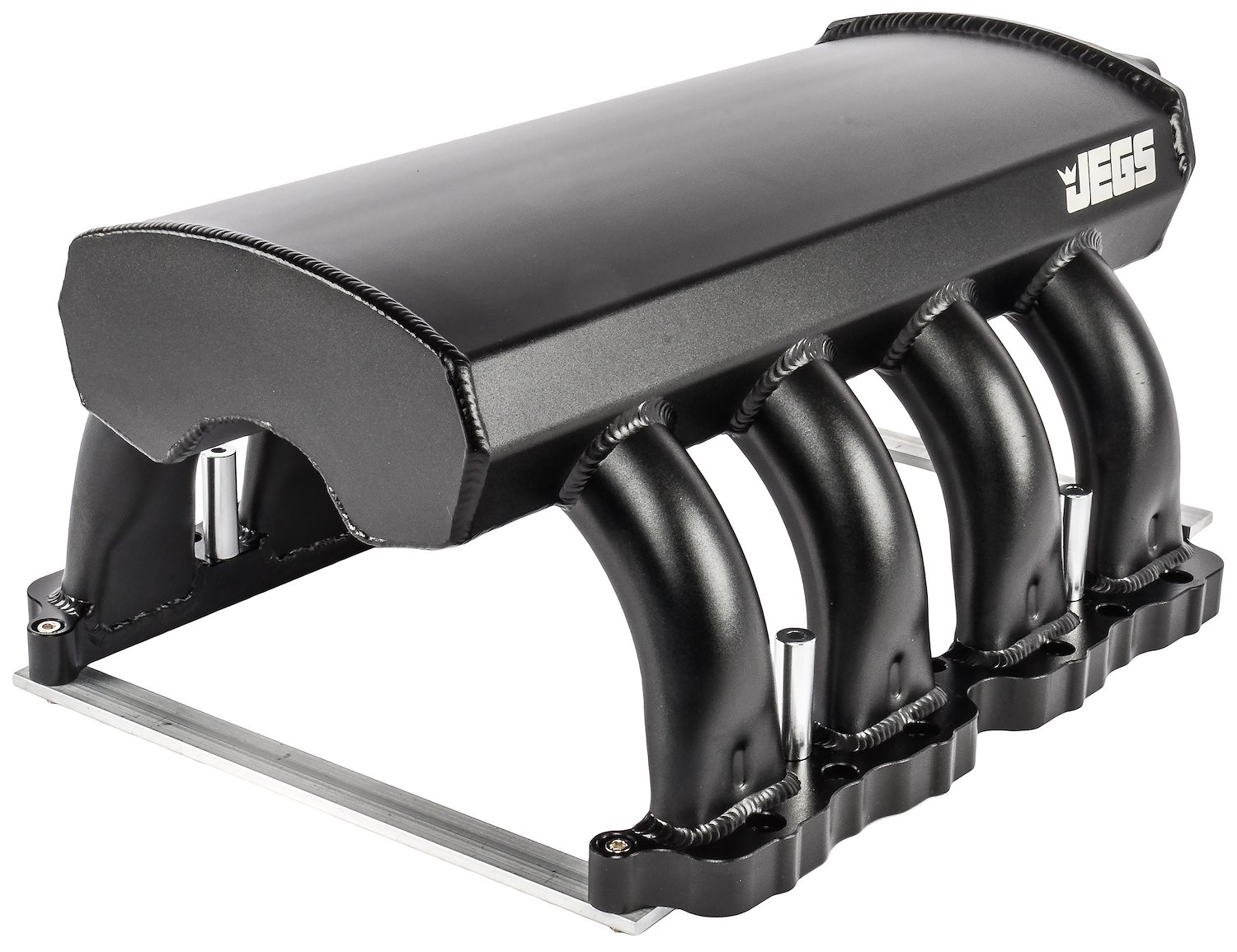

Fabricated Intake Manifold
  • 2005-2010 Ford 4.6L 3V
  • 130mm Throttle Body Opening
  • 2200-6800 RPM Power Band
  • Black with JEGS Logo
  • Includes:
    • Vacuum Port Fittings
    • Fuel Rail Kit
    • Intake Seals
    • Hardware

      Dimensions:

      • Front Height: 9.0625"
      • Rear Height: 8.875"
      • Front Intake Bolt to Intake Front: 4"
      • Rear Intake Bolt to Intake Rear: 0.5"
      • Intake Runner: 1.98" Diameter x 6.5" Long
      • Intake Flange: 1.95" Thick
      • Throttle Body Opening: 133mm x 60.8mm

      Note:

      • Designed for high performance engine applications with maximum engine speeds of 6800-7400 rpm
      • Intended for maximum performance applications and will not accept stock components and hardware
      • A modified hood will be required for most vehicle applications
      • To be used with the Ford factory style 60mm twin bore throttle bodies
      • Includes Vacuum port fittings that will allow the installation of a MAP sensor:
        • (1) 1/8"-28 x 1/4" Hose
        • (1) 1/8"-28 x 5/16" Hose
        • (1)1/8"-28 x 7/16" Hose
        • (1) 1/4"-19 x 1/2" Hose

      Emissions Note:

      This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

      CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Fabricated Airflow for Serious LS Power

      JEGS fabricated intake manifolds for GM Gen III/IV LS engines that deliver the airflow capacity and durability demanded by modern high-performance builds. Constructed from fabricated aluminum for strength and consistent airflow, these manifolds are engineered to support cathedral or rectangular port LS cylinder heads while accommodating large throttle bodies for increased air volume and throttle response. Designed for street, strip, and forced-induction combinations alike, the optimized runner and plenum design helps maintain strong power across a broad operating range while supporting upgraded fuel systems and engine management components. Whether you're building a naturally aspirated performance engine or a boosted LS swap, JEGS fabricated intake manifolds provide the airflow foundation needed for reliable horsepower and consistent performance.

    Part TypeIntake Manifold
    Product LineJEGS GM Gen III/IV LS Fabricated EFI Intake Manifolds
    BrandJEGS
    Package Height14.0
    Package Width16.8
    Package Length22.3
    Weight19.215 PG
    Part CategoryPerformance Parts
    Engine Block StyleStock/OEM standard Deck
    UsageRacing
    Rpm Range2200-6800
    Part FitmentSemi Universal
    Engine Make/SizeFord Modular
    Intake Manifold Height8.8 in (223.52 mm)
    Package Qty1
    Package TypeEA
