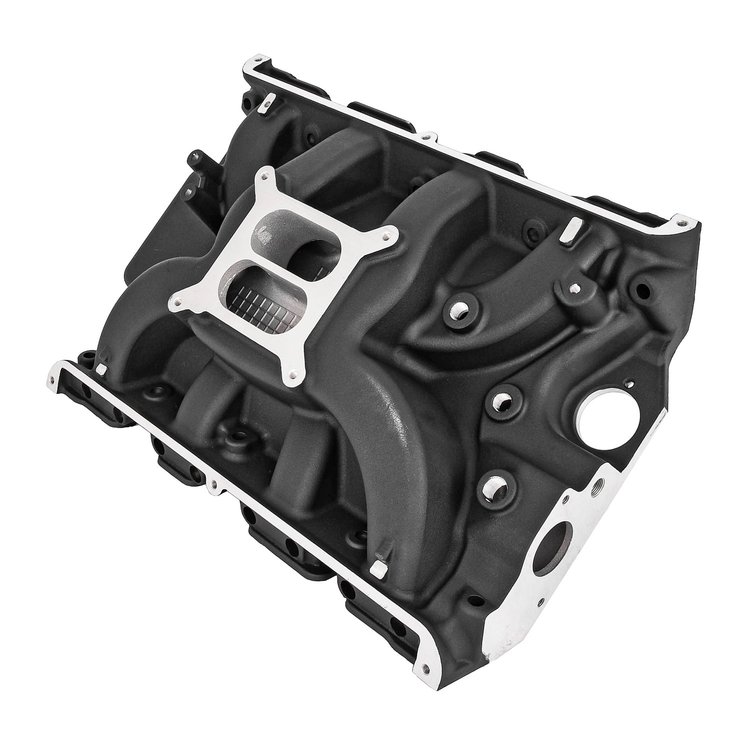

Intake Manifold for Ford 332-428 FE Series Engines, Dual Plane [Black]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-513096

Intake Manifold for Ford 332-428 FE Series Engines, Dual Plane [Black]

$48999$513.99You Save$24.00
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Intake Manifold Gaskets Ford 390GT Medium Riser

JEGS

Intake Manifold Gaskets Ford 390GT Medium Riser

Part Number : 555-210300
$2599$30.99
You Save$5.00
Valve Cover Gaskets Ford FE 352-428

JEGS

Valve Cover Gaskets Ford FE 352-428

Part Number : 555-210370
$2199$26.99
You Save$5.00
4-Barrel Carburetor Base Gasket [Square Flange]

JEGS

4-Barrel Carburetor Base Gasket [Square Flange]

Part Number : 555-16100
$429$4.99
You Save$0.70
Carburetor Installation Kit For: 4150 Style Carburetor

JEGS

Carburetor Installation Kit For: 4150 Style Carburetor

Part Number : 555-16100K
$1613

Ford FE Series Intake Manifolds
Intake Manifold
  • Fits Ford 332, 352, 360, 390, 406, 410 & 428 FE Series Engines
  • Dual Plane
  • 4-BBL Square Bore 4150/4160 Mounting Flange (non-EGR)
  • RPM Range: 1500 to 6500 RPM
  • Cast Aluminum
  • Black Finish

    JEGS 555-513096 Single Four-Barrel Dual-Plane High-Rise Intake Manifold in Black Finish

    Designed for Ford 332-428 FE Series Engines. This intake manifold allows you to use a square-bore 4150/4160 Holley-style carburetor. The dual-plane constant cross-sectional area design builds low-end and mid-range acceleration. This cast aluminum unit makes the perfect intake manifold if you're looking for additional torque and horsepower over a stock four-barrel manifold.

    JEGS 555-513096 Dual-Plane Intake Manifold Features:

    • Fits Ford 332, 352, 360, 390, 406, 410 & 428 FE Series Engines
    • Dual-Plane High-Rise design for optimum fuel distribution
    • Square Bore Holley style 4150/4160 Carburetor bolt pattern

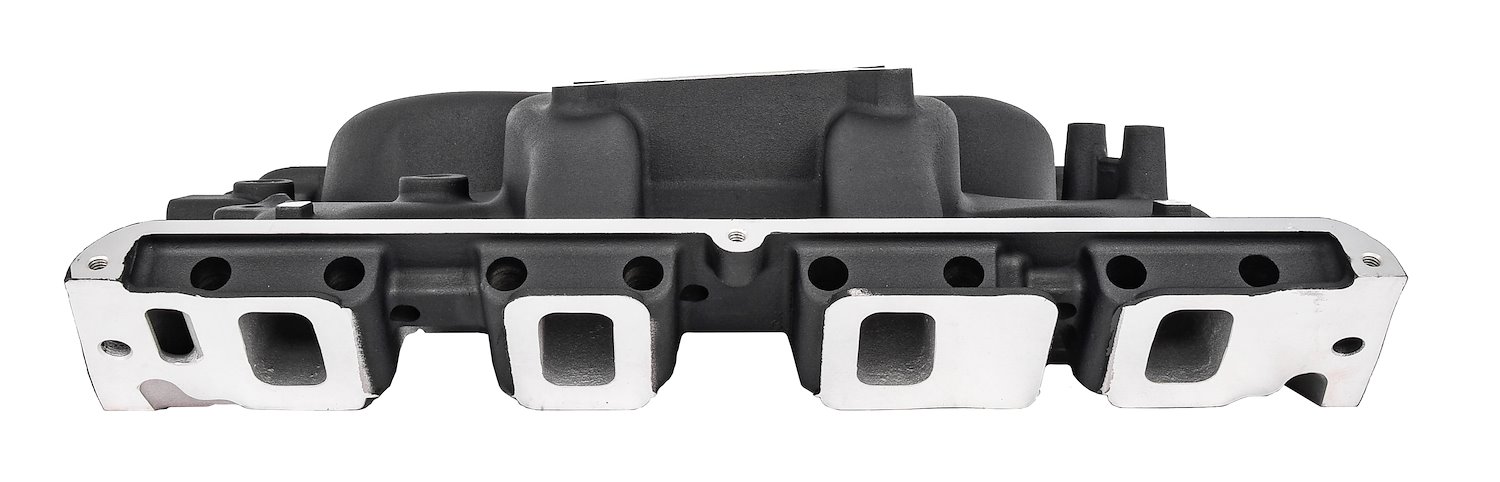

    • Intake port exit dimensions: 1.170 in. W x 1.980 in. H
    • Manifold height: (A) 4.875 in., (B) 6 in. = Carburetor Pad Height: 5.4375 in.
    • Click here to determine Carburetor pad height
    • 1 Front 3/8 in. NPT water outlet port
    • 1 Front 1/2 in. NPT water outlet port
    • 1 Front 3/8 in. NPT vacuum port
    • Accepts factory-style water neck & coolant tubes
    • No exhaust crossover passage
    • Intake gasket port matching is recommended for optimum performance

    Additional Recommended Items (Sold Separately):

    JEGS Carb Recommendations/Notes
    Carburetors
     570 CFM670 CFM770 CFM
    Up to 300 HP300 to 400 HP400 to 500 HP
    Manual Choke 510-0-81570 510-0-81670 510-0-81770
    Electric Choke 510-0-80570 510-0-80670 510-0-80770
    JEGS Carburetor Studs
    555-158401-1/2" StudsSuggested for carb and gasket only
    555-158412" StudsSuggested for carb and 1/2" spacer
    555-158422-1/2" StudsSuggested for carb and 1" spacer
    555-158463-1/2" StudsSuggested for carb and 2" spacer
    JEGS Carburetor Base Gaskets
    555-16100Open
    555-161054-Hole

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Dual-Plane Performance Intake

      JEGS Champion Series 331 Dual Plane Aluminum Intake Manifolds feature the latest machining techniques to ensure the highest-quality performance. The cast aluminum intake manifold construction yields a lighter, more consistent casting for smoother intake runners, optimal fuel atomization, and improved fuel & air distribution to the cylinders—resulting in more power!

    Part TypeIntake Manifold
    Product LineJEGS Champion Series 331 Performance Dual Plane Aluminum Intake Manifolds
    BrandJEGS
    Package Height6.1
    Package Width16.1
    Package Length23.6
    Weight26.5 PG
    UsageStreet/Performance
    Intake MaterialCast Aluminum
    Intake Gasket IncludedNo
    Intake StyleDual plane
    Fuel System TypeCarburetor
    EmissionNon-Emissions
    Port Width1.170 in (29.72 mm)
    Mounting Hardware IncludedNo
    Intake FinishBlack powdercoated
    Carburetor QuantityOne 4-BBL
    Engine Make/SizeFord Big Block
    Port Height1.980 in (50.29 mm)
    Basic Operating Rpm Range1,500-6,500
    EgrWithout EGR
    Rpm Range1500-6500
    Manifold TypeLow/Medium Rise
    Intake Manifold Height5.4375 in (138.11 mm)
    Package Qty1
    Package TypeEA
