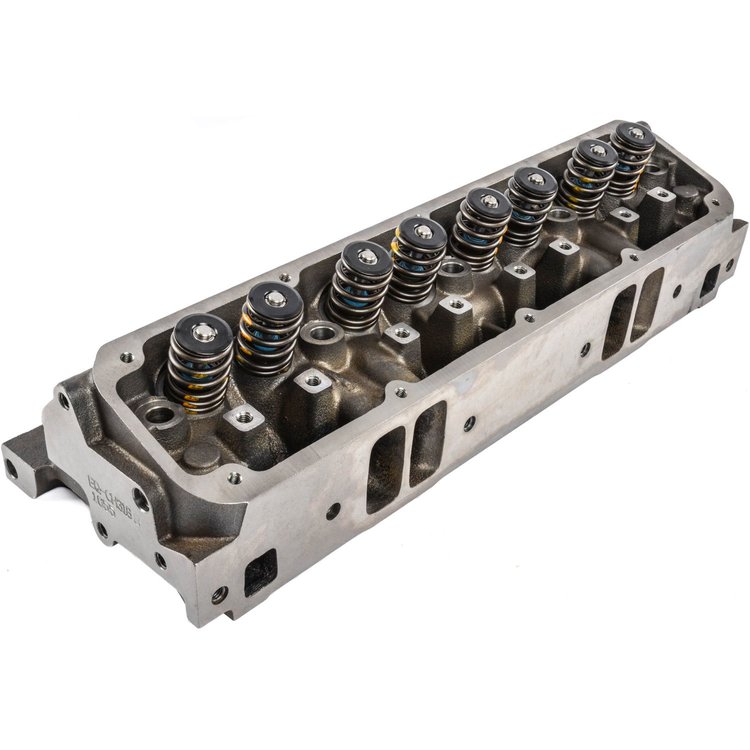

Magnum Cylinder Head Assembly 1992-2001 5.2L Magnum

Name: Magnum Cylinder Head Assembly 1992-2001 5.2L Magnum
Brand: JEGS
SKU: 555-514212
Price: 526.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Magnum Cylinder Heads with "LA" Intake Holes

Magnum Cylinder Head Assembly

1992-2001 5.2L Magnum

1993-2003 5.9L Magnum

1964-91 Small Block Mopar Intake Manifold

EngineQuest #CH318BA

Replaces Mopar 53005714, 53006671, 53020466, 53020468

Includes Valves, Springs, Retainers & Keepers

Note: Outflows stock and Magnum R/T cylinder heads (no longer available from Mopar)

This cylinder head is a stock replacement on 1992-2001 5.2L Magnum and 1993-2003 5.9L Magnum engines. It can also be used on 1964-1991 small block Mopar engines, but must be used with the following conversion parts:

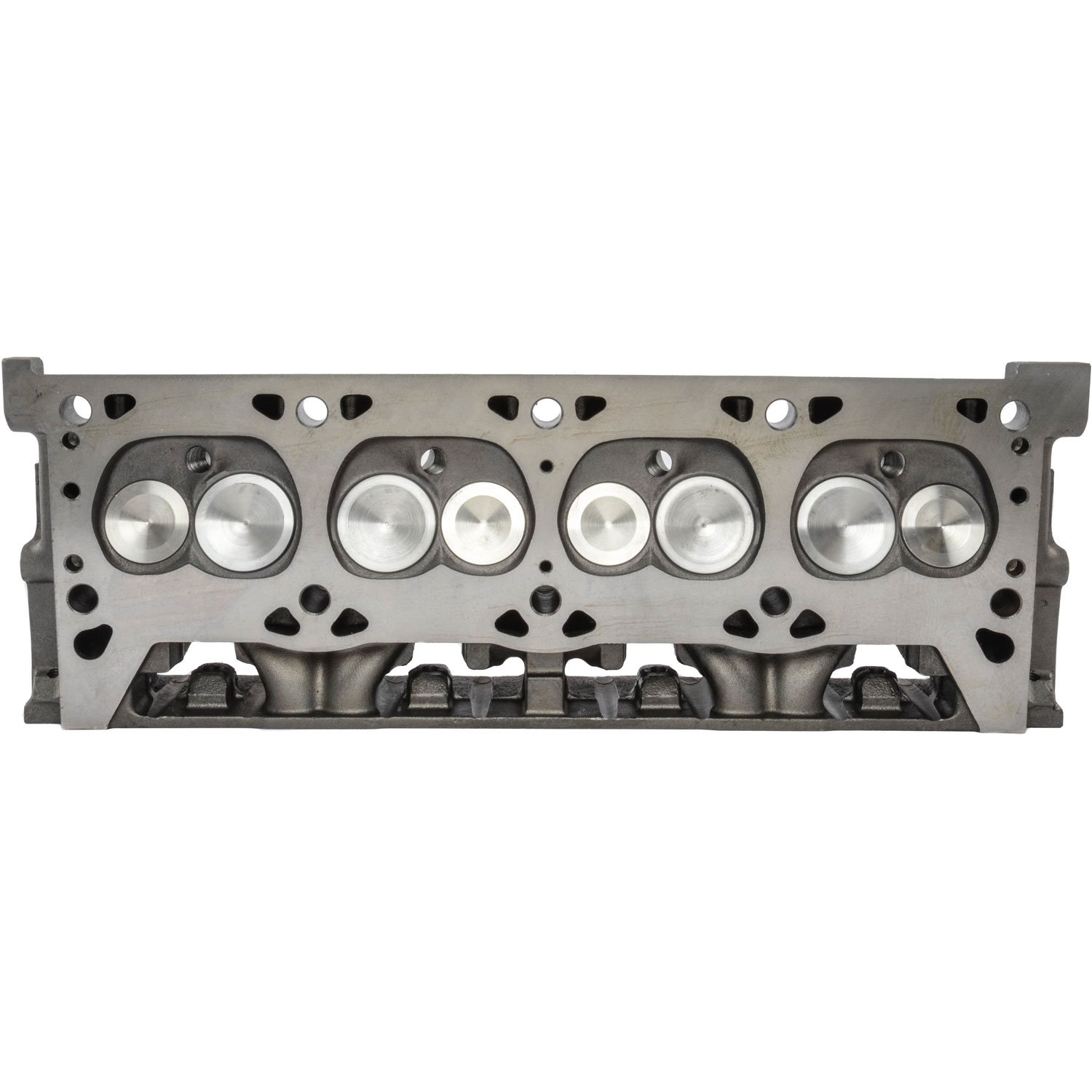

Flat top or dished pistons (small 62 cc closed chamber on head)
10-Bolt Magnum Valve Covers 312-P5007611AB & Gasket 312-P5249660
Magnum Rocker Arms 312-P4876050 (8 required) or Similar
Hollow Tube Style 5/16" Hardened Pushrods (oils heads) with Approx. Length = 7.625"
Hydraulic Flat Tappet Style Camshaft
AMC V8 Style Tappets with Oil Passage (oils heads) 312-P4529220AB or Similar (for hydraulic flat tappet cam only)
1964-1991 Small Block Intake Manifold
Intake Manifold Gasket Set 312-P4876049, 326-615-310, or 350-7277
Head Bolt Set 555-83446

Minor machining may be required for pushrod & rocker arm clearance. The pushrods and tappets must have hollow oil passages since Magnum heads are oiled through these components.

Cast Iron Replacement Heads for Magnum 5.2L/5.9L Engines

Stock Mopar Magnum Cylinder Heads have induction hardened exhaust valve seats that are prone to cracking. To fix the problem, JEGS replacement cast iron Cylinder Heads incorporate stronger exhaust valve seats.

Part TypeCylinder Head

Product LineJEGS Mopar Magnum Cylinder Heads

BrandJEGS

Package Height5.1

Package Width8.1

Package Length22.4

Weight54.93 PG

Part CategoryPerformance Parts

Spark Plug StyleAngled

Guideplate Pushrod SizeN/A

Rocker Arm Nut Thread Size (In.)N/A

MaterialCast Iron
