Note: Outflows stock and Magnum R/T cylinder heads (no longer available from Mopar)

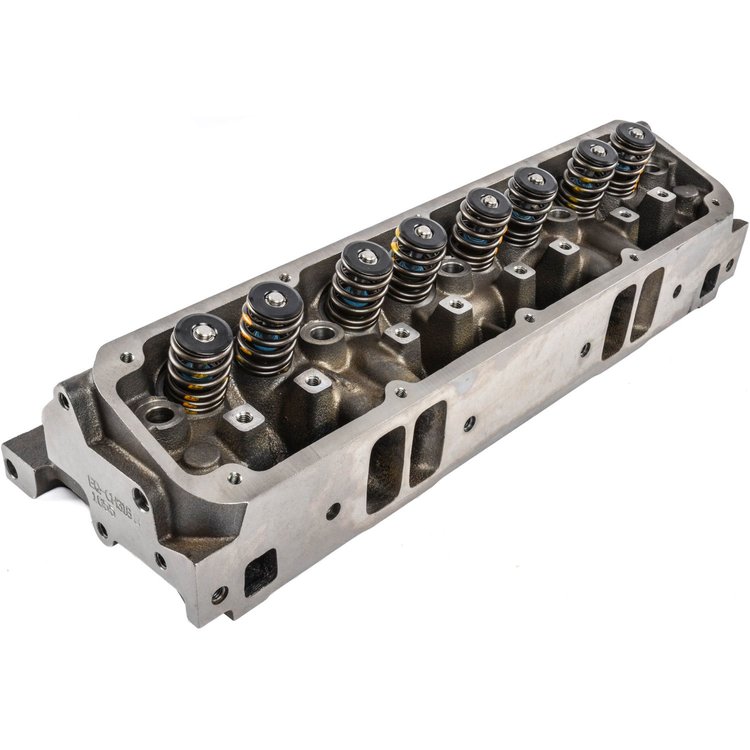

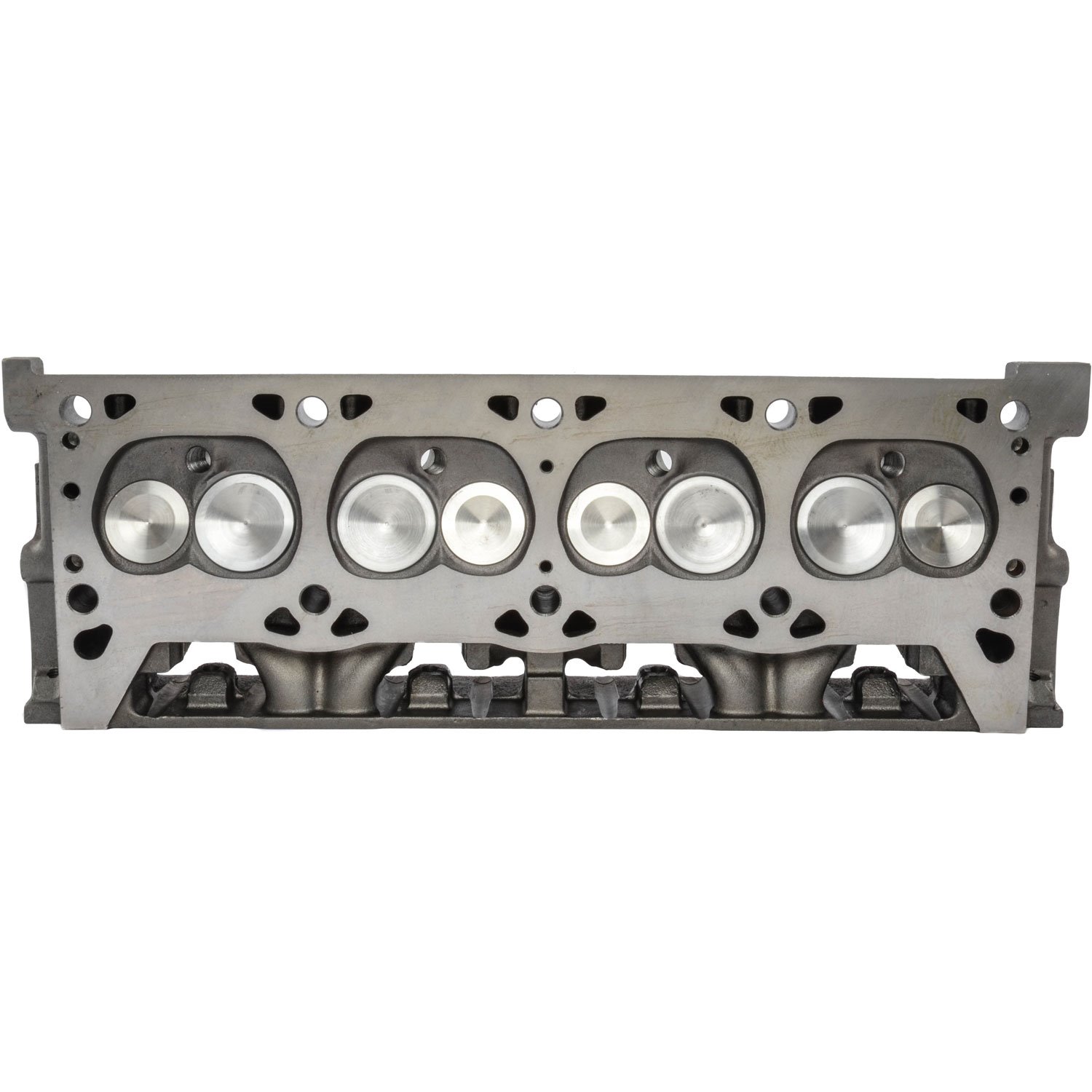

This cylinder head is a stock replacement on 1992-2001 5.2L Magnum and 1993-2003 5.9L Magnum engines. It can also be used on 1964-1991 small block Mopar engines, but must be used with the following conversion parts:

• Flat top or dished pistons (small 62 cc closed chamber on head)
• 10-Bolt Magnum Valve Covers 312-P5007611AB & Gasket 312-P5249660
• Magnum Rocker Arms 312-P4876050 (8 required) or Similar
• Hollow Tube Style 5/16" Hardened Pushrods (oils heads) with Approx. Length = 7.625"
• Hydraulic Flat Tappet Style Camshaft
• AMC V8 Style Tappets with Oil Passage (oils heads) 312-P4529220AB or Similar (for hydraulic flat tappet cam only)
• 1964-1991 Small Block Intake Manifold
• Intake Manifold Gasket Set 312-P4876049, 326-615-310, or 350-7277
• Head Bolt Set 555-83446

Minor machining may be required for pushrod & rocker arm clearance. The pushrods and tappets must have hollow oil passages since Magnum heads are oiled through these components.
