GM 10-Bolt Ring & Pinion with Install Kit 7.5" & 7.625" Diameter Ring Gear

Name: GM 10-Bolt Ring & Pinion with Install Kit 7.5" & 7.625" Diameter Ring Gear
Brand: JEGS
SKU: 555-60009K
Price: 406.55 USD
Availability: InStock

^$406⁵⁵

Ships on 09/10/2026

Lowest Price Guarantee

GM 10-Bolt 7.5" & 7.625"

GM 10-Bolt Ring & Pinion with Install Kit

7.5" & 7.625" Diameter Ring Gear

3.73 Ratio

41-11 Teeth

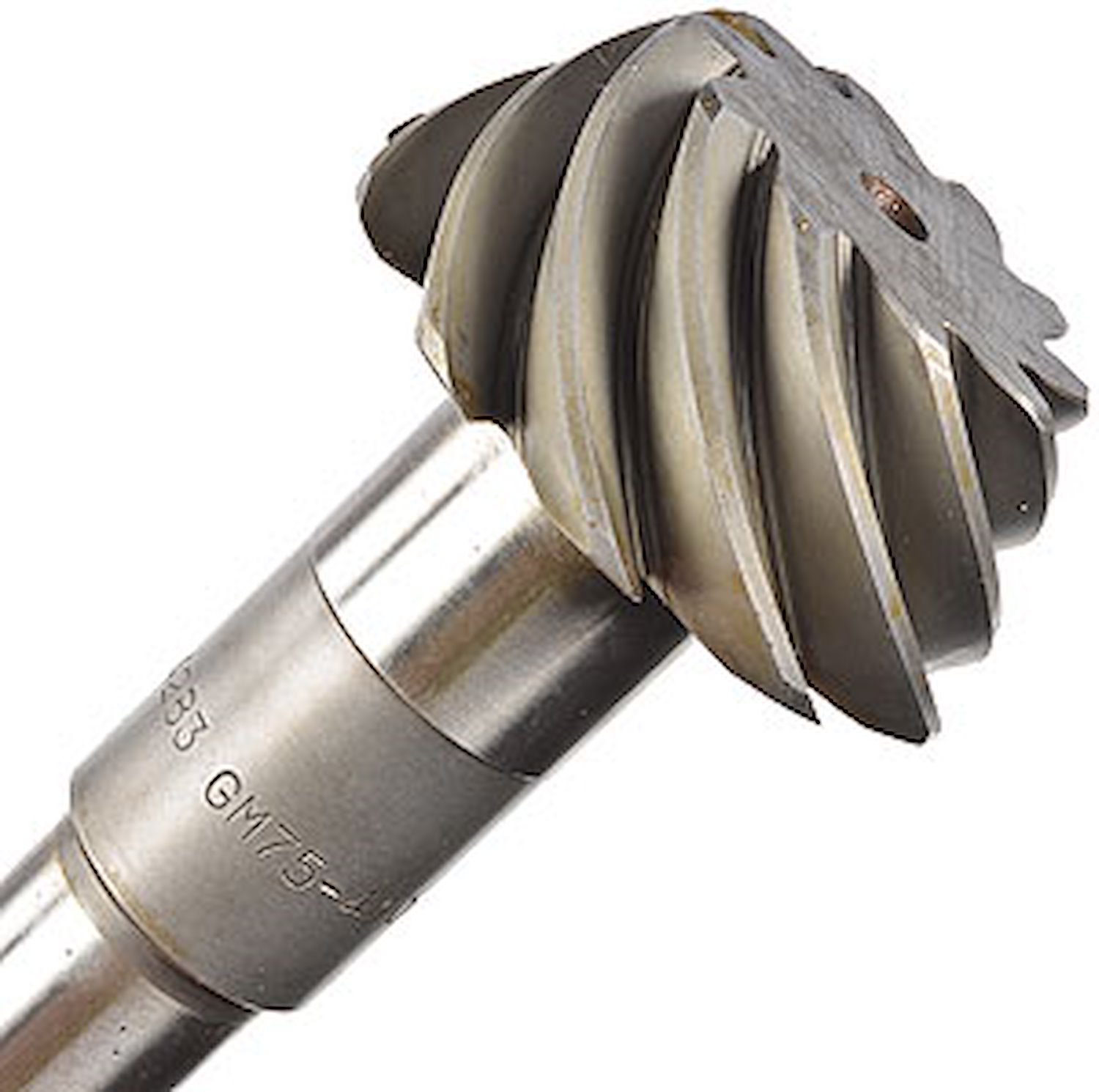

27 Spline Pinion

For 3.23 Ratio and Numerically-Higher Carriers

1.438" Pinion Diameter
27 Spline Pinion
10-Bolt Oval Cover

Fits:

1982-98 GM cars and light trucks with 3.125" head bearing

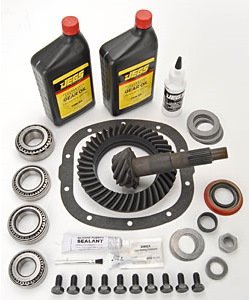

Includes:

Pinion and carrier bearings & shims
Pinion nut & seal
Crush sleeve
Cover gasket or RTV
Ring gear bolts
75W-90 synthetic differential lube (2 quarts)
Limited slip additive (4 ounces)
Thread locker sealant
Marking compound
Application Brush
Installation instructions

With high-quality grade steel to provide durability for street, highway, and occasional race use, JEGS Gear Sets are made utilizing modern machining and heat treating for added strength and miles of trouble-free service.

Also Available: JEGS Ring & Pinion Setup Tool Kit

By having the option to buy a JEGS installation kit with the JEGS gear sets, it has never been easier to install a ring and pinion.
