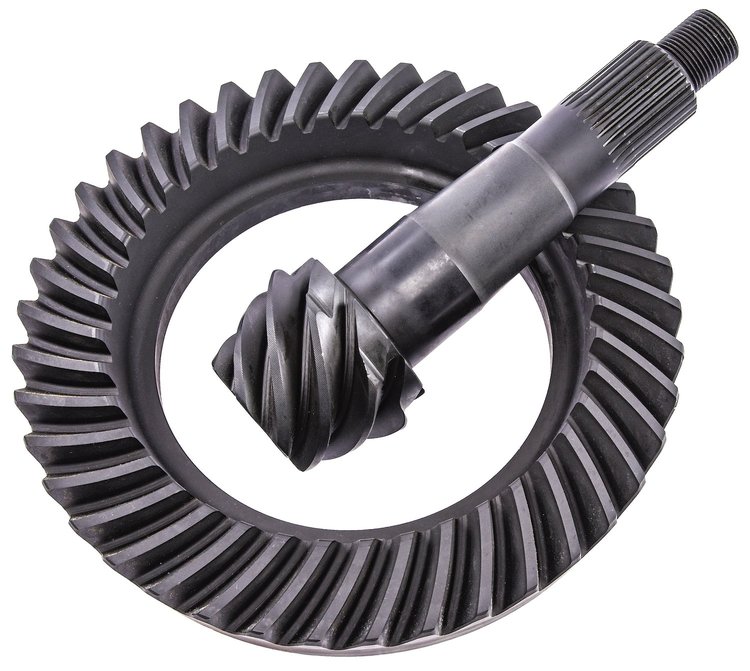

Pro-Race Ring and Pinion for GM 12-Bolt [5.86 Ratio]
Product Discontinued
JEGSPART NUMBER: 555-60070

Pro-Race Ring and Pinion for GM 12-Bolt [5.86 Ratio]

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM 12-Bolt
Pro-Race Ring & Pinion
  • GM 12-Bolt
  • 5.86 Ratio
  • 30-Spline Pinion
  • 41-7 Teeth
  • High Strength 9310 Alloy Steel
  • Not For Street Use

    Includes:
  • RTV Silicone
  • Thread Locker Sealant
  • Marking Compound w/ Brush

    JEGS 60070 Pro-Race Ring & Pinion Gear Set Features:

    • Lightweight, high-quality heat-treated 9310-grade steel
    • Absorbs high impacts
    • Will fit 4.10:1 and numerically higher series carriers

    Also Available: JEGS Ring & Pinion Set Up Tool Kit

    • Part TypeRing and Pinion
    BrandJEGS
    Package Height5.0
    Package Width11.0
    Package Length15.0
    Weight16.205 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Pinion Gear Teeth7
    Differential Case Design TypeGM 8.875 (Car)
    Carrier Series4
    QuantitySold as a set
    Pinion Spline Count30
    Ring Gear Diameter8.875 in (225.4 mm)
    Ring And Pinion Ratio5.86:1
    Pinion Shaft Diameter1.625 in (41.3 mm)
    Installation Kit IncludedNo
    Ring Gear Bolts12
    Cover Bolts12
    Ring Gear Teeth41
    Part FitmentSemi Universal
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
