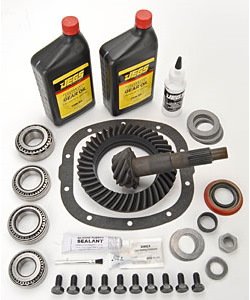

GM 10-Bolt Ring & Pinion with Install Kit 7.5" & 7.625" Diameter Ring Gear
InfoVehicle Info Needed
JEGSPART NUMBER: 555-60071K

GM 10-Bolt Ring & Pinion with Install Kit 7.5" & 7.625" Diameter Ring Gear

$41955
ShippingShips Today
Lowest PriceLowest Price Guarantee

GM 10-Bolt 7.5" & 7.625"
GM 10-Bolt Ring & Pinion with Install Kit
  • 7.5" & 7.625" Diameter Ring Gear
  • 4.56 Ratio
  • 41-9 Teeth

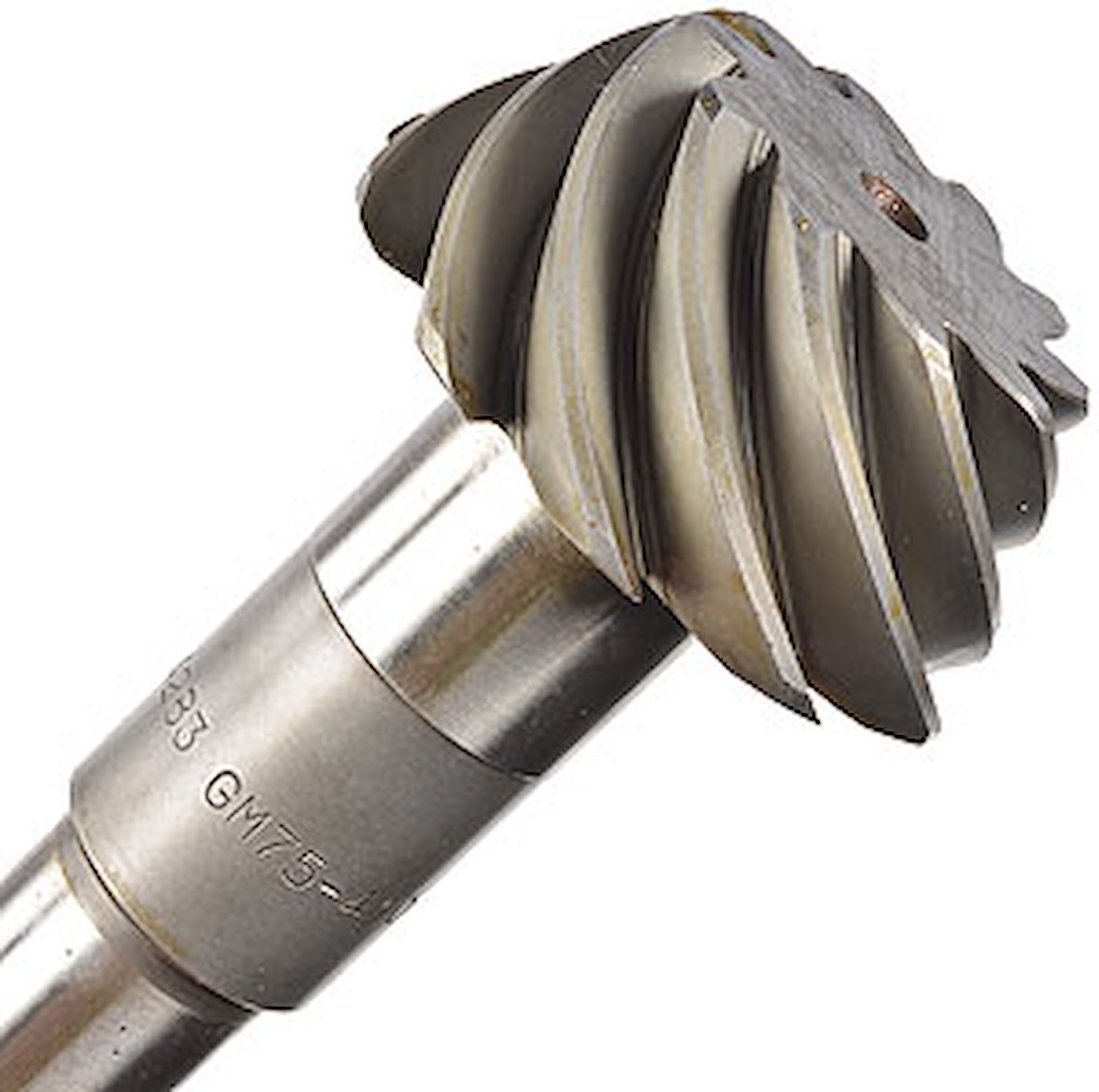

  • 27 Spline Pinion
  • For 3.23 Ratio and Numerically Higher Carriers

    • Utilizes 836-80-0270-1 cross pin (Sold separately)
    • 1.438" Pinion Diameter
    • 27 Spline Pinion
    • 10-Bolt Oval Cover

      Fits:
    • 1982-98 GM cars and light trucks with 3.125" head bearing

      Includes:
    • Pinion and carrier bearings & shims
    • Pinion nut & seal
    • Crush sleeve
    • Cover gasket or RTV
    • Ring gear bolts
    • 75W-90 synthetic differential lube (2 quarts)
    • Limited slip additive (4 ounces)
    • Thread locker sealant
    • Marking compound
    • Application Brush
    • Installation instructions

      • With high-quality grade steel to provide durability for street, highway, and occasional race use, JEGS Gear Sets are made utilizing modern machining and heat treating for added strength and miles of trouble-free service.

      Show More

      Also Available: JEGS Ring & Pinion Setup Tool Kit

      By having the option to buy a JEGS installation kit with the JEGS gear sets, it has never been easier to install a ring and pinion.

    Part TypeRing and Pinion Installation Kit
    Product LineJEGS GM Ring & Pinion Sets and Kits
    BrandJEGS
    Part CategoryReplacement Parts
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
