GM 12-Bolt Car Ring & Pinion 8.875" Diameter Ring Gear
InfoVehicle Info Needed
JEGSPART NUMBER: 555-60080

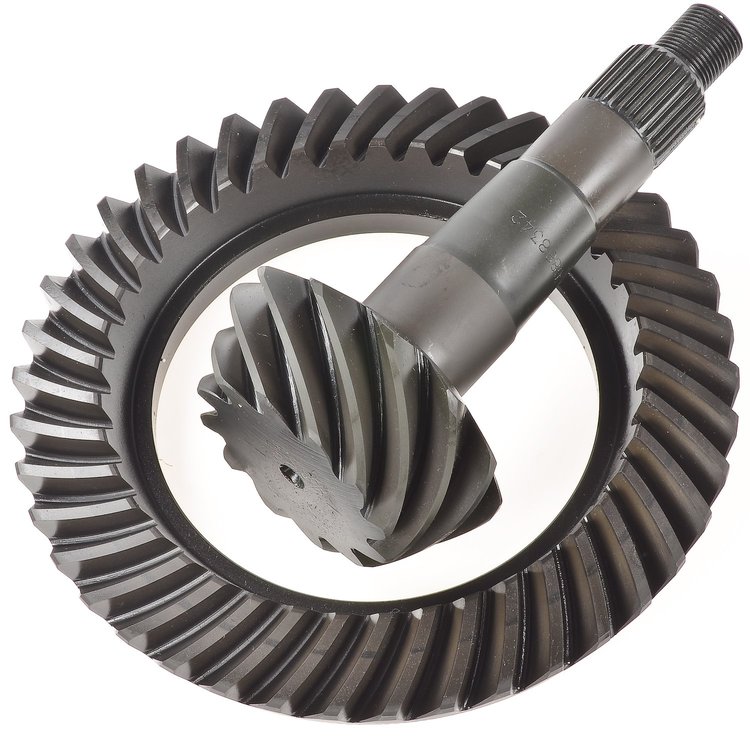

GM 12-Bolt Car Ring & Pinion 8.875" Diameter Ring Gear

$21399$231.09You Save$17.10
4 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

JEGS

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

Part Number : 555-28035
$799$8.99
You Save$1.00
Pressure Bead Gasket Maker Silicone 8 oz

JEGS

Pressure Bead Gasket Maker Silicone 8 oz

Part Number : 555-28045
$1899$20.99
You Save$2.00
75W-90 Multi-Purpose Synthetic Gear Oil [1 Quart]

JEGS

75W-90 Multi-Purpose Synthetic Gear Oil [1 Quart]

Part Number : 555-28050
$1299$14.99
You Save$2.00
Limited Slip Additive [4oz Bottle]

JEGS

Limited Slip Additive [4oz Bottle]

Part Number : 555-60120
$959$10.49
You Save$0.90

GM 12-Bolt Car 8.875"
GM 12-Bolt Car Ring & Pinion
  • 8.875" Diameter Ring Gear
  • 3.42 Ratio
  • 41-12 Teeth
  • 30 Spline Pinion
  • For 3.73 Ratio and Numerically-Lower Carriers
    Includes:
  • RTV Silicone
  • Thread Locker Sealant
  • Marking Compound
  • Brush

    • 1.625" Pinion Diameter
    • 30 Spline Pinion
    • Oval 12-Bolt Hole Cover

      Includes:
    • RTV
    • Thread Locker Sealant
    • Marking Compound
    • Application Brush

      • With high-quality grade steel to provide durability for street, highway, and occasional race use, JEGS Gear Sets are made utilizing modern machining and heat treating for added strength and miles of trouble-free service.

      Show More

      Also Available: JEGS Ring & Pinion Setup Tool Kit

      By having the option to buy a JEGS installation kit with the JEGS gear sets, it has never been easier to install a ring and pinion.

    Part TypeRing and Pinion
    Product LineJEGS GM Ring & Pinion Sets and Kits
    BrandJEGS
    Package Height5.3
    Package Width11.1
    Package Length14.9
    Weight16.9 PG
    Part CategoryReplacement Parts
    Pinion Gear Teeth12
    Pinion Shaft Diameter1.625 in (41.3 mm)
    Carrier Series3
    Axle TypeGM 8.875 in.
    Ring Gear Bolts12
    QuantitySold as a set
    Cover Bolts12
    Ring Gear Teeth41
    Part FitmentDirect Fit
    Pinion Spline Count30
    Vendor Part NumberPVTJEGRPGM12P-342
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
