Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

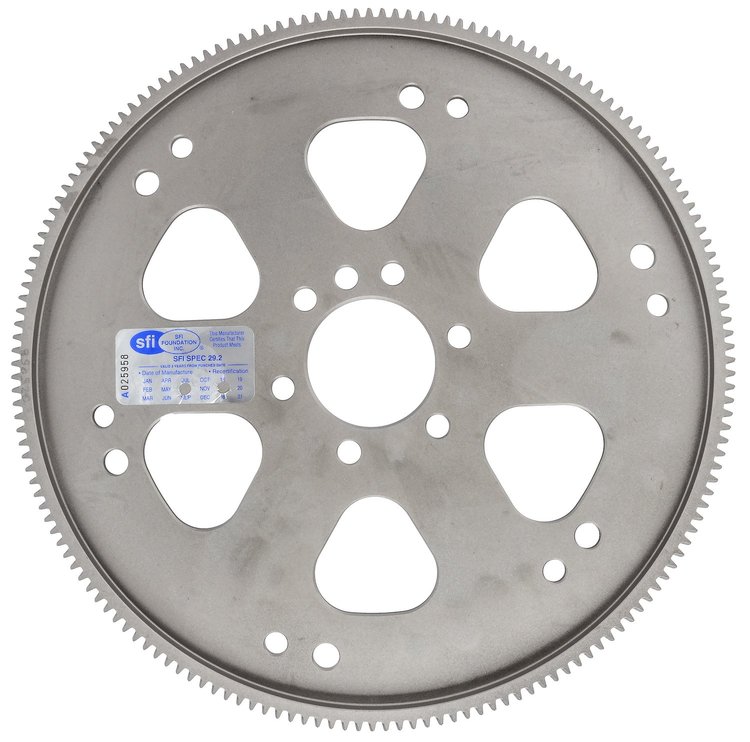

Chevy Flexplate
SFI Billet Steel FlexplateSmall Block & Big Block Chevy 168-tooth Neutral Balanced 2-Piece Rear Main Dual Converter Bolt Patterns 3 on 10.75" & 11.5" Diameter: 14.14" SFI 29.2 Rated
Application information:
- Fits big and small block Chevrolet
- 168 tooth ring gear
- 12 pitch tooth profile
- Neutral balance
- Weighs 6.3 pounds
- Converter pattern 1 - 3 holes 7/16" diameter on 10.75" bolt circle
- Converter pattern 2 - 3 holes 1/2" diameter on 10.75" bolt circle
- Converter pattern 3 - 3 holes 7/16" diameter on 11.5" bolt circle
- Converter pattern 4 - 3 holes 1/2" diameter on 11.5" bolt circle
JEGS Billet Steel Flexplate is obviously the top choice for quality and precision. Machined to exact tolerances from round bar, the manufacturing process ensures the strongest gear tooth, least runout, and the best endurance on the market. Certified to SFI 29.2.
Features:
- 100% machined to .005"
- One piece design
- Proprietary heat treating process
- Chamfered gear tooth for better engagement
Part TypeFlexplate
Product LineJEGS Billet Steel Flexplate
BrandJEGS
Package Height2.3
Package Width16.4
Package Length16.9
Weight8.05 PG
Part CategoryPerformance Parts
Ring Gear Tooth Quantity168-tooth
Flexplate MaterialSteel
Rear Main Seal Style2-piece
Converter Bolt Pattern11.5 in (292.1 mm)
Trans ModelTH350
Safety RatingSFI 29.2
Engine BalanceInternal
Package Qty1
Package TypeEA
