Transmission Dimensions

Transmission Fluid Fill Capacities

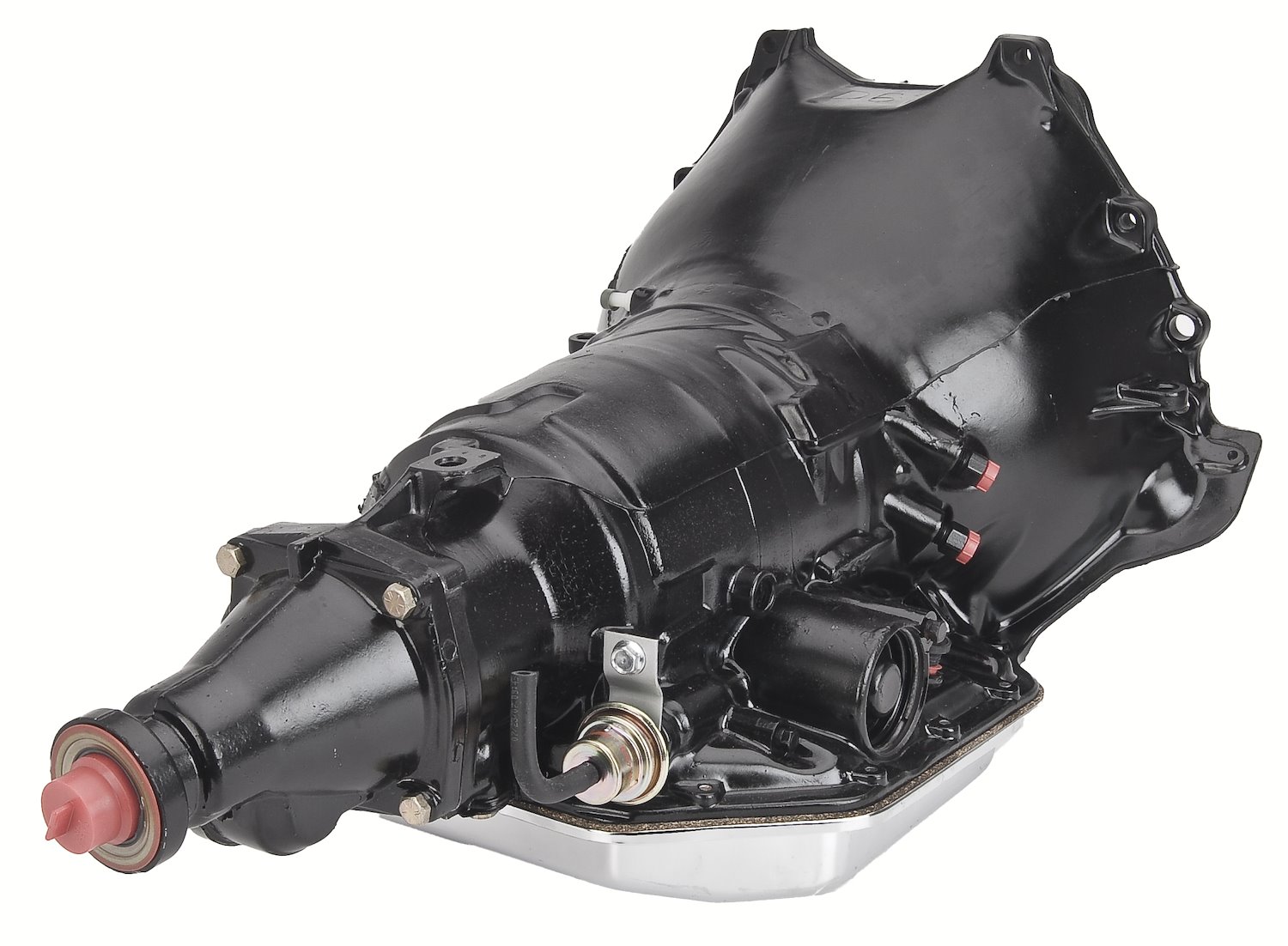

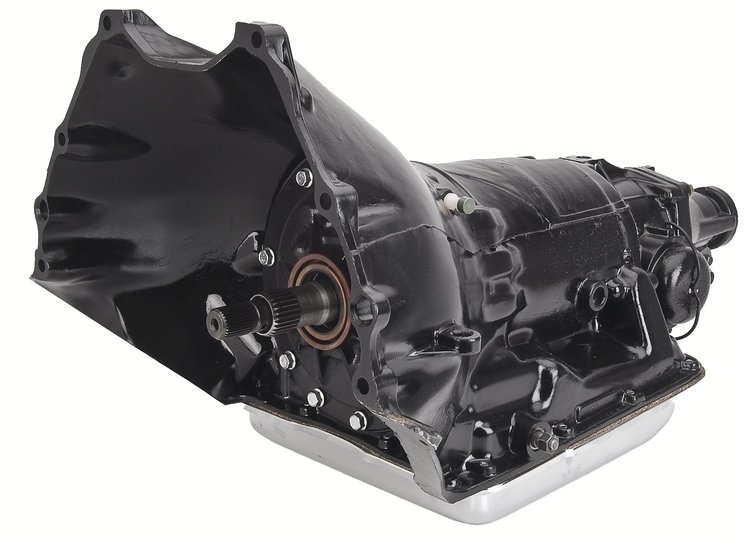

JEGS 555-60305 GM TH350 Performance Automatic Transmission Features:

• Handles Up To 450 HP
• Firm, Crisp Shifts
• Designed to work without a throttle valve or kick-down cable
• Removal of the kick-down block-off plug voids the warranty
• Can be used with adapter 555-60170 to work with the Chevy bolt pattern
• Speedometer drive gear and driven gear not included
• Overall Length: 27 5/8 in.
• Total transmission fluid capacity: 10 quarts
• Transmission fluid service capacity: 4 quarts

JEGS 555-60305 GM TH350 Performance Automatic Transmission IMPORTANT Notes::

• This JEGS Performance Transmission has gone through rigorous testing to provide you with the best possible replacement transmission
• Here are a few tips to ensure a successful installation
• Follow the manufacturer's instructions thoroughly
• Before installation, flush any old fluid from your system, including transmission lines, oil cooler, and torque converter to remove any contaminants that could harm your new transmission
• When installing your torque converter, follow the instructions carefully to ensure proper fitment into the transmission input shaft and also attaching to your engine. Specific tolerances are required so that you do not damage the front pump in the transmission or the converter.
• If you have any problem installing this transmission, before returning it please call the JEGS technical support line. Our experts may be able to assist you with the proper installation.
