Aluminum Bellhousing Kit for 1955-1985 Chevrolet Small Block and Big Block Engines
InfoVehicle Info Needed
JEGSPART NUMBER: 555-60339

Aluminum Bellhousing Kit for 1955-1985 Chevrolet Small Block and Big Block Engines

$24499$269.99You Save$25.00
2 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Automatic Transmission-to-Block Bolt Set for GM Powerglide, TH350, TH400 and 700R4

JEGS

Automatic Transmission-to-Block Bolt Set for GM Powerglide, TH350, TH400 and 700R4

Part Number : 555-82510
$1129$13.99
You Save$2.70
Flywheel Bolts AMC 290-401 V8, Chevy 90-Degree V6, 265-454 V8 with 2-Piece Rear Seal, & Ford 289-460 V8 [High Strength]

JEGS

Flywheel Bolts AMC 290-401 V8, Chevy 90-Degree V6, 265-454 V8 with 2-Piece Rear Seal, & Ford 289-460 V8 [High Strength]

Part Number : 555-601212
$1099$11.99
You Save$1.00
Pressure Plate Bolts, 3/8 in.-16 x 1 in. UHL, 12-Point, Set of 6

JEGS

Pressure Plate Bolts, 3/8 in.-16 x 1 in. UHL, 12-Point, Set of 6

Part Number : 555-601214
$1469$15.99
You Save$1.30
Flywheel for Select 1955-1985 Small Block & Big Block Chevy, 168-Tooth [Internally Balanced]

JEGS

Flywheel for Select 1955-1985 Small Block & Big Block Chevy, 168-Tooth [Internally Balanced]

Part Number : 555-601205
$13999$153.99
You Save$14.00

Bellhousing Kit
Aluminum Bellhousing Kit
  • 1955-1985 Chevrolet Small Block/Big Block Engines
  • GM Standard Trans. Bolt Pattern
  • Includes:
    • Bellhousing
    • Throwout Bearing
    • Clutch Fork
    • Clutch Fork Boot
    • Clutch Fork Pivot
    • Dust Cover and Bolts

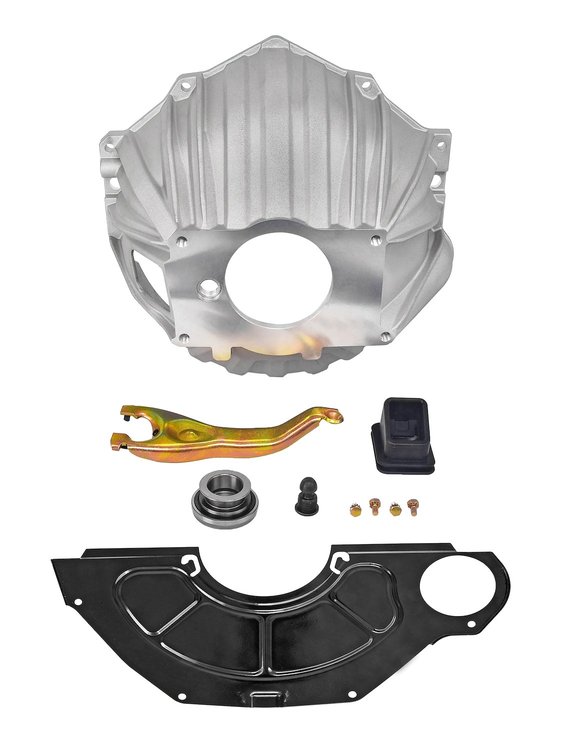

      JEGS 555-60339 Chevrolet Bellhousing Kit Includes:

      • (1) Aluminum Bellhousing for Chevrolet Small Block and Big Block Engines

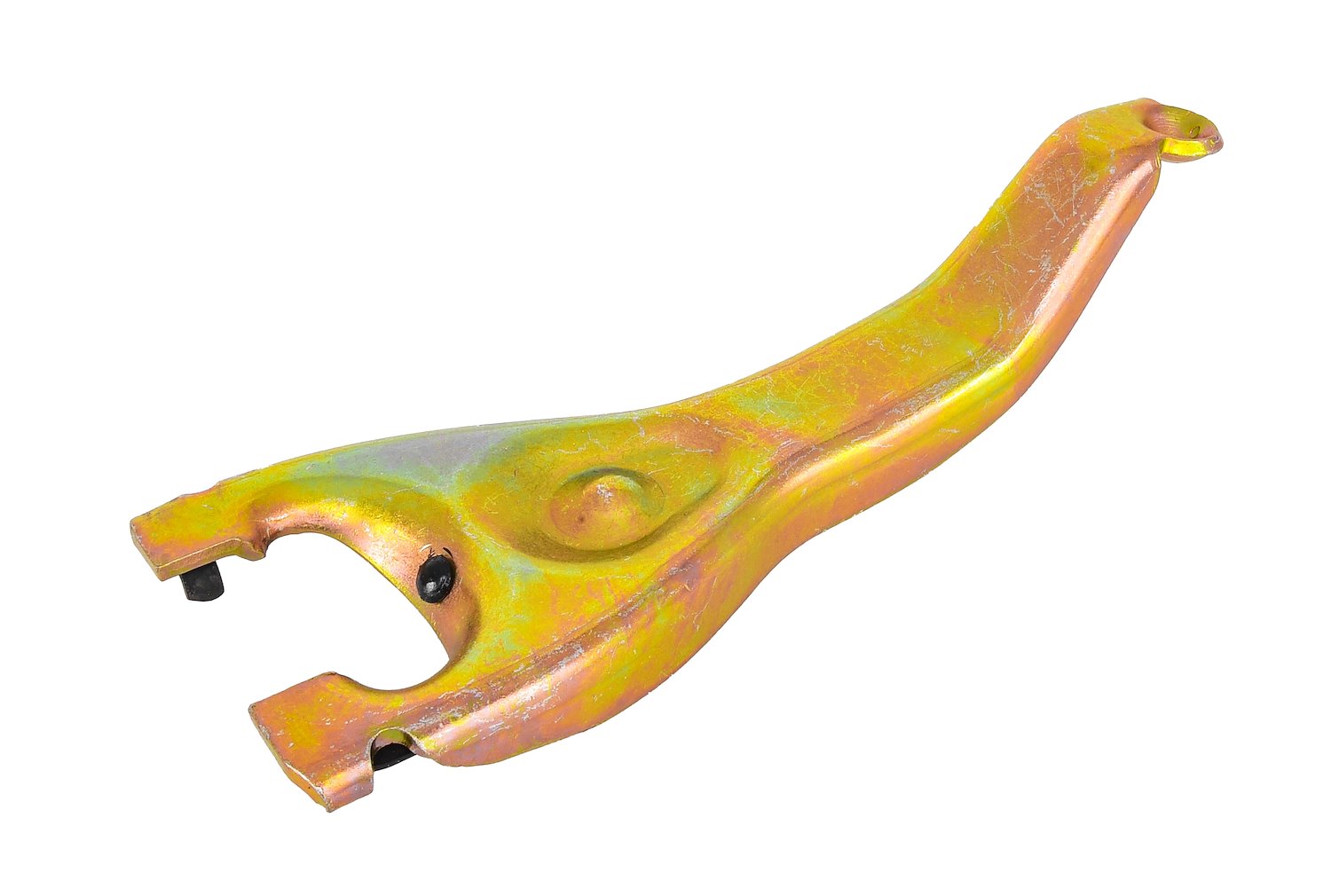

      • (1) Clutch Fork for Chevrolet/GM Applications
      • (1) Mechanical Throwout Bearing for Chevrolet/GM Applications
      • (1) Clutch Fork Boot for Chevrolet/GM Applications
      • (1) Clutch Fork Pivot Ball for Chevrolet/GM Applications
      • (1) Bellhousing Metal Inspection/Dust Cover for Chevrolet Applications
      • (4) 5/16 in.-18 x 3/4 in. Bolts and 5/16 in. Lock Washers

      JEGS 555-60339 Chevrolet Bellhousing Kit Features:

      • This Kit Replaces your Worn or Broken Factory Chevrolet Standard Transmission Bellhousing
      • Designed for use with a Mechanical Clutch Fork and Throwout Bearing Linkage
      • Fits up to 11 in. Diameter Clutch Disc
      • Fits 1955-1985 Chevrolet Small Block
        • 265, 283, 305, 307, 327, 350 Engines
      • Fits 1955-1985 Chevrolet Big Block
        • 396, 402, 454 Engines
      • Accepts 153 or 168-Tooth Flywheel
      • Bellhousing Depth: 6.450 in.
      • Clutch Fork Opening: 2.125 in. x 3.300 in.
      • Bore Diameter for Transmission Front Bearing Retainer: 4.684 in.
      • Factory Style Replacement, Non-SFI Rated
    • OEM-Style Bellhousing and Clutch Linkage Components for Classic Cars

      JEGS designed the GM Clutch Linkage, Components, and Bellhousing Kit to match the factory's original specifications for your classic car to create the perfect fit and function. These parts are easy to install and attach right into place of the factory unit. Don't settle for worn-out or rusted used pieces. If your ride needs just one piece replaced or the entire clutch linkage, our new clutch components will make your vehicle operate like new.

    Part TypeBellhousing
    Product LineJEGS GM Clutch Linkage Components and Kits
    BrandJEGS
    Package Height8.7
    Package Width18.5
    Package Length18.5
    Weight14.2 PG
    Part CategoryReplacement Parts
    Sfi ApprovedNo
    Bellhousing Depth6.45 in (163.83 mm)
    Clutch Fork IncludedYes
    Bellhousing MaterialCast Aluminum
    Part FitmentDirect Fit
    Bellhousing Bore Diameter4.684 in (118.974 mm)
    Flywheel FitmentFits 153 & 168 Tooth Flywheels
    Bellhousing FinishNatural
    Package Qty1
    Package TypeEA
