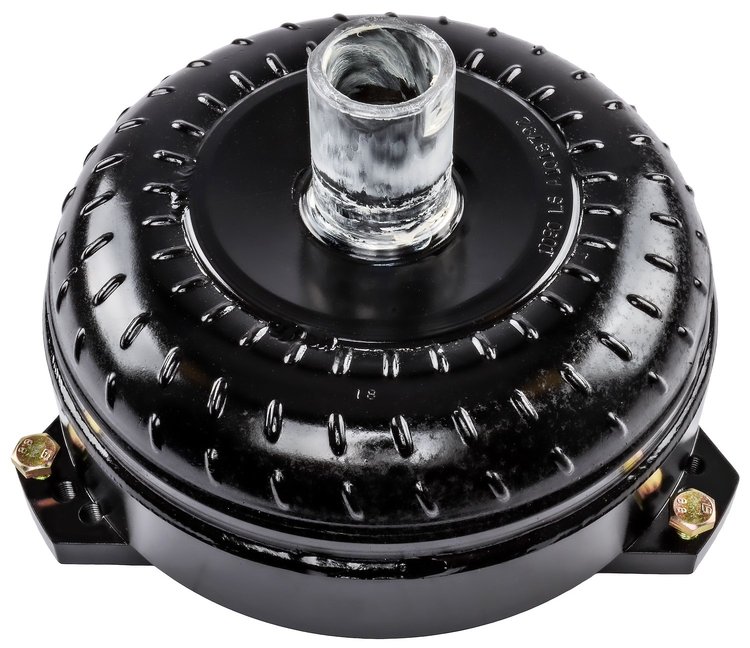

Billet Lock-Up Torque Converter for GM 4L80E, 4L85E LS [2800-3200 RPM Stall]

Name: Billet Lock-Up Torque Converter for GM 4L80E, 4L85E LS [2800-3200 RPM Stall]
Brand: JEGS
SKU: 555-60414
Price: 924.99 USD
Availability: InStock

^$924⁹⁹$1004.99You Save$80.00

4 left in stock

Ships Today

Lowest Price Guarantee

GM 4L80E/4L85E

Billet Lock-Up Torque Converter

Fits GM 4L80E, 4L85E LS Engines

2800-3200 RPM Stall Speed

10 in. Diameter, 35-Spline Input

11.500 in. Bolt Circle, 1.703 in. Crank Pilot

Requires 10mm-1.5 Grade 8 Bolts

Lock-Up Style

Rated to 1400 HP

JEGS 555-60414 GM 4L80E/4L85E LS Billet Torque Converter Features:

Fits GM 4L80E and 4L85E Transmissions Behind LS-Series Engines
2800-3200 RPM Stall Speed
10 in. Diameter
35-Spline Input Shaft
For 2 Step Input Shaft
11.500 in. Flexplate Bolt Circle
1.703 in. Crank Pilot
Billet Front Cover with Oversized Lock-Up Clutch
Extreme Duty Single Disk Lock Up
Hardened Chrome Moly Impeller Hub
Torrington Style Encased Bearings
Modified Extreme Duty Stator
Dual 6.250 in. CNC-Machined Anti-Ballooning Plates for Nitrous, Boost, and Trans-Brake Use
Pump and Turbine Fins Welded or Furnace-Brazed
Precision CNC-Machined Back Cover, Quenched and Hardened
3 Welded Pads with M10-1.5 Threads for Attaching the Converter Bolts
Leak and Pressure Tested
Digitally Balanced
Rated for Use up to 1400 HP

JEGS 555-60414 GM 4L80E/4L85E LS Billet Torque Converter Notes:

All Stall RPMs Will Vary Depending on Engine Set-Up, Vehicle Weight, Gear Ratio, and Tire Height
Direct-Fit Front Cover Bolts an LS Engine to the 4L80E/4L85E Without Adapters or Spacers
Will Not Work with the Extended-Crank 6.0L Flexplate
For Use with Grade-8 Hardware Only
Use Blue Loctite on the Torque Converter Bolts
Use Type F Transmission Fluid for Best Results
An Additional Transmission Cooler is Recommended

High-Performance Street/Strip Torque Converters for Cars and Trucks

JEGS Street/Strip Performance Torque Converters are top-of-the-line products made with high-quality components and assembled using the latest converter technology. Designed to handle up to 500 horsepower, these JEGS Performance Torque Converters are OEM factory-sized, ensuring lower operating temperatures and optimal torque multiplication. They are available for Chrysler/Dodge, Ford, and GM transmissions in various stall ranges to meet your performance requirements. JEGS converters are not designed for nitrous, turbo, or blower applications. JEGS converters are not designed for nitrous, turbo, or blower applications.

JEGS Also Offers These Optional Performance Torque Converters

Part TypeAutomatic Transmission Torque Converter

Product LineJEGS Street/Strip Performance Torque Converters

BrandJEGS

Package Height8.9

Package Width14.0

Package Length14.0

Weight37.25 PG

Anti-Ballooning PlateYes

Part CategoryPerformance Parts

Crank Pilot Diameter1.703 in (43.256 mm)

Flexplate Bolt Circle (In)10.75
