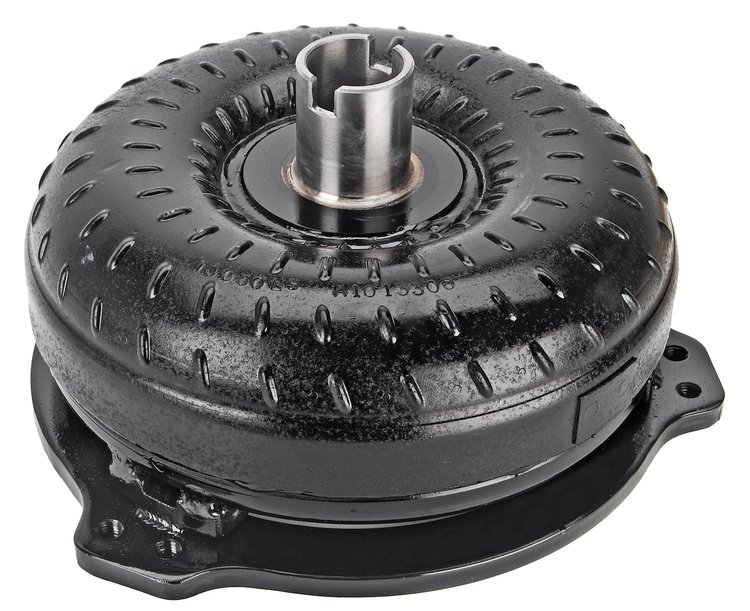

JEGS 555-60435 GM 700R4/4L60 XHD Street/Strip Torque Converter Features:

• Fits GM TH700-R4 and 4L60 Transmissions with a 30-Spline Input
• 2800-3200 RPM Stall Speed
• 298mm Diameter
• 30-Spline 3-Step Input Shaft
• 10.750 in. Flexplate Bolt Circle
• 1.703 in. Crank Pilot
• Extreme Duty Lock Up: The Lock Up is Sealed on the Backside of the Turbine Hub Which Eliminates the Need for an O-Ring on the End of the Input Shaft
• Hardened Chrome Moly Impeller Hub
• Torrington Style Encased Bearings
• Modified Extreme Duty Stator
• No Anti-Ballooning Plate
• Four-Corner Tac-Welded or Furnace-Brazed Fins
• 3 Welded Pads with 3/8-16 Threads for Attaching the Converter Bolts
• Leak and Pressure Tested
• Digitally Balanced
• Rated for Use up to 800 HP

JEGS 555-60435 GM 700R4/4L60 XHD Street/Strip Torque Converter Notes:

• All Stall RPMs Will Vary Depending on Engine Set-Up, Vehicle Weight, Gear Ratio, and Tire Height
• Fits TH700-R4 and 4L60 Only with 3 Step 30-Spline Input Shaft
• Does Not Fit 200-4R or Late 4L60E
• For Use with Grade-8 Hardware Only
• Use Blue Loctite on the Torque Converter Bolts
• Use Type F Transmission Fluid for Best Results
• An Additional Transmission Cooler is Recommended
