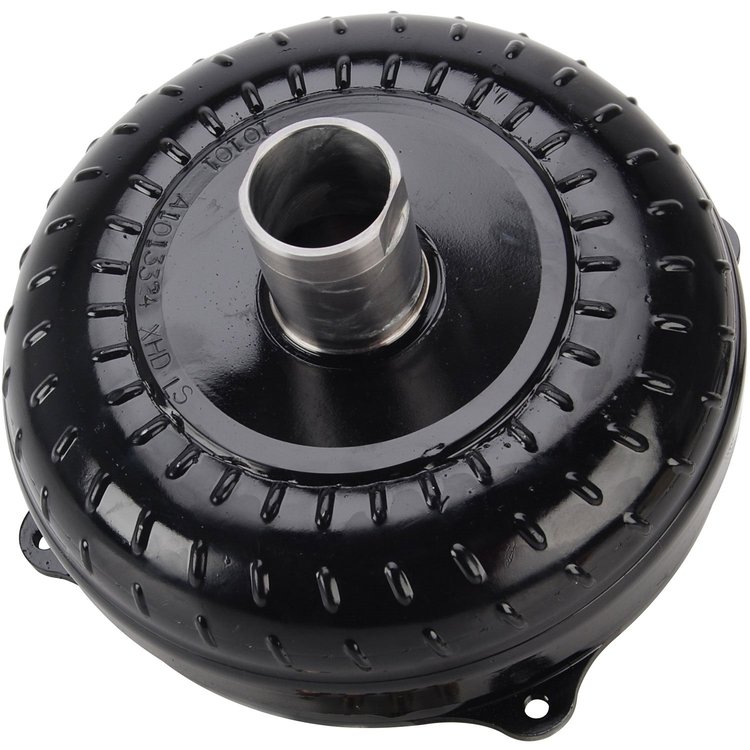

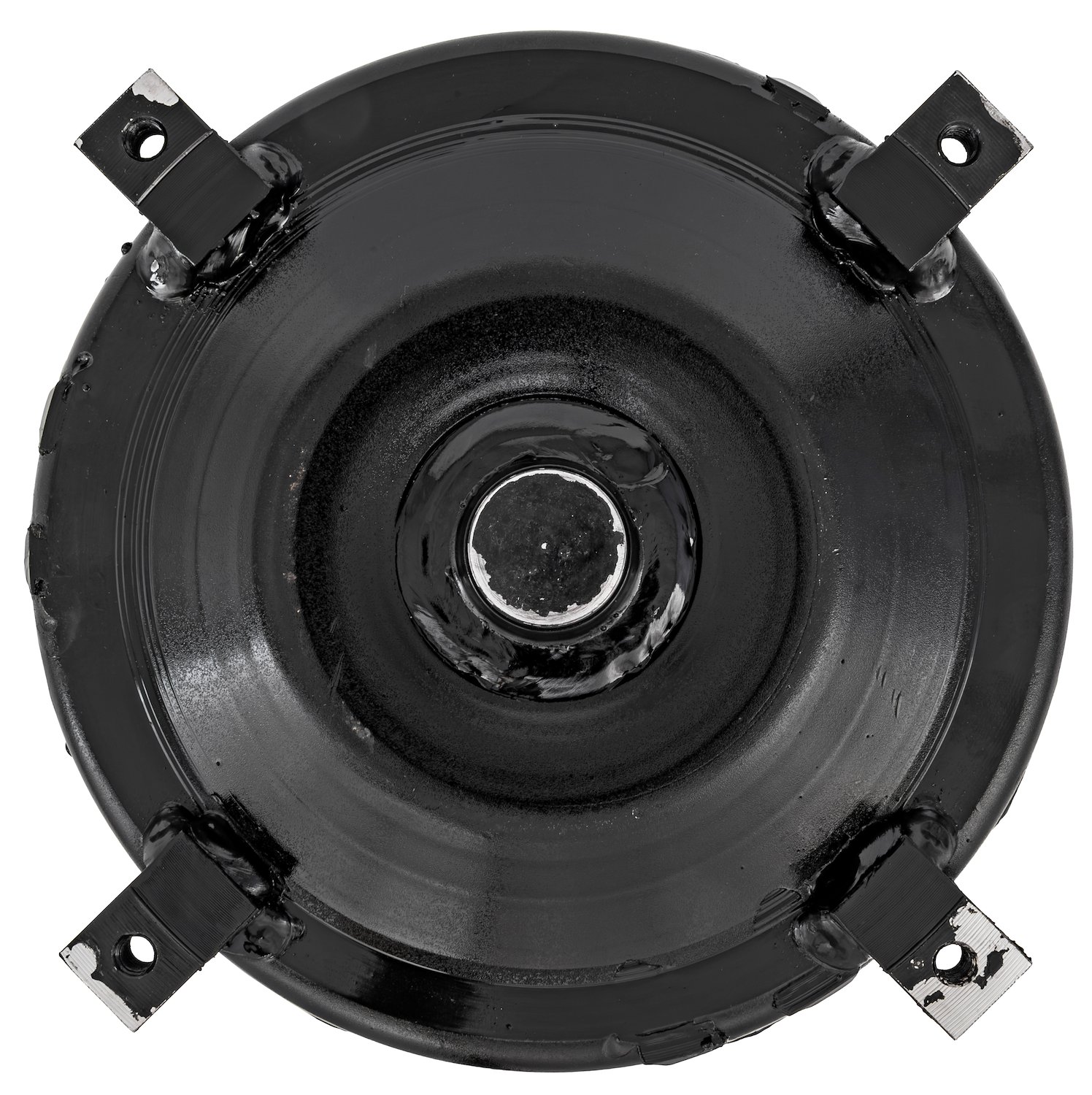

XHD Street/Strip Converter for Ford C4Transmissions [3,400-3,800 RPM Stall Speed]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-60461

XHD Street/Strip Converter for Ford C4Transmissions [3,400-3,800 RPM Stall Speed]

$59599$643.69You Save$47.70
2 left in stock
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

Ford C4
Street/Strip Converter
  • Ford C4 XHD
  • 10 in.
  • Stall Speed: 3,400-3,800 RPM
  • 10.500 in. Bolt Pattern
  • 26-Spline Input Shaft
  • 1.375 in. Crank Pilot

    See Torque Converter Selection Chart Above to Help with Choosing the Correct Converter

    JEGS 555-60461 Street/Strip Converter Ford C4 Features:

    • Performance for street and track use for improved launch and acceleration
    • 3400-3800 rpm stall speed to match your engine and camshaft needs
    • For use with nitrous, blower and trans-brake equipped vehicles
    • Assembled with high-quality materials
    • Chrome Moly Hub and Turbine
    • Three Sets of Torrington Bearings
    • TIG-Welded Furnace-Brazed Fins
    • Precisely-Machined Pilot
    • 6.250 in. anti ballooning plate and billet cover for use with nitrous, blower and trans-brake equipped vehicles
    • Rated at 800 HP
    • Fits case and pan fill units
    • Includes 3/8 in.-24 bolts

    Fluid Capacity Chart

    • Part TypeAutomatic Transmission Torque Converter
    BrandJEGS
    Package Height9.1
    Package Width14.1
    Package Length14.1
    Weight27.5 PG
    Anti-Ballooning PlateYes
    Part CategoryPerformance Parts
    Crank Pilot Diameter1.375 in (34.925 mm)
    Converter Bolt Pattern10.5 in (266.7 mm)
    Horsepower1400
    Transmission Mfr. CodeC4
    MakeFord
    LockupNo
    Part FitmentSemi Universal
    Flash Stall Speed (Rpm)4200
    Diameter10 in (254 mm)
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
