Vehicle Info NeededJEGSPART NUMBER: 555-60593

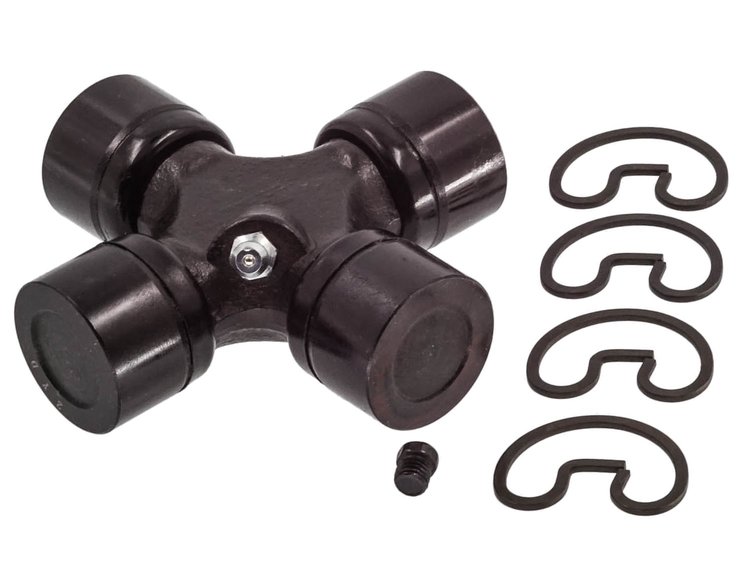

Driveshaft U-Joint Fits Select 1947-2023 Buick, Cadillac, Chevy, Dodge, Ford, GMC, Lincoln, Mercury, Pontiac, Ram Models
$1499$16.99You Save$2.00
5 left in stock
Ships Today
Lowest Price GuaranteeDriveshaft Universal Joints
Driveshaft U-JointFits Select 1947-2023 Buick, Cadillac, Chevy, Dodge, Ford, GMC, Lincoln, Mercury, Oldsmobile, Pontiac, Ram Models Spicer 1350 (SPL30)-Style See Fitment Tab for Full Application Information Sold Individually
JEGS 555-60593 Universal Joint Features:
- Constructed with high-strength materials, these U-joints use chrome-nickel alloy steel for superior resilience
- Designed for enhanced durability, the bearing caps are induction heated and case hardened to withstand increased torque and horsepower
- Optimal sealing is achieved through nitrile rubber seals that ensure premium grease retention and superior resistance to contaminants
- Efficient lubrication is supported by precision grease grooves in the bearing caps and trunnions, enabling even distribution and reduced wear
- For easy installation, the steel is heat-treated to remain flexible, accommodating tight yoke tolerances with minimal effort
Part TypeUniversal Joint
BrandJEGS
Package Height1.25
Package Width4.0
Package Length4.0
Weight1.5 PG
Part CategoryReplacement Parts
Distance Between Opposing Bearing Cap Faces (Mm)92.075 mm
Distance Between Opposing Bearing Cap Faces (In.)3.625 in.
Bearing Cap Axis 2 Diameter (Mm)30.175 mm
PositionDriveshaft
Bearing Cap Type2 Plain Round Bearings
Bearing Cap Axis 1 Diameter (In.)1.188 in.
Grease Fitting LocationBearing
Bearing Cap Axis 1 Diameter (Mm)30.175 mm
TypeSpicer 1350 (SPL30)
Bearing Cap Axis 2 Diameter (In.)1.188 in.
GreaseableYes
Grease Fitting TypeStandard
Snap Ring TypeExternal
Part FitmentDirect Fit
Grade TypePremium-Bearing Greaseable
Snap Rings IncludedYes
Package Qty1
Package TypeEA
