Vehicle Info NeededJEGSPART NUMBER: 555-60640

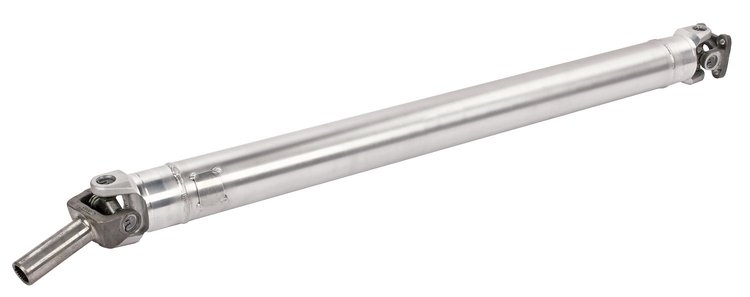

HD Aluminum Driveshaft w/28-Spline Slip Yoke for 1979-1995 Ford Mustang and Mercury Capri w/5.0L and Tremec Transmission
$40599$438.49You Save$32.50
9 left in stock
Ships Today
Lowest Price GuaranteeHeavy Duty Aluminum Driveshafts
HD Aluminum Driveshaft28-Spline Slip Yoke Fits:
- 1979-95 Mustang/Capri 5.0L (w/ T-5/SROD/C-4/AOD Transmissions)
- 1979-93 Mustang/Capri (w/ Tremec Transmissions)
- 7.5" or 8.8" Axles
555-60640 HD Aluminum Driveshaft Features:
- Fits 1979-1995 Ford Mustang and Mercury Capri with t-5/srod/c-4/aod and Tremec transmissions with 28-spline slip yoke connection
- Compatible with 7.500 in. and 8.800 in. axles
- Specifications: 3.500 in. diameter, 0.114 in. wall thickness, 45.500 in. long (measured from the centerline of u-joints on both ends), front u-joint is 1330, and rear u-joint is 1310/1330 conversion joint
- Balanced from the factory, ready to install
JEGS Heavy Duty Aluminum Driveshafts for the Mustang reduce rotating mass for better acceleration. These driveshafts are made from high strength 3-1/2" diameter seamless aluminum tube with a 0.114" wall thickness. Driveshafts are fully balanced and assembled with u-joints and slip yokes for an easy direct bolt-in installation. Length 45.5" Long (Centerline to Centerline of U-Joints).
Part TypeDrive Shaft
Product LineJEGS HD Aluminum Mustang Driveshafts
BrandJEGS
Package Height5.5
Package Width5.5
Package Length55.0
Weight15.3 PG
Part CategoryPerformance Parts
PositionRear
Driveshaft MaterialAluminum
Transmission Yoke IncludedYes
Overall Length45.5 in (1155.7 mm)
AssembledYes
Spline Count28
Differential Joint Style1330 U-joint
Transmission Joint Style1330 U-joint
Driveshaft StyleOne-piece
HorsepowerUp To 500
BalancedYes
Differential Yoke IncludedNo
Part FitmentDirect Fit
Diameter3.5 in (88.9 mm)
Package Qty1
Package TypeEA
