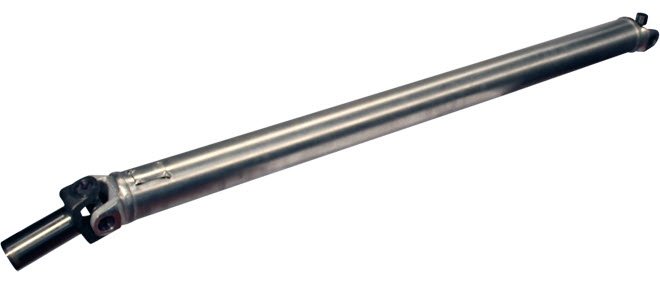

The JEGS 555-60647 is a one-piece aluminum rear driveshaft built for 1967-1969 Chevrolet Camaro and Pontiac Firebird models backed by a TH350 automatic transmission. It swaps in place of the factory steel shaft, trimming rotating weight while the 3 in. aluminum tube stands up to the added torque of a built small-block or big-block. Every shaft arrives assembled and balanced with the transmission yoke already installed, so it is ready to bolt in once the rear U-joint straps or U-bolts are secured to the pinion yoke.

JEGS 555-60647 1967-1969 Camaro, Firebird TH350 Aluminum Driveshaft Features:

• Fits 1967-1969 Chevrolet Camaro and Pontiac Firebird with a TH350 automatic transmission
• 3 in. O.D. 6061T aluminum tubing with a .125 in. wall reduces rotating mass compared to a stock steel driveshaft
• 49.813 in. length, measured from U-joint center to U-joint center
• 1310 series U-joints at both the transmission and differential ends

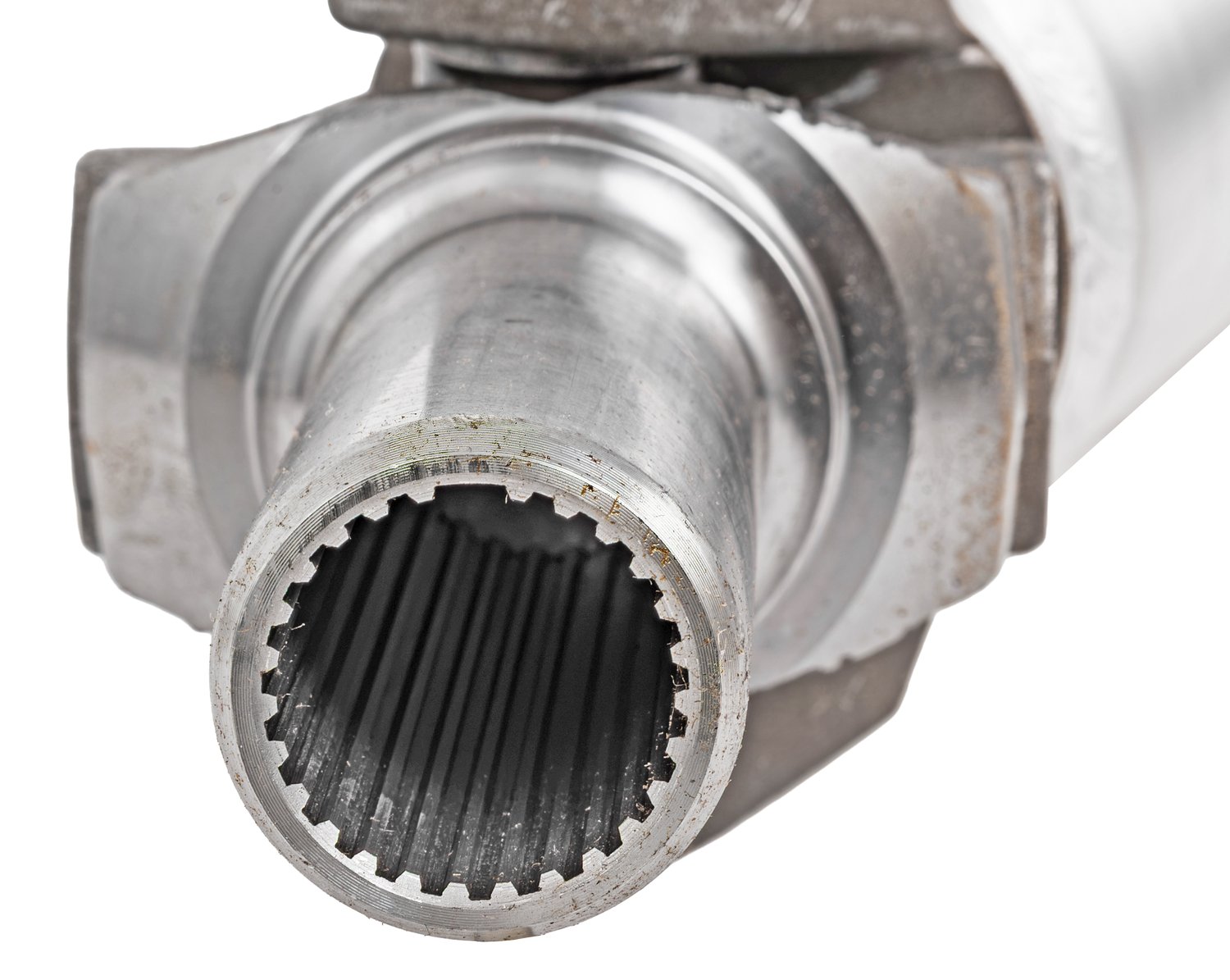

• 27-spline slip yoke matches the TH350 output shaft and comes installed
• One-piece design with no center support bearing to service
• Balanced and fully assembled at the factory for smooth, vibration-free operation

JEGS 555-60647 1967-1969 Camaro, Firebird TH350 Aluminum Driveshaft Notes:

• Differential (pinion) yoke is not included; the rear U-joint requires a 1310 series pinion yoke
• Length is based on the factory TH350 and rear axle location; confirm your measurement if the drivetrain has been modified
