Muilt-Make Steering Boxes

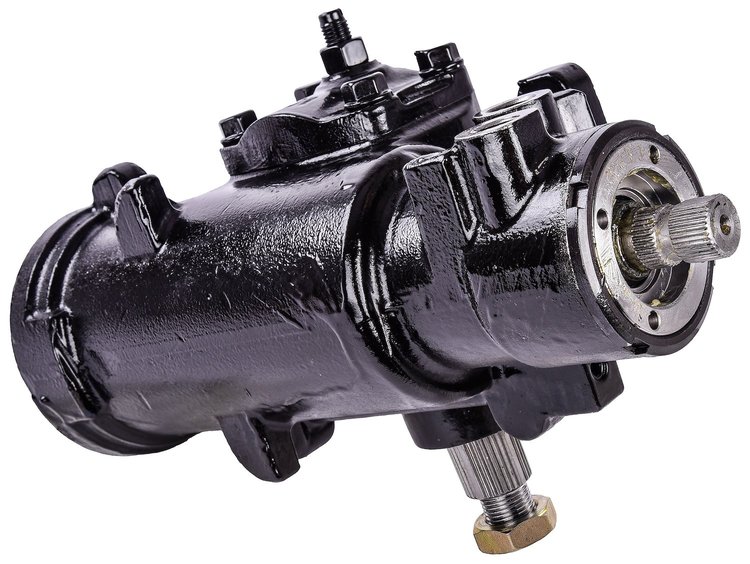

Power Steering Gear Box
  • 1977-1979 GM C Series Trucks
  • 1978-1979 Dodge D/W Series Trucks
  • 3.4 Turns Lock to Lock
  • Variable Steering Ratio: 12.77:1-15.39:1
  • 3/4 in.-30 Spline Input Shaft with Flat & Groove
  • Black Painted Finish

    JEGS 60764 pre-lubed Power Steering Box for select 1977-1979 GM C-Series and 1978-1979 Dodge D/W-Series trucks is a direct replacement upgrade that will require a (32-spline plus four master splines) pitman arm for your application. This variable ratio steering box assists in cornering and highway driving, allowing for a quicker steering ratio with more steering angle input and a slower steering ratio for straight-line driving; for a more gentle drive.

    Features:

    • Cast iron construction
    • (4) Mounting holes (Thread size: 3/8 in.-16)

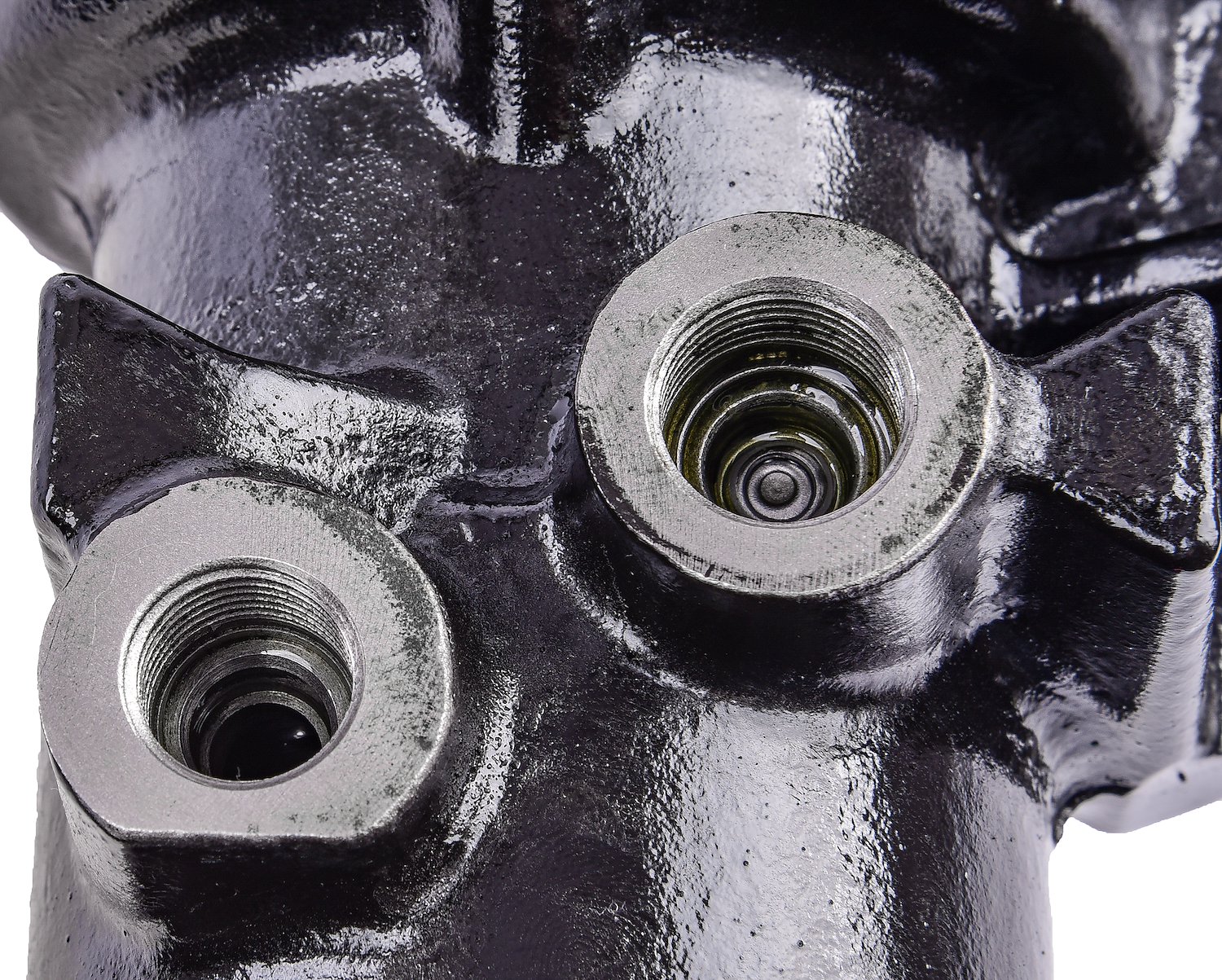

    • Pressure port thread size: 11/16 in.-18
    • Return port thread size: 5/8 in.-18
    • 1 1/4 in.-32 spline pitman shaft w/ 4 master splines

    Includes:

    • (1) Pitman shaft nut
    • (1) Pitman shaft lock washer

    Replacement for Part Number(s):

    • 19321314
    • 27-7512
    • 1248

    Vehicle Fitment:

    • 1977-1979 Chevy C10 Truck/Suburban
    • 1977-1979 Chevy C20 Truck/Suburban
    • 1977-1979 Chevy C30 Truck
    • 1978-1979 Dodge D100 Truck
    • 1978-1979 Dodge D200 Truck
    • 1978-1979 Dodge D300 Truck
    • 1978-1979 Dodge Ramcharger
    • 1978-1979 Dodge W150 Truck
    • 1978-1979 Dodge W200 Truck
    • 1978-1979 Dodge W300 Truck
    • 1977-1978 GMC C15 Truck/Suburban
    • 1979 GMC C1500 Truck/Suburban
    • 1977-1978 GMC C25 Truck/Suburban
    • 1979 GMC C2500 Truck/Suburban
    • 1977-1978 GMC C35 Truck/Suburban
    • 1979 GMC C3500 Truck/Suburban
    • 1977-1979 GMC Jimmy
    • 1978-1979 Plymouth Trailduster
    • Replacement OEM-Style Steering Components

      JEGS all-new Steering Boxes are ideal for race cars, street rods, and vintage rides. Our Steering Boxes allow you to enjoy responsive steering for a superb road feel. An all-new case and internal components eliminate the sloppiness associated with most remanufactured steering units, giving you smooth-yet-firm operation. Replace your worn or inferior steering box with a high-quality steering unit from JEGS.

    Part TypeSteering Box
    Product LineJEGS Steering Boxes
    BrandJEGS
    Package Height11.8
    Package Width13.2
    Package Length15.3
    Weight35.4 PG
    Part CategoryReplacement Parts
    Steering RatioVariable
    Steering Box MaterialCast iron
    Steering Box FinishPainted black
    Pitman Arm IncludedNo
    Part FitmentDirect Fit
    Steering Box StyleFront steer
    Steering Box TypePower assist
    Package Qty1
    Package TypeEA
