![Manual Steering Box for 1965-1979 Ford F-Series Truck [2WD]](https://www.jegs.com/images/mini_750/500/555/555-60788.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-60788

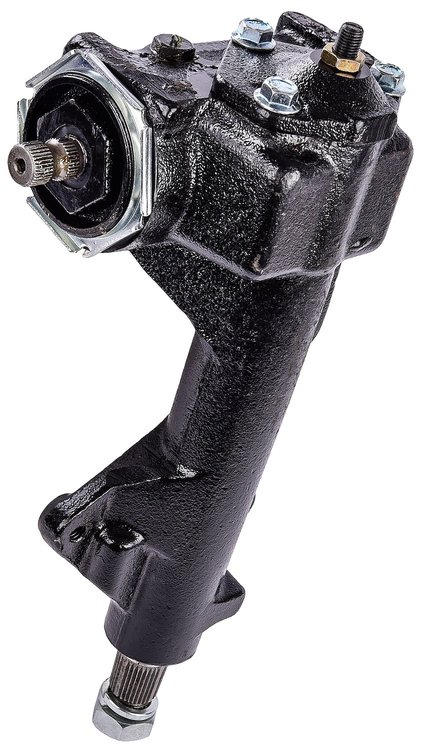

Manual Steering Box for 1965-1979 Ford F-Series Truck [2WD]
$23099$253.99You Save$23.00
More than 10 available
Ships on Sep 14, 2026
Lowest Price GuaranteeFord
Manual Steering Box1965-1979 Ford F-Series Truck 2WD 22:1 Steering Ratio 3/4 in.-36 Spline Input Shaft 1 1/8 in.-32 Spline Pitman Shaft w/ 4 Master Splines 5 3/4 Turns Lock to Lock Black Painted Finish Sold Individually
JEGS 60788 Ford Manual Steering Box for 1965-1979 Ford F Series Trucks is an OEM-Style replacement for your worn unit. This box comes pre-lubed and ready to install. This box will require a (32-spline with 4 master splines) pitman arm for your application.
Features:
- Cast iron construction
- (3) Mounting holes (Thread size: 3/8 in.-16)
Includes:
- (1) 1 1/4 in. pitman shaft nut
- (1) Pitman shaft spilt lock washer
Replacement for OE Part Number(s):
- C5TZ3504D
- D7TZ3504F
Vehicle Fitment:
- 1969-1979 Ford F-100
- 1975-1979 Ford F-150
- 1965-1979 Ford F-250
- 1965-1979 Ford F-350
Part TypeSteering Box
BrandJEGS
Package Height6.4
Package Width9.3
Package Length16.3
Weight23.8 PG
Part CategoryReplacement Parts
Steering Ratio22:1
Steering Box MaterialCast iron
Steering Box FinishPainted black
Pitman Arm IncludedNo
Part FitmentDirect Fit
Steering Box StyleFront steer
Steering Box TypeManual
Package Qty1
Package TypeEA
