![Leaf Spring Axle U-Bolt [3 in. I.D. x 7.625 in. L]](https://www.jegs.com/images/mini_750/500/555/555-60822.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-60822

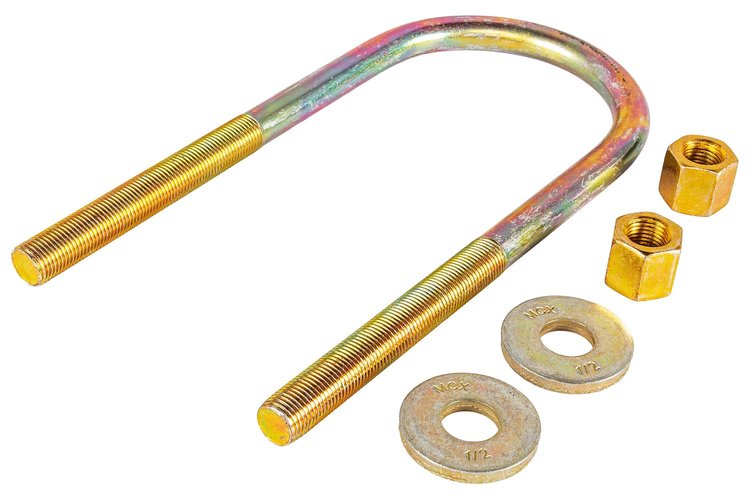

Leaf Spring Axle U-Bolt [3 in. I.D. x 7.625 in. L]
$999$10.79You Save$0.80
More than 10 available
Ships Today
Lowest Price Guarantee3 in. I.D.
Leaf Spring Axle U-BoltRound Bend 3 in. I.D. x 7.625 in. Length 1/2 in.-20 Thread Includes (2) Washers and Nuts
JEGS 555-60822 Leaf Spring Axle U-Bolt Features:
- Designed for securing an axle housing to a leaf spring
- Grade 8 Steel for strength and durability
- Measures 3 in. inside diameter by 7.625 in. long

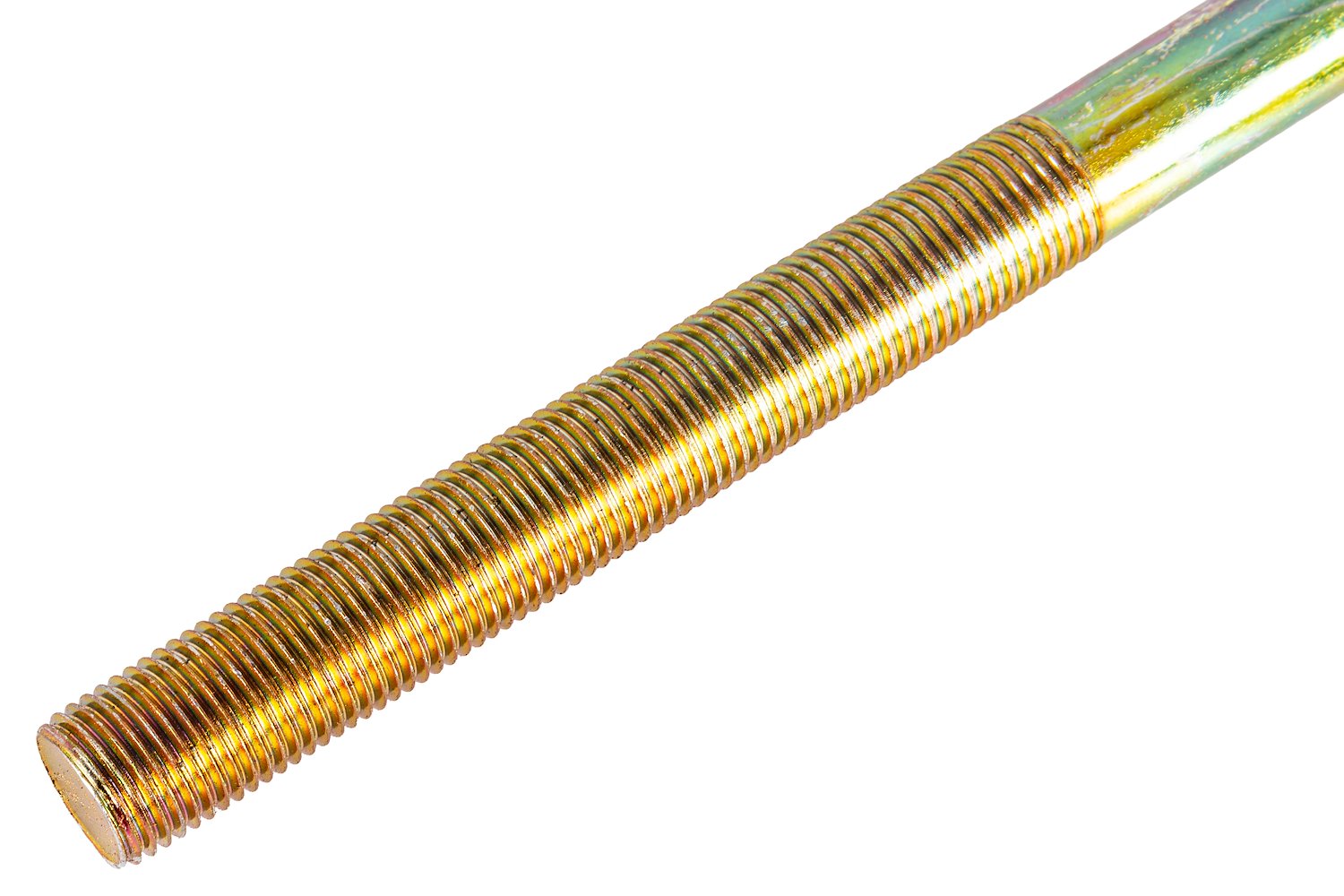

- Features 1/2 in.-20 threads for a strong, reliable hold
- Includes two washers and nuts for installation
JEGS 555-60822 Leaf Spring Axle U-Bolt Notes:
- Leaf spring U-bolts are heavy-duty, "U"-shaped fasteners crucial for clamping the leaf spring pack securely to the axle, ensuring proper suspension alignment and handling.
- They are considered torque-to-yield, one-time-use items that must be replaced whenever they are removed, as the metal stretches upon tightening and cannot hold proper clamping force a second time.
Part TypeLeaf Spring Axle U-Bolt
BrandJEGS
Package Height1.75
Package Width6.0
Package Length8.9
Weight1.11 PG
Part CategoryReplacement Parts
U-Bolt FinishZinc plated
U-Bolt StyleRound
Universal Or Specific FitUniversal
U-Bolt Diameter0.500 in.
QuantitySold individually
Bolt GradeGrade 8
Thread Size1/2 in.-20
U-Bolt I.D. Width3.000 in.
Thread TypeFine
Washers IncludedYes
U-Bolt Length7.625 in.
Nuts IncludedYes
U-Bolt MaterialSteel
Part FitmentUniversal
Package Qty1
Package TypeEA
