Vehicle Info NeededJEGSPART NUMBER: 555-61281

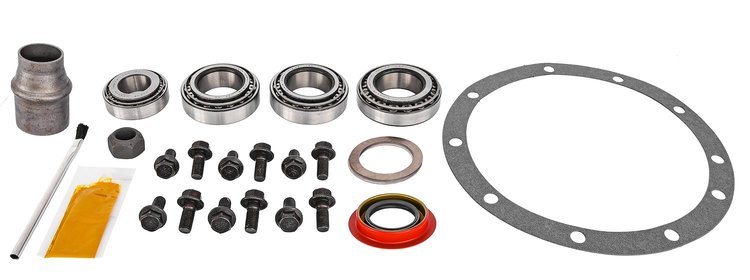

Complete Differential Installation Kit Chrysler 8.75"
$16199$175.99You Save$14.00
2 left in stock
Ships Today
Lowest Price GuaranteeChrysler 8.75"
Complete Differential Installation KitChrysler 8.75" 1969-73 1-7/8" Dia. Tapered Pinion 489 Case Made in the USA
- Kit includes carrier bearings for stock type positive locking differential. Open, Auburn & True Trac units may require dif.Notes:
- Pinion Nut: Includes 7/8"-14 & 3/4"-16 Pinion Nuts since gear sets can have either size threads.
- Ring Gear Bolts: Includes 3/8"-24 Left Hand Thread Ring Gear Bolts. These fit most aftermarket gear sets, but may not fit 1971-73 OEM Ring Gears with Right Hand Thread.
- JEGS COMPLETE KIT includes:
- Pinion and carrier shims
- Ring gear bolts

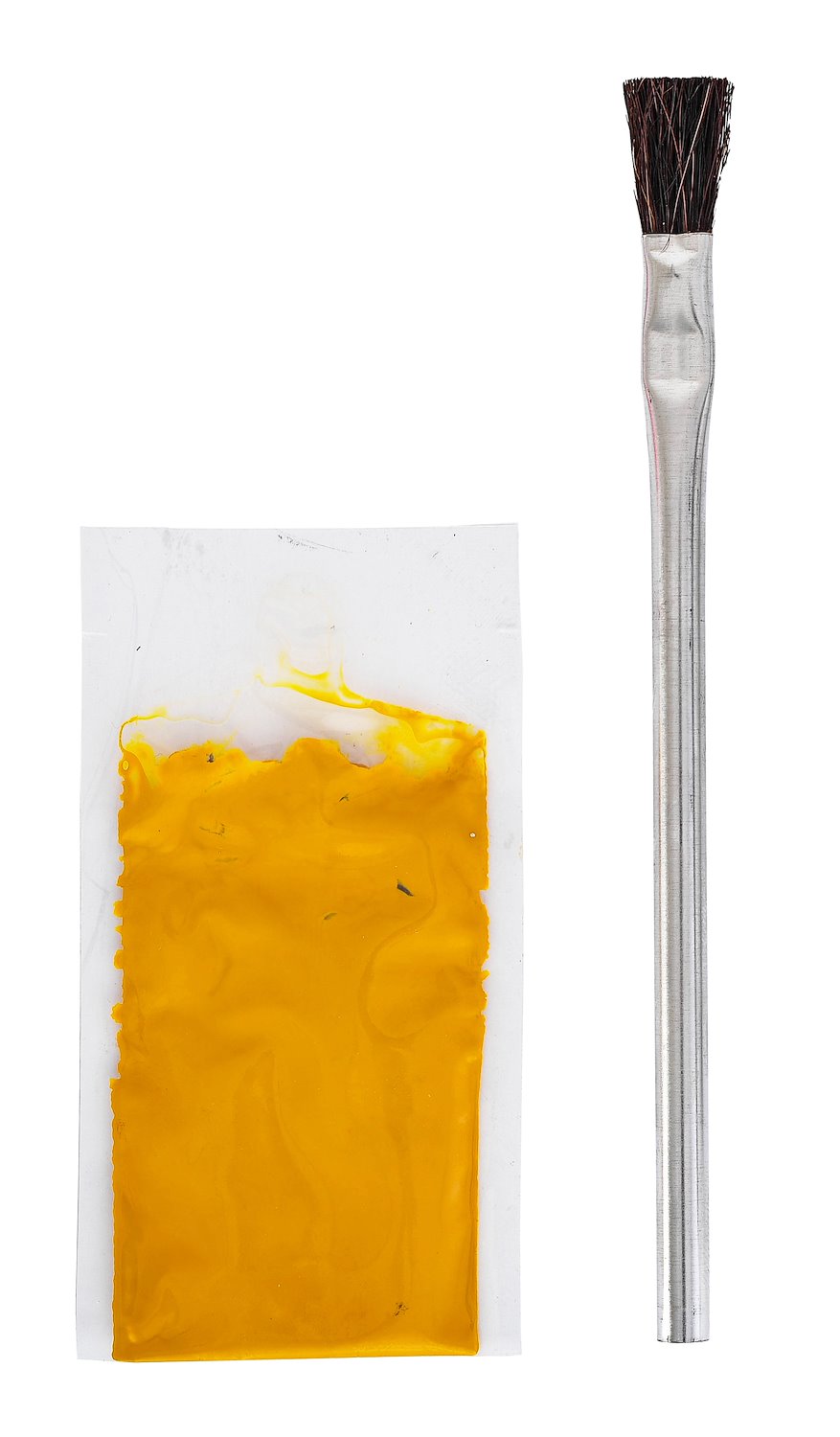

- Marking compound and brush
- Crush sleeve
- Pinion seal and nut
- Cover gasket or RTV
- Timken® pinion & carrier bearings
- Thread locker
Part TypeRing and Pinion Installation Kit
BrandJEGS
Package Height2.2
Package Width11.1
Package Length11.8
Weight6.6 PG
Part CategoryReplacement Parts
Carrier Bearings IncludedYes
Axle Seals IncludedNo
Carrier Shims IncludedYes
Head Bearing IncludedYes
Cover Gasket IncludedYes
Ring Gear Bolts IncludedYes
Crush Sleeve IncludedYes
Tail Bearing IncludedYes
Pinion Spline Count29
Pinion Shims IncludedYes
Pinion Nut IncludedYes
Axle TypeChrysler 8.75 in.
Axle Bearings IncludedNo
Ring Gear Bolts12
Cover Bolts10
Part FitmentDirect Fit
Pinion Seal IncludedYes
Vendor Part NumberPVTJEGKC8.75-C
Package Qty1
Package TypeEA
