Small Block Chevy

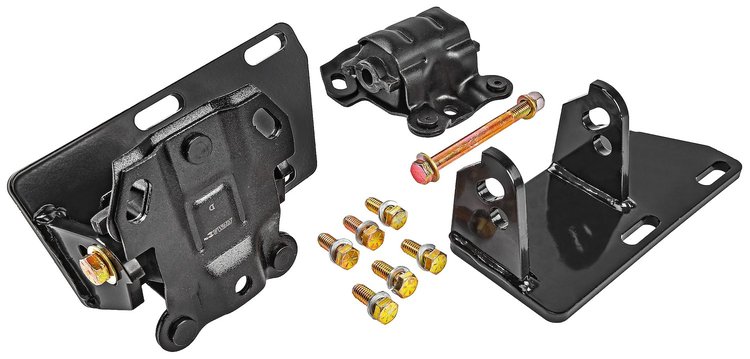

Engine Swap Motor Mounts
  • Adapts a Small Block Chevy Gen I V8 into a 1983-2004 GM S10 or S15 2WD
  • Bolt-In
  • Includes:
    • (1) Left Steel Motor Mount
    • (1) Right Steel Motor Mount
    • (2) Rubber Motor Mounts
    • Mounting Hardware


    JEGS 555-61810 Engine Swap Motor Mounts Features:

    • Fits 1983-2004 Chevrolet and GMC S-10 / S-15 2WD trucks with Small Block Chevy V8 engines such as 283, 305, 307, 327, 350, 383 (stroker), 400, and others based on the popular platform
    • Direct bolt-in for trucks originally equipped with a 4-cylinder or V6 engine and attaches to the factory engine frame brackets
    • Designed for use with a GM TH350 or 700R4 Automatic Transmission
    • Includes (1) left steel motor mount, (1) right steel motor mount, (2) rubber motor mounts, and mounting hardware

    JEGS 555-61810 Engine Swap Motor Mounts Hardware Includes:

    • (6) 3/8 in.-16 x 1 in. Hex Head Cap Screws
    • (6) 3/8 in. Split Lock Washers
    • (2) 7/16 in.-14 x 5 in. Hex cap Screws
    • (2) 7/16 in.-14 Stainless Steel Lock Nuts
    • (2) 7/16 in. Lock Washers
    • (2) 7/16 in. Washers

    JEGS 555-61810 Engine Swap Motor Mounts Hardware Note:

    • To help with completing your conversion we recommend JEGS 555-30094 Chevy V8 engine swap shorty headers.

    FAQ

      What is needed to V8 swap a S-10?

      • To V8 swap an S-10, use JEGS S-10 V8 swap motor mounts like the 555-61810. Additionally, you'll need a compatible transmission, exhaust, and accessories for a successful and efficient conversion.

      What engines will fit in a S-10?

      • JEGS S-10 V8 motor mounts (555-61810) accommodate Small Block Chevy engines for a seamless fit in S-10 trucks. Ensure proper compatibility for a successful and reliable engine swap.
    • When swapping out the engine in your hot rod, you need motor mounts and inserts that you can count on. JEGS Engine Swap Motor Mount Kits are made with quality materials and designed especially for specific applications, giving you the perfect fit for top performance. Hardware included with each kit for a complete mount.

      Features:

      • Application specific
      • Bolts to factory motor mount perches
      • Includes hardware for an easy secure installation
      • Choose between rubber or polyurethane mounts
      Part TypeMotor Mount
      Product LineJEGS Engine Swap Motor Mount Kits
      BrandJEGS
      Package Height5.4
      Package Width10.2
      Package Length10.3
      Weight12.1 PG
      Part CategoryPerformance Parts
      Engine TypeSmall Block Chevy
      Transmission Mount IncludedNo
      Bushing ColorBlack
      Motor Mount StyleComplete mount
      Bracket IncludedYes
      Bushing MaterialRubber
      Welding RequiredNo
      QuantitySold as a kit
      Part FitmentSemi Universal
      Bracket FinishBlack
      Package Qty1
      Package TypeEA
