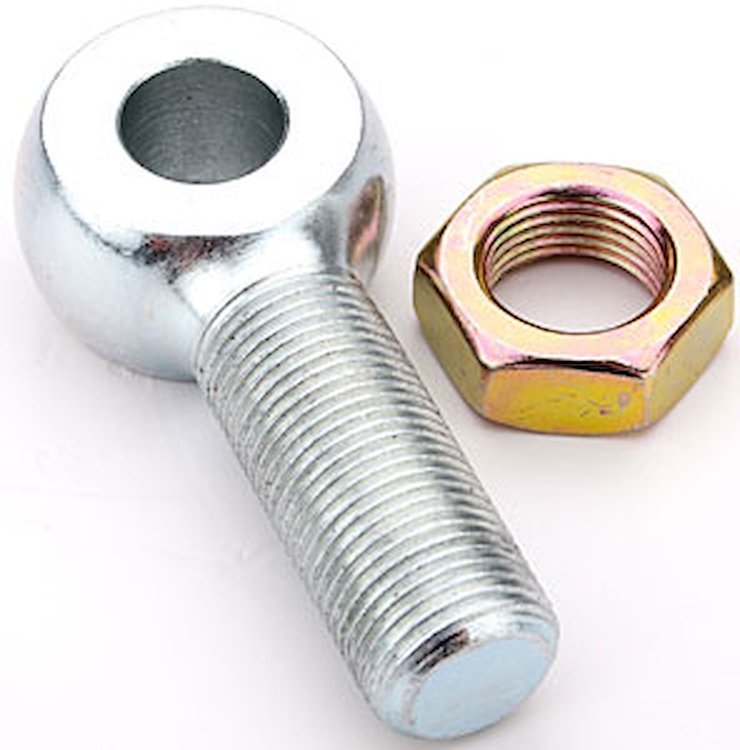

One-Piece Solid Rod End, Male Threads
One-Piece Rod End with Jam Nut5/8" Hole 3/4"-16 Thread RH Solid Design Carbon Steel - Zinc-Plated Static Pull: 18,810 lbs
- Solid construction
- Body: Zinc-plated Carbon Steel, Cold rolled threads
- Static Pull: 3/4" size = 18,810 lbs.
- Includes zinc-plated steel jam nut
 | |||||
| A | B | C | D | W | Thread |
| 2.875" | 0.625" | 1.750" | 1.750" | 0.875" | 3/4"-16 RH |
Part TypeRod End
BrandJEGS
Package Height0.8
Package Width2.1
Package Length3.1
Weight0.85 PG
Part CategoryPerformance Parts
Rod End Construction1-piece
Rod End Thread Size3/4-16 RH
Rod End Head Bore Size0.625 in (15.9 mm)
MaterialCarbon Steel
Jam Nut IncludedYes
Part FitmentUniversal
Package Qty1
Package TypeEA
