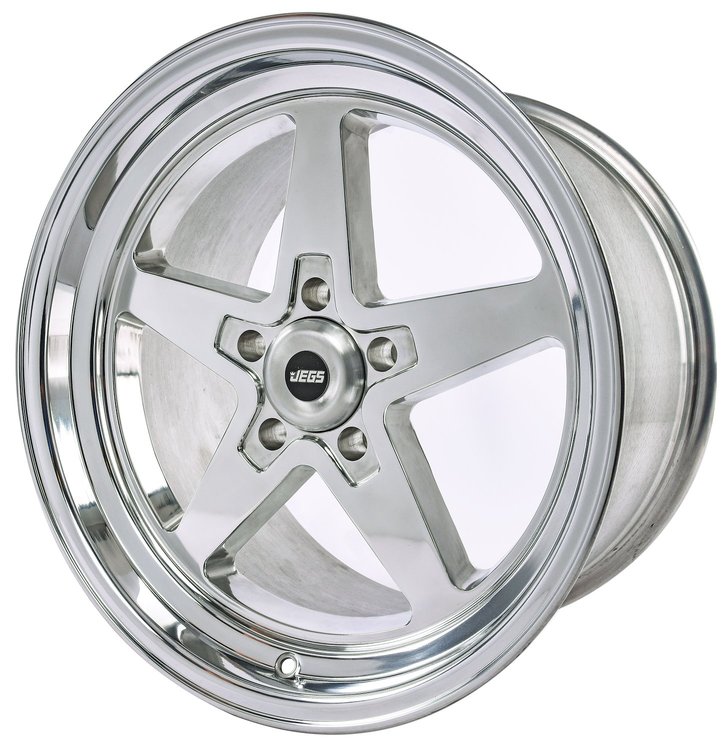

SSR Star Wheel [Size: 17" x 10"] Polished
InfoVehicle Info Needed
JEGSPART NUMBER: 555-681294

SSR Star Wheel [Size: 17" x 10"] Polished

$22299$245.99You Save$23.00
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

17" X 10"
SSR Star Wheel
  • Size: 17" x 10"
  • Bolt Pattern: 5 x 4.50"
  • Back Spacing: 6.50"
  • Offset: 25 mm
  • Center Bore: 3.27"
  • Load Rating: 2100 lbs.
  • Finish: Polished

    JEGS How to Measure Wheel Fitment click here

    JEGS Wheel Load Rating Chart

    JEGS 681294 Features:

    • One-Piece Aluminum Construction
    • Meets or Exceeds SAE Fatigue Standards
    • Sleek 5-Spoke Design
    • DOT Approved
    • Includes JEGS 2 3/8 in. Center Cap 555-69154
    • JEGS 3 1/2 in. Center Cap Sold Separately 555-69155
    • 23 mm (.906 in.) Lug Counter Bore Diameter (Requires Spline Drive Lug Nuts) See Special Note Below
    • These Wheels fit many applications and it is important to take measurements on your Vehicle first before purchasing. (See How to Measure Wheel Fitment Link Above)

    Special Notes:

    • These wheels are machined with a 23 mm (.906 in.) lug counter bore diameter and require spline drive lug nuts. Lug nuts are sold separately (See JEGS Spline Drive Lug Nut Chart Below). A JEGS spline drive socket is required for the installation of JEGS spline drive lug nuts. We recommend JEGS 6-Spline 555-65446 or 7-Spline 555-65460 socket.
  • Part TypeWheel
    BrandJEGS
    Package Height12.0
    Package Width19.0
    Package Length19.0
    Weight28.0 PG
    Part CategoryPerformance Parts
    Valve Stems IncludedNo
    Wheel Size17 x 10 in.
    Lug Nut Seat TypeConical seat - 60 degree
    Load Rating (Lbs.)2,100
    Quantity1
    Wheel MaterialCast Aluminum
    Wheel FinishPolished
    Wheel Construction1-piece
    Back Spacing6.5 in (165.1 mm)
    Bolt Pattern5 x 4.5 in.
    Offset0.984 in.
    Backspacing6.5 In.
    Valve Stem IncludedNo
    Center Bore Diameter3.27 In.
    Manufacturers Wheel SeriesJEGS SSR Star Polished
    Lug Counter Bore Diameter0.906 in.
    Wheel Bolt Pattern5 x 4 1/2 (114.3 mm)
    Center Cap IncludedYes
    Lug Nut Seat StyleConical seat - 60 degree
    Load Rating2100 lbs.
    Wheel Diameter17 in.
    Wheel Offset25 mm (.9842 in)
    Wheel TypeCar Street, Strip Wheels
    Part FitmentSemi Universal
    Wheel Width10 in.
    Vendor Part Number571SSR1710545POL
    Package Qty1
    Package TypeEA
