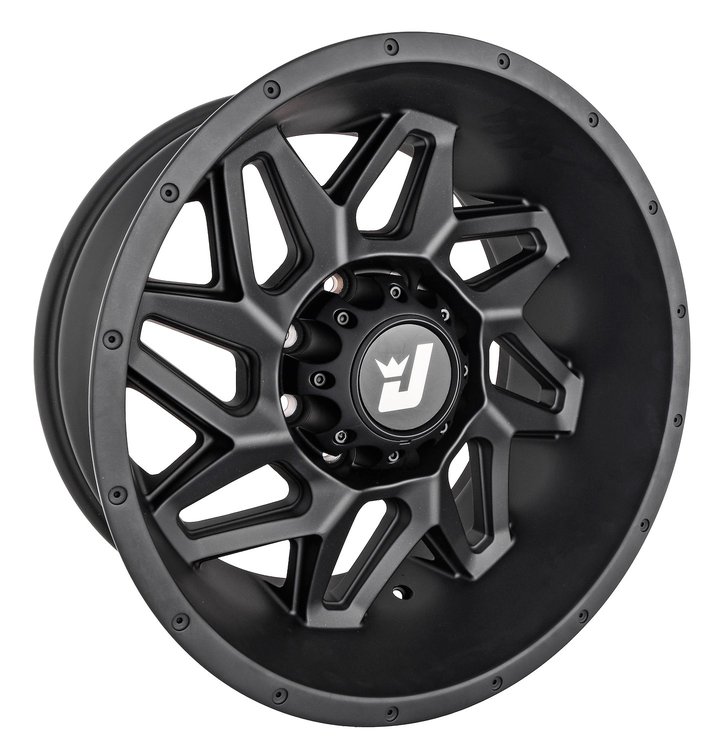

![Catalyst Wheel [Size: 20" x 10"] Satin Black](https://www.jegs.com/images/mini_750/500/555/555-681708.jpg)
Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
20" x 10"
Catalyst WheelSize: 20" x 10" Bolt Pattern: 8 x 6.50" Back Spacing: 4.50" Offset: -25 mm Center Bore: 125.20 mm Load Rating: 3650 lbs. Finish: Satin Black
JEGS How to Measure Wheel Fitment
JEGS 555-681708 Catalyst Truck Wheel Features:
- One-Piece Cast Aluminum Construction
- Simulated Beadlock on Outer Lip
- Black Screw-In Center Cap with JEGS Logo
- These Wheels fit many applications and it is important to take measurements on your Vehicle first before purchasing. (See How to Measure Wheel Fitment Link Above)
JEGS 555-681708 Catalyst Wheel Notes:
- These wheels are machined for standard acorn-style lug nuts (see Lug Nut Chart below). A JEGS 555-W32902 thin wall socket is required for installation (sold separately).
- If desired, JEGS Spline Drive Acorn Style Lug Nuts are available. These lug nuts require a JEGS 555-65446 (6-Spline Lug Nuts) or 555-65460 (7-Spline Lug Nuts) thin wall spline drive socket for installation (sold separately).
Part TypeWheel
BrandJEGS
Package Height11.0
Package Width21.0
Package Length21.0
Weight19.75 PG
Part CategoryPerformance Parts
Valve Stems IncludedNo
Wheel Size20 x 10 in.
Lug Nut Seat TypeConical
Load Rating (Lbs.)3,650
Quantity1
Wheel MaterialCast Aluminum
Wheel FinishSatin Black
Wheel Construction1-piece
Back Spacing4.5 in (114.3 mm)
Bolt Pattern8 x 6.5 in.
Offset-0.984 in.
Backspacing4.5 in.
Valve Stem IncludedNo
Center Bore Diameter4.929 in.
Manufacturers Wheel SeriesJEGS Catalyst Satin Black
Wheel Bolt Pattern8 x 6 1/2 (165.1 mm)
Center Cap IncludedYes
Lug Nut Seat StyleConical
Load Rating3650 lbs.
Wheel Diameter20 in.
Wheel Offset-25 mm (-.9842 in)
Wheel TypeJeep, Truck, SUV Wheels
Part FitmentSemi Universal
Maximum Tire Diameter37 in.
Wheel Width10 in.
Vendor Part Number6120081SB25
Package Qty1
Package TypeEA
