![Catalyst Wheel [Size: 22" x 12"] Chrome](https://www.jegs.com/images/mini_750/500/555/555-681718.jpg)
Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
22" x 12"

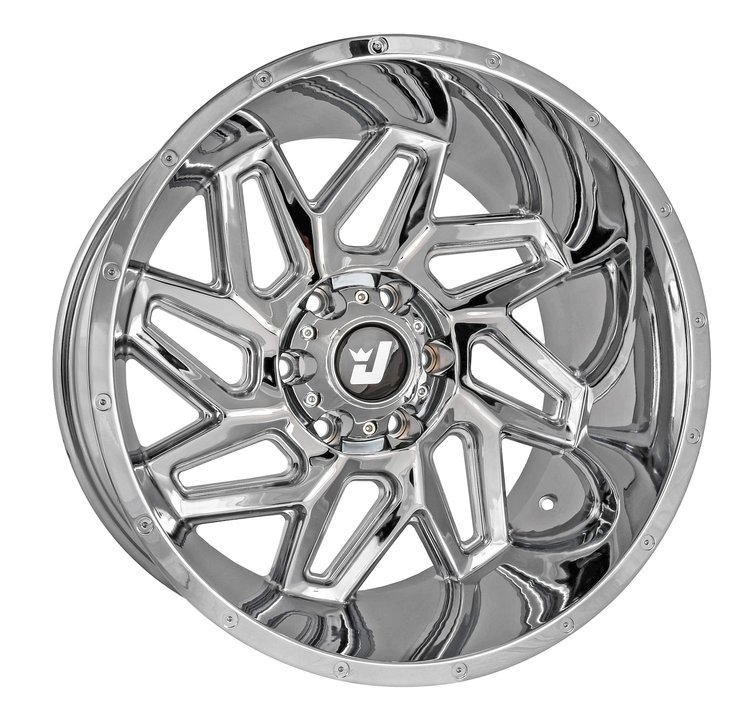

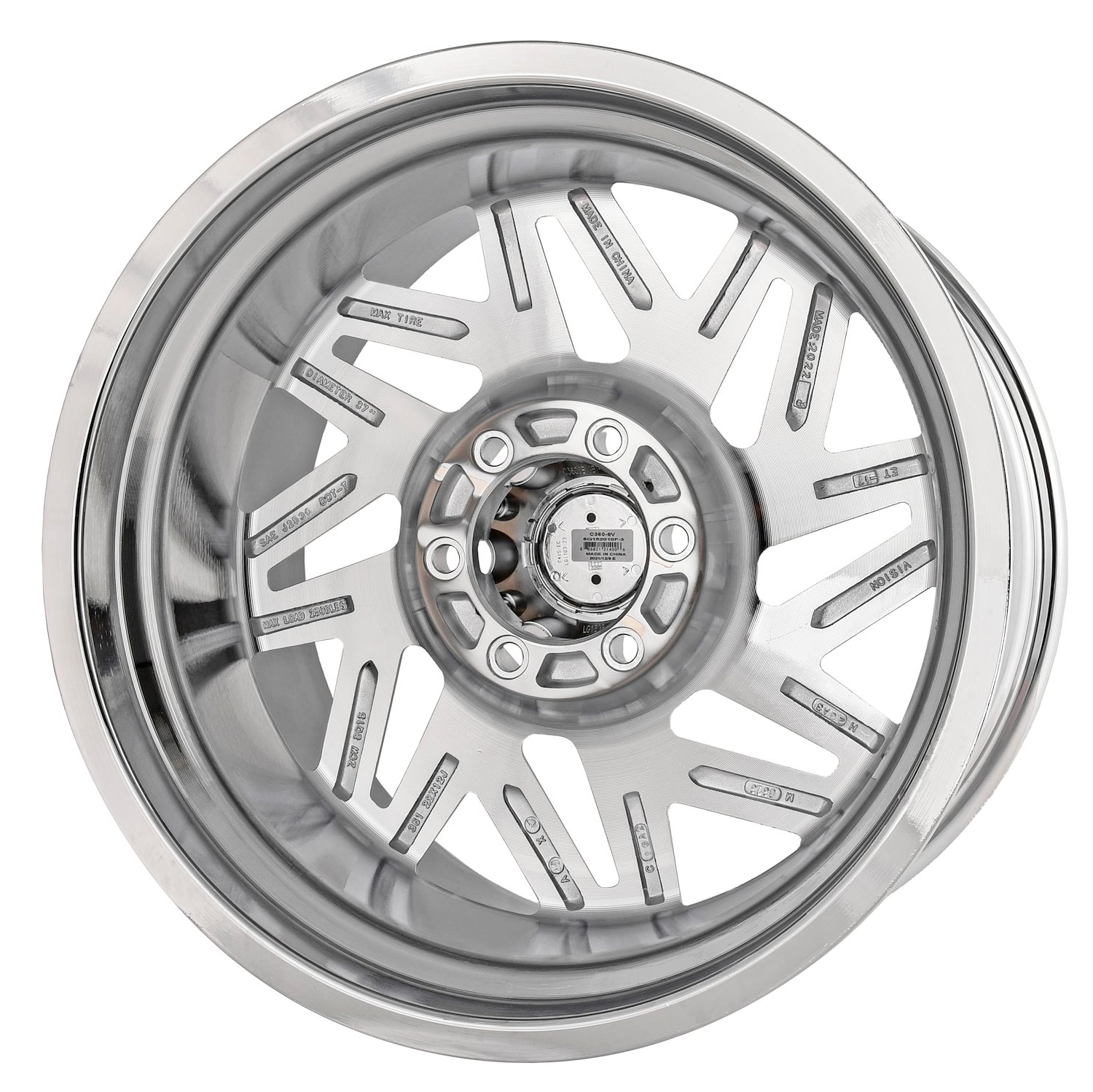

Catalyst WheelSize: 22" x 12" Bolt Pattern: 6 x 5.50" Back Spacing: 4.25" Offset: -57 mm Center Bore: 106.20 mm Load Rating: 2500 lbs. Finish: Chrome
JEGS How to Measure Wheel Fitment
JEGS 555-681718 Catalyst Truck Wheel Features:
- Includes Plastic Hub Centric Ring
- Inside Diameter: 78.10 mm (3.075 in.)
- Outside Diameter: 106.20 mm (4.181 in.)
- One-Piece Cast Aluminum Construction
- Simulated Beadlock on Outer Lip
- Chrome Screw-In Center Cap with JEGS Logo
- These Wheels fit many applications and it is important to take measurements on your Vehicle first before purchasing. (See How to Measure Wheel Fitment Link Above)
JEGS 555-681718 Catalyst Truck Wheel Notes:
- These wheels are machined for standard acorn-style lug nuts (see Lug Nut Chart below). A JEGS 555-W32902 thin wall socket is required for installation (sold separately).
- If desired, JEGS Spline Drive Acorn Style Lug Nuts are available. These lug nuts require a JEGS 555-65446 (6-Spline Lug Nuts) or 555-65460 (7-Spline Lug Nuts) thin wall spline drive socket for installation (sold separately).
New Style Wheels for Your Truck
JEGS Catalyst Chrome Wheels have a twisted split eight-spoke design with machined rivets on the outer lip of the wheel. Each wheel is constructed from precision-crafted aluminum alloy for low weight and strength. These wheels are available in your choice of different bolt patterns, offsets, and backspacing to fit your specific needs.
JEGS also offers Catalyst Wheels in a Gloss Black Finish with Milled Spokes and Satin Black Finish.
Show More
Part TypeWheel
Product LineJEGS Catalyst Chrome Wheels
BrandJEGS
Package Height13.0
Package Width23.0
Package Length23.0
Weight22.5 PG
Part CategoryPerformance Parts
Valve Stems IncludedNo
Wheel Size22 x 12 in.
Hub CentricYes
Lug Nut Seat TypeConical
Load Rating (Lbs.)2,500
Quantity1
Hub Centric Ring IncludedYes
Wheel MaterialCast Aluminum
Wheel FinishChrome
Wheel Construction1-piece
Back Spacing4.25 in (107.95 mm)
Bolt Pattern6 x 5.5 in.
Offset-2.244 in.
Backspacing4.25 in.
Valve Stem IncludedNo
Center Bore Diameter4.18 In.
Manufacturers Wheel SeriesJEGS Catalyst Chrome
Wheel Bolt Pattern6 x 5 1/2 (139.7 mm)
Center Cap IncludedYes
Lug Nut Seat StyleConical
Load Rating2500 lbs.
Wheel Diameter22 in.
Wheel Offset-57 mm (-2.2441 in)
Wheel TypeJeep, Truck, SUV Wheels
Part FitmentSemi Universal
Maximum Tire Diameter37 in.
Wheel Width12 in.
Vendor Part Number6122283C57
Package Qty1
Package TypeEA
