![Catalyst Wheel [Size: 22" x 12"] Gloss Black with Milled Spokes](https://www.jegs.com/images/mini_750/500/555/555-681722.jpg)
Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
22" x 12"

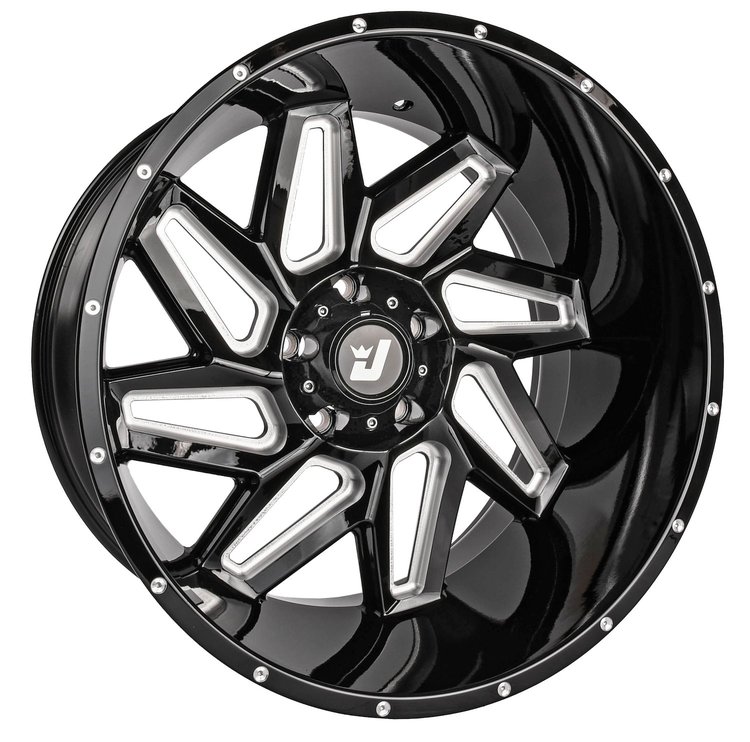

Catalyst WheelSize: 22" x 12" Bolt Pattern: 5 x 5.50" Back Spacing: 4.50" Offset: -51 mm Center Bore: 108 mm Load Rating: 2500 lbs. Finish: Gloss Black with Milled Spokes
JEGS How to Measure Wheel Fitment
JEGS 555-681722 Catalyst Truck Wheel Features:
- One-Piece Cast Aluminum Construction
- Simulated Beadlock on Outer Lip
- Black Screw-In Center Cap with JEGS Logo
- These Wheels fit many applications and it is important to take measurements on your Vehicle first before purchasing. (See How to Measure Wheel Fitment Link Above)
JEGS 555-681722 Catalyst Truck Wheel Notes:
- These wheels are machined for standard acorn-style lug nuts (see Lug Nut Chart below). A JEGS 555-W32902 thin wall socket is required for installation (sold separately).
- If desired, JEGS Spline Drive Acorn Style Lug Nuts are available. These lug nuts require a JEGS 555-65446 (6-Spline Lug Nuts) or 555-65460 (7-Spline Lug Nuts) thin wall spline drive socket for installation (sold separately).
New Style Wheels To Update Your Truck
JEGS Catalyst Gloss Black Wheels have a twisted split eight-spoke design with machined rivets on the outer lip of the wheel. Each wheel is constructed from precision-crafted aluminum alloy for weight savings and strength. These wheels are available in your choice of different bolt patterns, offsets, and backspacing to fit your specific needs.
JEGS also offers Catalyst Wheels in a Chrome Finish and Satin Black Finish.
Show More
Part TypeWheel
Product LineJEGS Catalyst Gloss Black Wheels
BrandJEGS
Package Height13.0
Package Width23.0
Package Length23.0
Weight22.5 PG
Part CategoryPerformance Parts
Valve Stems IncludedNo
Wheel Size22 x 12 in.
Lug Nut Seat TypeConical
Load Rating (Lbs.)2,500
Quantity1
Wheel MaterialCast Aluminum
Wheel FinishGloss Black with Milled Spokes
Wheel Construction1-piece
Back Spacing4.5 in (114.3 mm)
Bolt Pattern5 x 5.5 in.
Offset-2.007 in.
Backspacing4.5 in.
Valve Stem IncludedNo
Center Bore Diameter4.252 in.
Manufacturers Wheel SeriesJEGS Catalyst Gloss Black
Wheel Bolt Pattern5 x 5 1/2 (139.7 mm)
Center Cap IncludedYes
Lug Nut Seat StyleConical
Load Rating2500 lbs.
Wheel Diameter22 in.
Wheel Offset-51 mm (-2.0079 in)
Wheel TypeJeep, Truck, SUV Wheels
Part FitmentSemi Universal
Maximum Tire Diameter37 in.
Wheel Width12 in.
Vendor Part Number6122285GB51
Package Qty1
Package TypeEA
