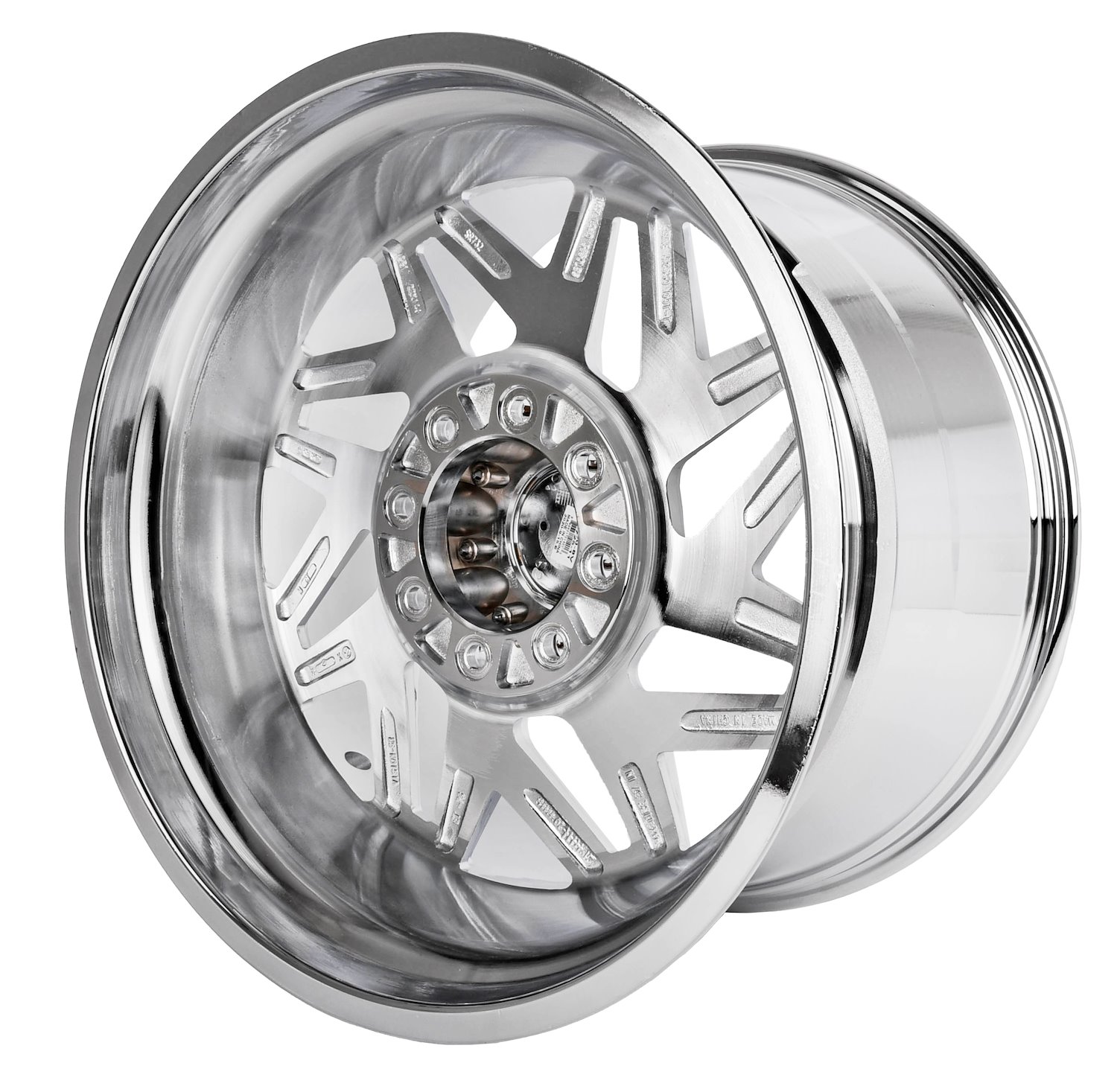

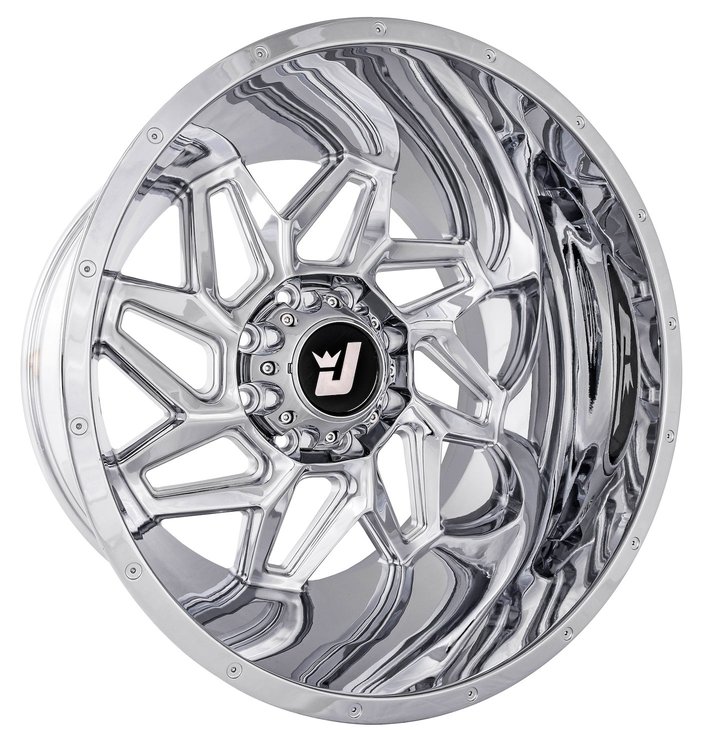

Catalyst Wheel [Size: 22" x 14"] Chrome
Product Discontinued
JEGSPART NUMBER: 555-681724

Catalyst Wheel [Size: 22" x 14"] Chrome

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

22" x 14"
Catalyst Wheel
  • Size: 22" x 14"
  • Bolt Pattern: 8 x 170 mm
  • Back Spacing: 4.50"
  • Offset: -76 mm
  • Center Bore: 125.20 mm
  • Load Rating: 3650 lbs.
  • Finish: Chrome

    JEGS How to Measure Wheel Fitment

    JEGS 555-681724 Catalyst Truck Wheel Features:

    • One-Piece Cast Aluminum Construction
    • Simulated Beadlock on Outer Lip
    • Chrome Screw-In Center Cap with JEGS Logo
    • These Wheels fit many applications and it is important to take measurements on your Vehicle first before purchasing. (See How to Measure Wheel Fitment Link Above)

    JEGS 555-681724 Catalyst Truck Wheel Notes:

    • These wheels are machined for standard acorn-style lug nuts (see Lug Nut Chart below). A JEGS 555-W32902 thin wall socket is required for installation (sold separately).
    • If desired, JEGS Spline Drive Acorn Style Lug Nuts are available. These lug nuts require a JEGS 555-65446 (6-Spline Lug Nuts) or 555-65460 (7-Spline Lug Nuts) thin wall spline drive socket for installation (sold separately).
    • Part TypeWheel
    BrandJEGS
    Package Height15.0
    Package Width23.0
    Package Length23.0
    Weight23.0 PG
    Part CategoryPerformance Parts
    Valve Stems IncludedNo
    Wheel Size22 x 14 in.
    Lug Nut Seat TypeConical
    Load Rating (Lbs.)3,650
    Quantity1
    Wheel MaterialCast Aluminum
    Wheel FinishChrome
    Wheel Construction1-piece
    Back Spacing4.5 in (114.3 mm)
    Bolt Pattern8 x 170 mm
    Offset2.992 in.
    Backspacing4.5 in.
    Valve Stem IncludedNo
    Center Bore Diameter4.929 in.
    Manufacturers Wheel SeriesJEGS Catalyst Chrome
    Wheel Bolt Pattern8 x 170 mm
    Center Cap IncludedYes
    Lug Nut Seat StyleConical
    Load Rating3650 lbs.
    Wheel Diameter22 in.
    Wheel Offset-76 mm (2.9921 in)
    Wheel TypeJeep, Truck, SUV Wheels
    Part FitmentSemi Universal
    Maximum Tire Diameter37 in.
    Wheel Width14 in.
    Vendor Part Number6122470C76
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
