![JV-1 Wheel [Size: 20" x 10"] Chrome](https://www.jegs.com/images/mini_750/500/555/555-681860.jpg)
Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
20" x 10"

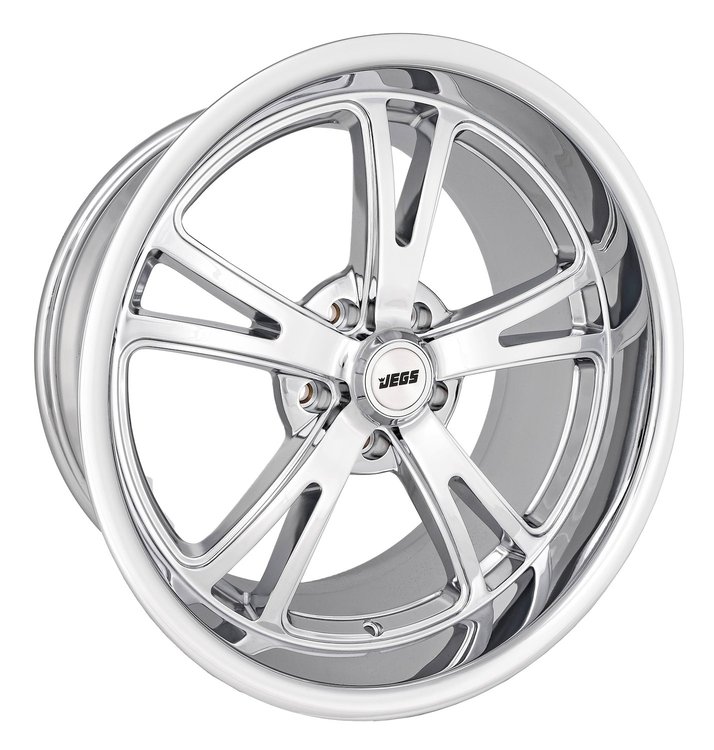

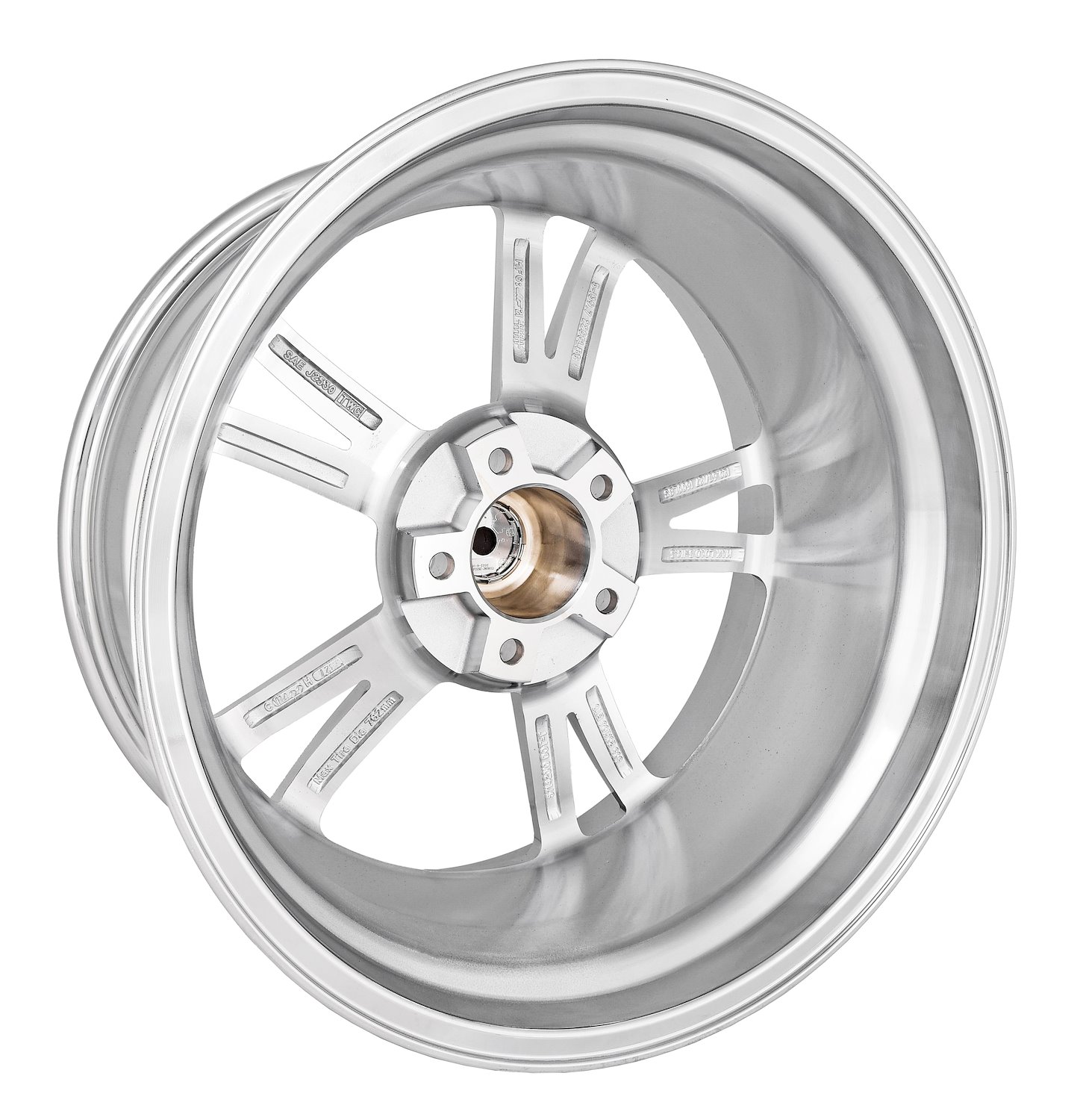

JV-1 WheelSize: 20" x 10" Bolt Pattern: 5 x 4.50" Back Spacing: 5.50" Offset: 0 mm Hub Size: 3.30" Load Rating: 1600 lbs. Finish: Chrome
JEGS How to Measure Wheel Fitment click here
JEGS 555-681860 JV-1 Wheel Features:
- One-Piece Aluminum Construction
- Chrome Spokes
- Chrome Snap-In Center Cap with JEGS Logo
- These wheels fit many applications and it is important to take measurements on your Vehicle first before purchasing. (See How to Measure Wheel Fitment Link Above)
Special Notes:
- These wheels are machined for standard Acorn Style Lug Nuts and are sold separately (See Lug Nut Chart Below).
- If desired, JEGS Spline Drive Acorn Style Lug Nuts are available (Click Here). These lug nuts require a JEGS thin wall spline drive socket for installation JEGS 555-65446 (6-Spline Lug Nuts) or JEGS 555-65460 (7-Spline Lug Nuts).
Part TypeWheel
BrandJEGS
Package Height11.0
Package Width22.0
Package Length22.0
Weight38.0 PG
Part CategoryPerformance Parts
Valve Stems IncludedNo
Wheel Size20 x 10 in.
Lug Nut Seat TypeConical seat - 60 degree
Load Rating (Lbs.)1,600
Quantity1
Wheel MaterialCast Aluminum
Wheel FinishChrome
Wheel Construction1-piece
Back Spacing5.5 in (139.7 mm)
Bolt Pattern5 x 4.5 in.
Offset0 In.
Backspacing5.5 In.
Valve Stem IncludedNo
Center Bore Diameter3.3 in.
Manufacturers Wheel SeriesJEGS JV-1 Chrome
Lug Counter Bore Diameter1.122 in.
Wheel Bolt Pattern5 x 4 1/2 (114.3 mm)
Center Cap IncludedYes
Lug Nut Seat StyleConical seat - 60 degree
Load Rating1600 lbs.
Wheel Diameter20 in.
Wheel Offset0 mm (0 in)
Wheel TypeCar Street Wheels
Part FitmentSemi Universal
Wheel Width10 in.
Vendor Part Number606-2165C
Package Qty1
Package TypeEA
