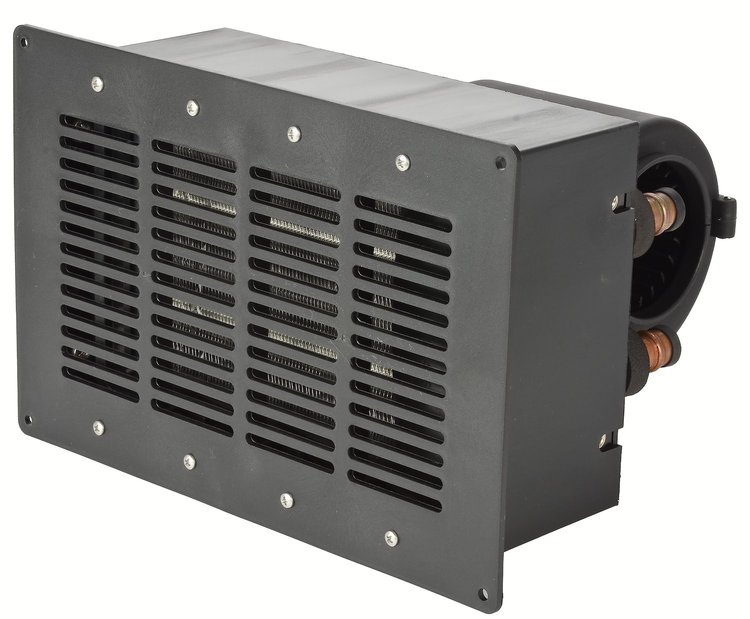

JEGS 555-70600 Auxiliary Heater with Grille Face Plate Features:

• Keep warm with 28,000 BTUs of heat
• Compact design for limited space and tight areas
• Long life three-speed motor
• Heavy-duty injection-molded and glass-filled nylon construction
• Durable tube and fin core design
• Universal mounting design
• Flat Grille Face plate with mounting flange
• Heavy-duty injection molded glass-filled nylon housing construction
• Long-life 12-volt three-speed motor
  • Low [4.9 Amps]
  • Med [6.6 Amps]
  • High [9.6 Amps]
• Compact design
• Durable tube/fin heater core design

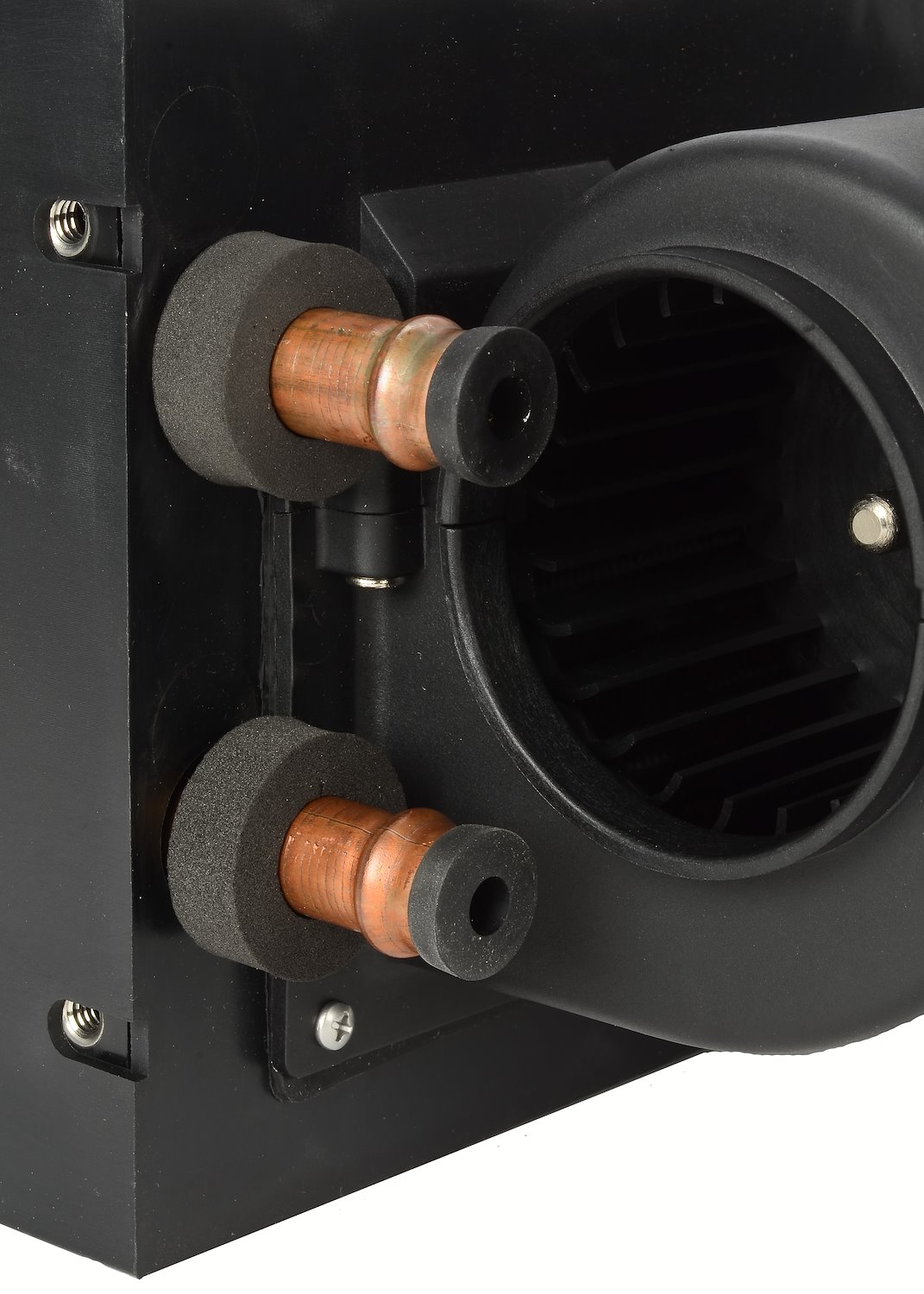

• 5/8 in. O.D. heater core inlet and outlet connections
• Requires external ground

JEGS 555-70600 Auxiliary Heater with Grille Face Plate Includes:

• (1) Heater assembly
• (1) Grille plate
• (12) Grille plate attaching screws, #8 x 3/4 in. stainless steel
• (1) Switch assembly includes:
  • (1) 3-Speed switch
  • (1) Switch face plate
  • (2) Switch attaching nuts
  • (1) Switch knob
  • (3) 14-gauge female spade terminals
  • (1) Dash mounting bracket
• (1) 5 ft. 3-wire 14-gauge wiring harness with plug-in connector for heater motor
• Installation instructions

JEGS 555-70600 Auxiliary Heater Notes:

• The mounting bracket is not included.
• The heater electrical circuit must be fused for safety, with the fuse placed as close to the vehicle's electrical connection as possible. We recommend JEGS fuse holder 555-10516
• The recommended fuse for this heater is 7.5 amp. We recommend JEGS 7.5 amp fuse 555-10788
• A separate ground wire must be utilized to complete the electrical circuit.
