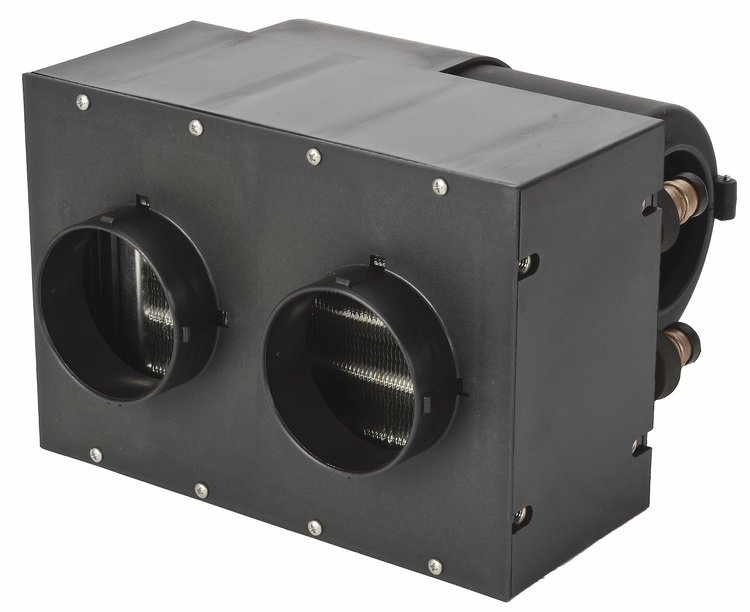

JEGS 555-70601 Auxiliary Heater with Dual Vents Includes:

• (1) Heater assembly
• (1) Grille plate with dual 3 in. O.D. vents
• (8) Grille plate attaching screws, #8 x 3/4 in. stainless steel Philips pan head
• (1) Switch assembly includes:
  • (1) 3-Speed switch
  • (1) Switch face plate
  • (2) Switch attaching nuts
  • (1) Switch knob
  • (3) 14-gauge female spade terminals
  • (1) Dash mounting bracket
• (1) 5 ft. 3-wire 14-gauge wiring harness with plug-in connector for heater motor
• (2) Mounting Brackets
• (8) Mounting Bracket Bolts, 1/4 in.-20 x 3/4 in. UHL stainless steel with 3/8 in. hex washer head
• (4) #14 x 1/2 in. stainless steel truss Philips head screws
• Installation instructions

JEGS 555-70601 Auxiliary Heater with Dual Vents Features:

• Keep warm with 28,000 BTUs of heat
• Compact design for limited space and tight areas
• Long life three-speed motor
• Heavy-duty injection-molded and glass-filled nylon construction
• Durable tube and fin core design
• Universal mounting design
• 3 in. O.D. Dual Vents
• Heavy-duty injection molded glass-filled nylon housing construction
• Long-life 12-volt three-speed motor
  • Low [4.9 Amps]
  • Med [6.6 Amps]
  • High [9.6 Amps]
• Compact design
• Durable tube/fin heater core design

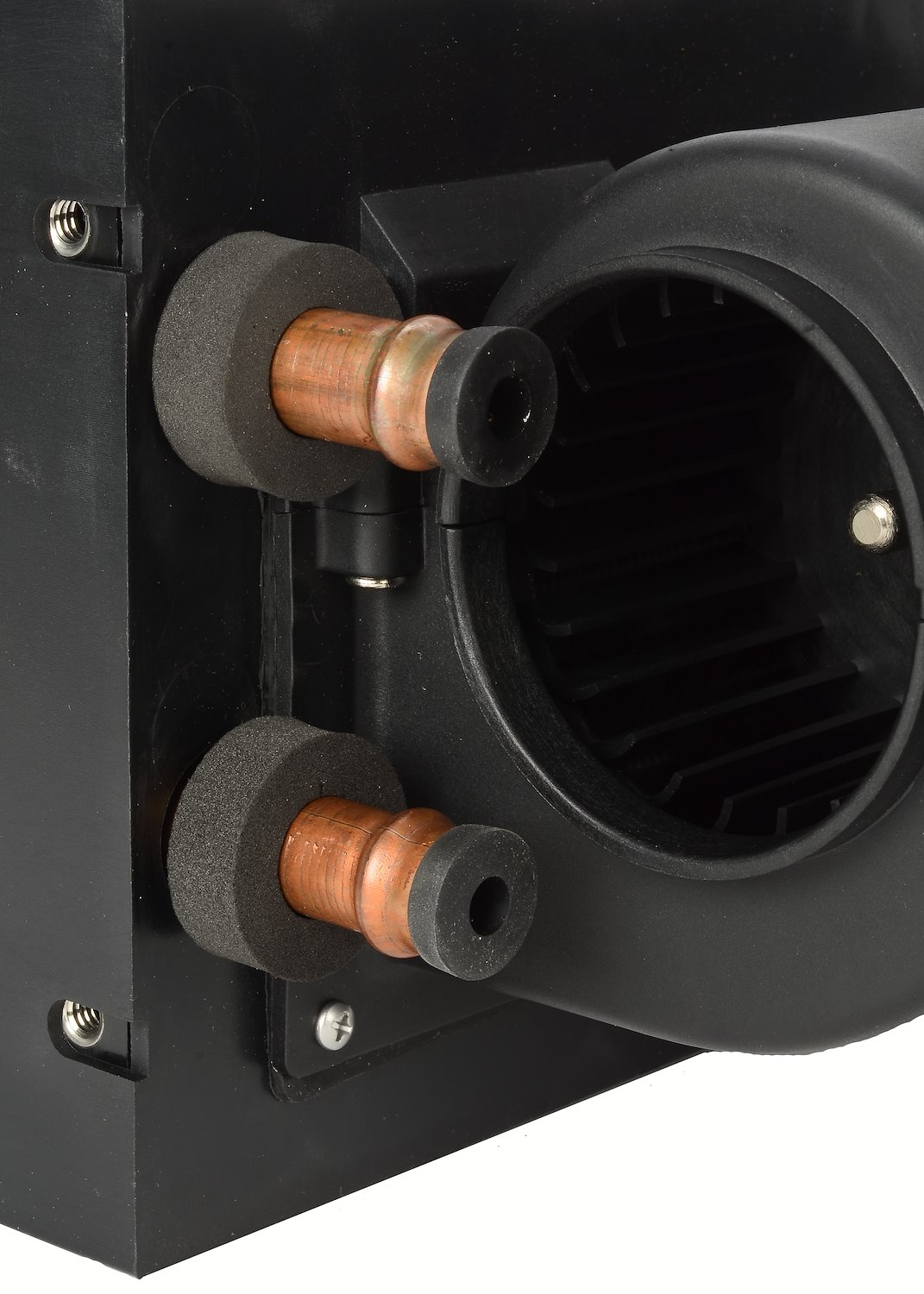

• 5/8 in. O.D. heater core inlet and outlet connections
• Requires external ground

JEGS 555-70601 Auxiliary Heater Notes:

• The heater electrical circuit must be fused for safety, with the fuse placed as close to the vehicle's electrical connection as possible. We recommend JEGS fuse holder 555-10516
• The heater requires a 15 amp fuse.
• A separate ground wire must be utilized to complete the electrical circuit.

FAQ

What is auxiliary heating in a car?

• Auxiliary heating is an add-on heating system that warms the vehicle's interior when a factory heater does not exist or additional heating is required.
• It enhances comfort, especially during colder seasons or chilly mornings.
• JEGS offers many different auxiliary heater models to meet your heating needs.
