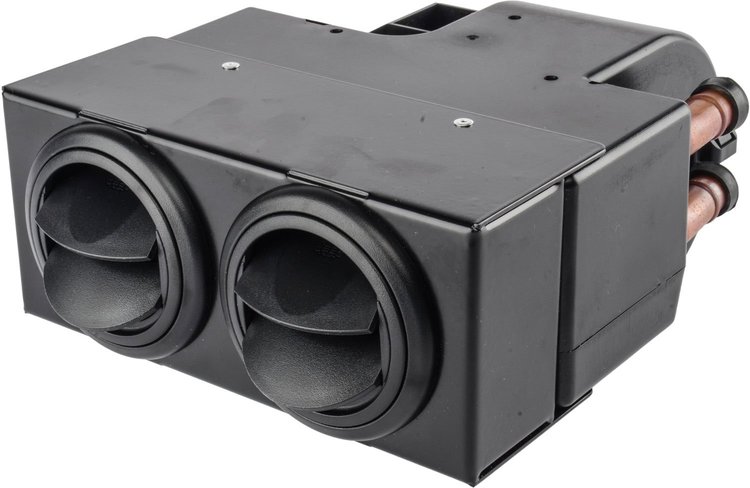

Auxiliary Heater with Dual Louvered Vents [80 CFM, 8,500 BTU]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-70609

Auxiliary Heater with Dual Louvered Vents [80 CFM, 8,500 BTU]

$22999$252.99You Save$23.00
4 left in stock
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

8,500 BTU Auxiliary Heater
Auxiliary Heater
  • 80 cfm
  • 8,500 btu
  • Mountable Switch
  • Dual Rectangular Louvered Vents
  • 4.625 in. H x 7.750 in. W x 9.500 in. D
  • 2-Speed 12 V Blower Motor

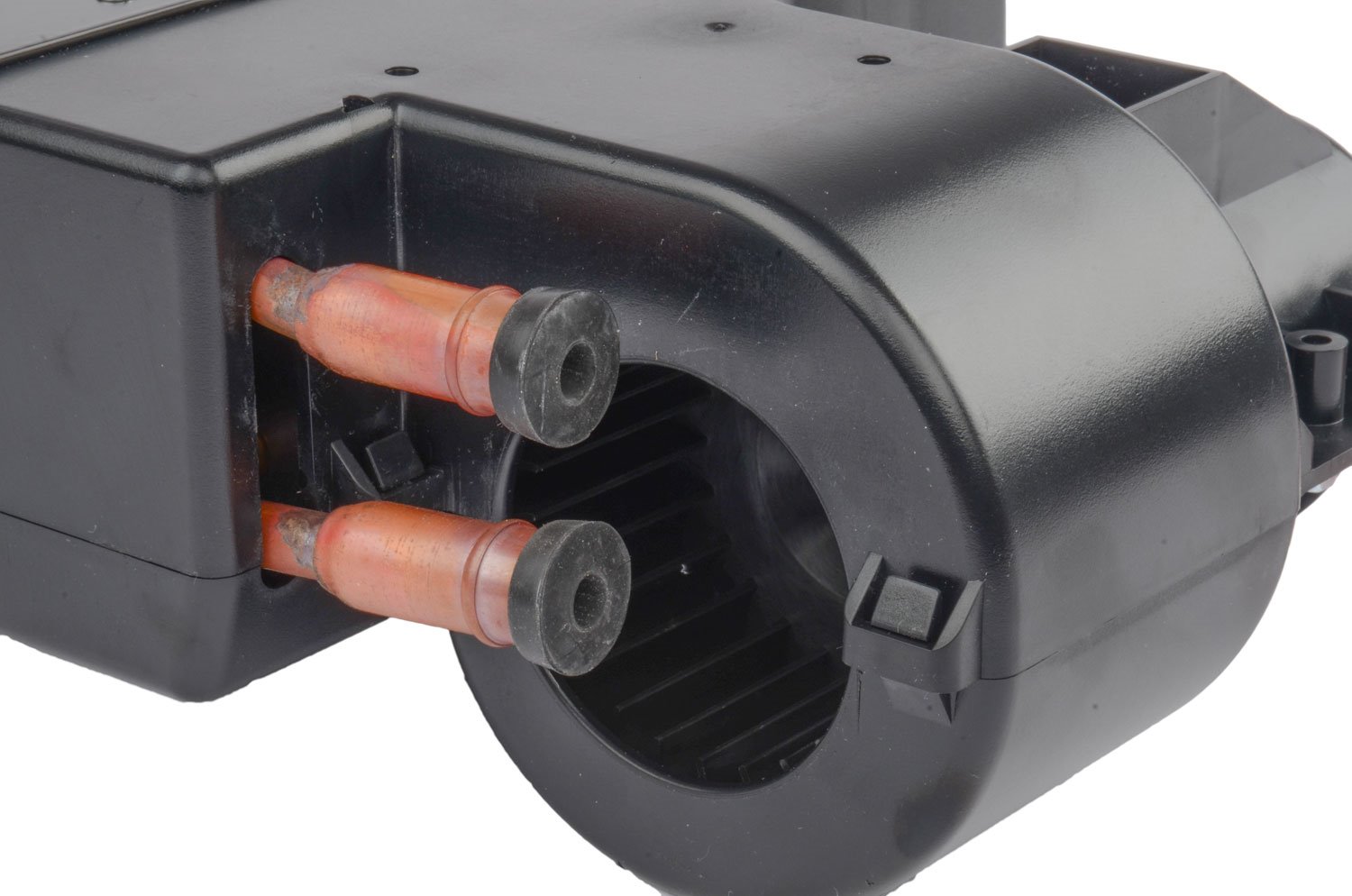

  • 5/8 in. Heater Hose Connections

    JEGS 555-70609 Auxiliary Heater with Dual Louvered Vents Features:

    • Keep warm with 8,500 BTUs of heat
    • Compact design for limited space and tight areas
    • Long life with the 12-volt two-speed motor
    • Heavy-duty injection-molded and glass-filled nylon construction
    • Durable tube and fin core design
    • Hydronic Heater
    • 12V, 2-Speed
    • Single Scroll Blower
    • Just the right size for small cabs.
    • Under Dash Mounting
    • Dual front panel with adjustable louvers
    • Includes Mounting Bracket
    • Low [1.3 Amps]
    • High [1.9 Amps]
    • The Perfect Compact Heater for Hot Rods

      JEGS Hot Rod Heaters will keep you warm on those cold days, simply connect plumbing and wiring directly to your cooling system for immediate heat. The blower unit blows fresh air through the heat exchanger, elevating the air temperature, which then exits through the outlet louvers adding strong and consistent heat to any vehicle. You can even use these auxiliary heaters as an economical alternative to replacing a worn-out or hard-to-reach heater core. Heaters are available in a variety of sizes and styles with multiple speeds and adjustable settings. Defroster and Louver/Vent kits are available separately.

      Show More

    Part TypeAuxiliary Heater
    Product LineJEGS Hot Rod Heaters
    BrandJEGS
    Package Height5.1
    Package Width10.5
    Package Length10.9
    Weight5.25 PG
    Part CategoryAccessories
    Heater Output (Btus)8,500
    Heater Height4.625 in (117.475 mm)
    Mounting Hardware IncludedYes
    Heater StyleDual Louvered Front Vent
    Heater Flow (Cfm)80
    Uses Engine Coolant For HeatYes
    Heater FinishBlack
    Fan Speed2-speed
    Heater Depth7.875 in (200.025 mm)
    Heater Core Outlet Size.625 in O.D. (15.88 mm)
    Heater MaterialSteel
    Heater Type12-volt Universal
    Heater Core Inlet Size.625 in O.D. (15.88 mm)
    Heater Width10.25 in (260.35 mm)
    Part FitmentUniversal
    Package Qty1
    Package TypeEA
