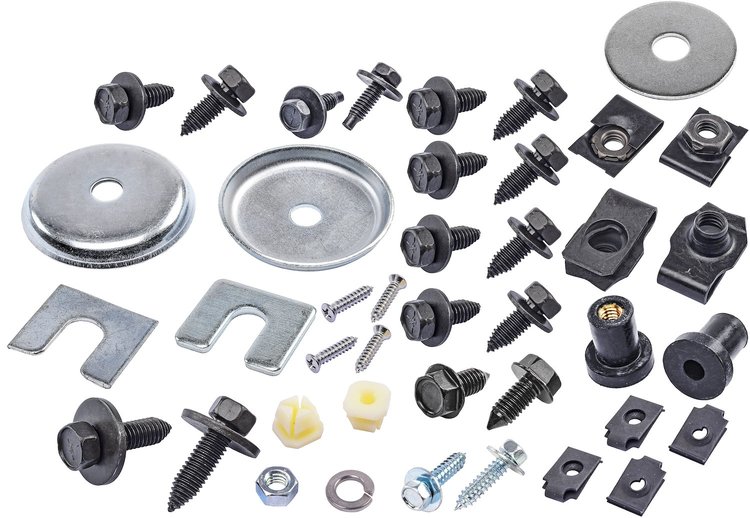

JEGS 79152 Kit Includes Hardware For:

Headlight Bracket, Lower Latch, Latch Brace, Fender Braces, Fender to Core Support, Top Header Panel Ends:

• (28) Body Bolts: 5/16 in.-18 x 3/4 in. UHL, with 1/2 in. hex head– head contains affixed 3/4 in. diameter fender washer
• (4) Split Lock Washers: 5/16 in.
• (4) Hex Nuts: 5/16 in.-18

Upper and Lower Fender Bolts to Cowl:

• (10) Body Bolts: 3/8 in.-16 x 1 3/16 in. UHL, with 9/16 in. hex head – head contains affixed 1 1/8 in. diameter fender washer
• (4) U-Nuts: 3/8 in.-16

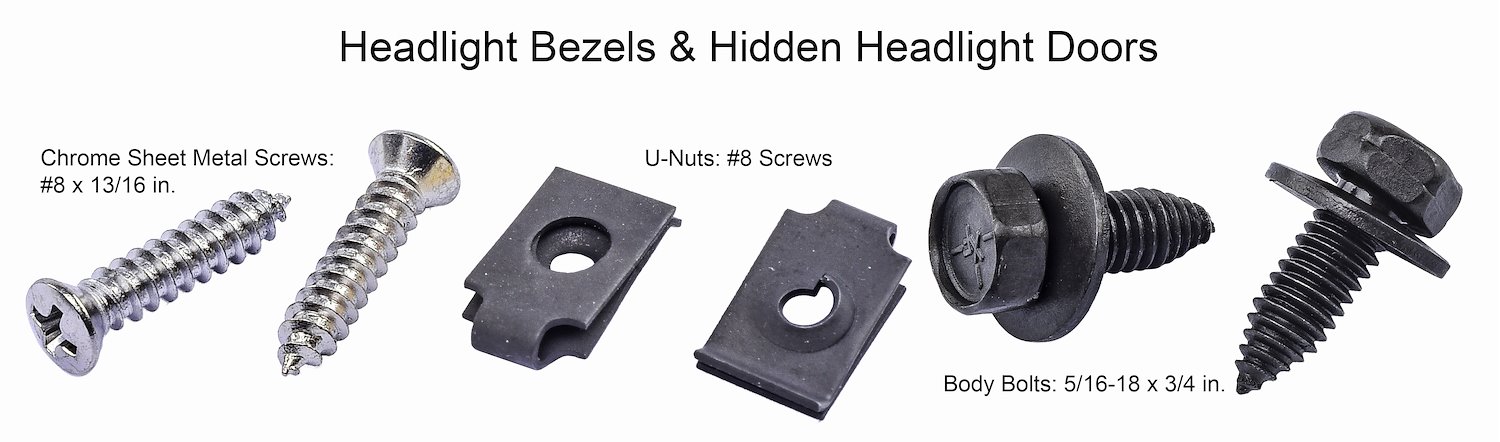

Headlight Bezels:

• (6) Phillips Oval Head Chrome Sheet Metal Screws: #8 x 13/16 in. OAL
• (6) U-Nuts: for #8 screws

Grille:

• (6) Plastic Square Screw Grommets: for 3/8 in. square hole
• (6) Body Bolts: 1/4 in.-14 x 7/8 in. UHL, with 3/8 in. hex head - head contains affixed 5/8 in. diameter fender washer
• (8) Phillips Oval Head Chrome Sheet Metal Screws: #8 x 13/16 in. OAL
• (8) U-Nuts: for #8 screws

Inner Upper Fender Wells:

• (4) Body Bolts: 5/16 in.-18 x 3/4 in. UHL, with 1/2 in. hex washer head
• (4) Cup Washers: 2 3/16 in. diameter x 5/16 in. depth

Hood Hinges: (Note: it is recommended that 1/16 in. be ground off the tip of the bolts to avoid the possibility of contact with the underside of the hood)

• (8) Body Bolts: 3/8 in.-16 x 7/8 in. UHL, with 9/16 in. hex head – head contains affixed 1 in. diameter fender washer

Fender Alignment:

• (4) Shims: 7/64 in. thick
• (4) Shims: 1/16 in. thick

Inner Fender Skirts:

• (28) Body Bolts: 5/16 in.-18 x 3/4 in. UHL, with 1/2 in. hex head – head contains affixed 3/4 in. diameter fender washer
• (28) J-Nuts: 5/16 in.-18

Inner Fender Brace:

• (6) Fender Washers: 3/64 in. thick x 1 1/2 in. diameter

Hidden Headlamp Doors:

• (12) Body Bolts: 5/16 in.-18 x 3/4 in. UHL, with 1/2 in. hex head – head contains affixed 3/4 in. diameter fender washer
