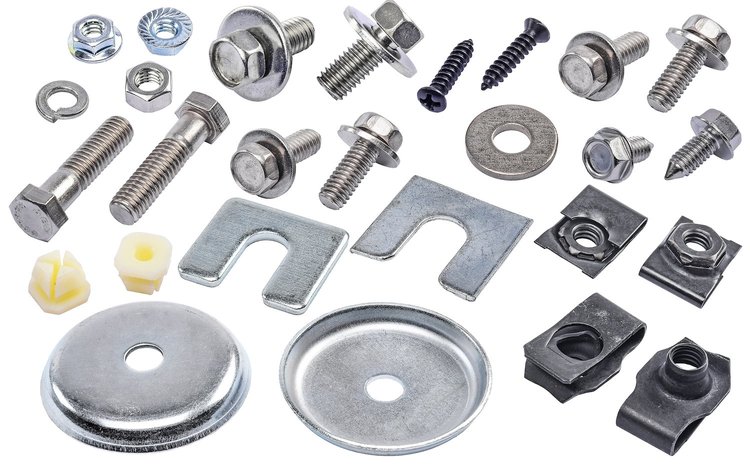

JEGS 79436 Kit Includes Hardware For:

Headlight Bracket, Lower Latch, Latch Brace, Fender Braces, Fender to Core Support, Top Header Panel Ends:

• (28) Bolts: 5/16 in.-18 x 3/4 in. UHL, with 1/2 in. hex head – head contains affixed 3/4 in. diameter fender washer
• (4) Split Lock Washers: 5/16 in.
• (4) Hex Nuts: 5/16 in.-18

Upper and Lower Fender at Cowl:

• (10) Bolts: 3/8 in.-16 x 1 1/2 in. UHL, with 9/16 in. hex head
• (10) Flat Washers for: 3/8 in. bolts
• (4) U-Nuts: 3/8 in.-16

Headlight Bezel and Upper Grille:

• (8) Phillips Oval Head Black Sheet Metal Screws: #8 x 3/4 in. OAL
• (8) Plastic Square Screw Grommets: for 5/16 in. square hole
• (7) Hex Flange Nuts: 1/4 in.-20

Inner Upper Fender Wells:

• (4) Body Bolts: 5/16 in.-18 x 3/4 in. UHL, with 1/2 in. hex washer head
• (4) Cup Washers: 2 3/16 in. diameter x 5/16 in. depth

Hood Hinges:

• (8) Bolts: 3/8 in.-16 x 3/4 in. UHL, with 9/16 in. hex head – head contains affixed 1 in. diameter fender washer

Fender Alignment:

• (4) Shims: 7/64 in. thick
• (4) Shims: 1/16 in. thick

Inner Fender Skirts:

• (28) Bolts: 5/16 in.-18 x 3/4 in. UHL, with 1/2 in. hex head – head contains affixed 3/4 in. diameter fender washer
• (28) J-Nuts: 5/16 in.-18
