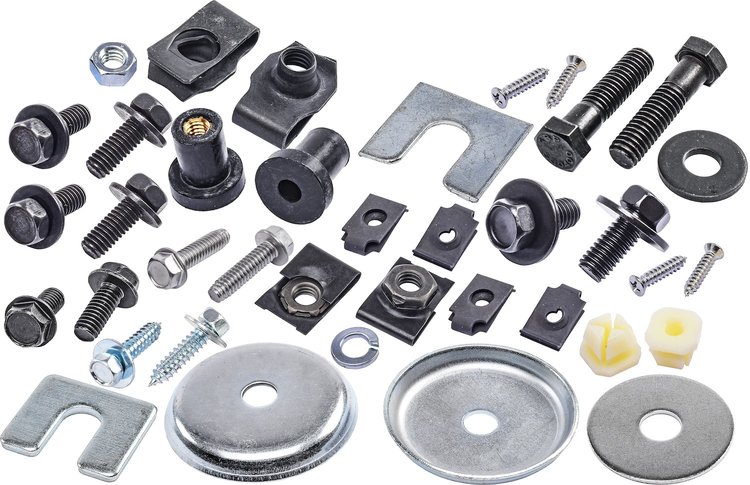

Front End Bolt Kit 1969 Chevy Camaro RS [Black Oxide-Coated Stainless Steel]

Name: Front End Bolt Kit 1969 Chevy Camaro RS [Black Oxide-Coated Stainless Steel]
Brand: JEGS
SKU: 555-79450
Price: 190.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

F-Body Front End Fastener Kits

Front End Bolt Kit

1969 Chevy Camaro RS

Black Oxide-Coated Stainless Steel

198-Piece Kit

JEGS 79450 Kit Includes Hardware For:

Headlight Bracket, Lower Latch, Latch Brace, Fender Braces, Fender to Core Support, Top Header Panel Ends:

(28) Bolts: 5/16 in.-18 x 3/4 in. UHL, with 1/2 in. hex head– head contains affixed 3/4 in. diameter fender washer
(4) Split Lock Washers: 5/16 in.
(4) Hex Nuts: 5/16 in.-18

Upper and Lower Fender Bolts to Cowl:

(10) Bolts: 3/8 in.-16 x 1 1/2 in. UHL, with 9/16 in. hex head
(10) Flat Washers for: 3/8 in. bolts
(4) U-Nuts: 3/8 in.-16

Headlight Bezels:

(6) Phillips Oval Head Chrome Sheet Metal Screws: #8 x 13/16 in. OAL
(6) U-Nuts: for #8 screws

Grille:

(6) Plastic Square Screw Grommets: for 3/8 in. square hole
(6) Bolts: 1/4 in.-14 x 1 in. UHL, with 3/8 in. hex head - head contains affixed 5/8 in. diameter fender washer
(8) Phillips Oval Head Chrome Sheet Metal Screws: #8 x 13/16 in. OAL
(8) U-Nuts: for #8 screws

Inner Upper Fender Wells:

(4) Body Bolts: 5/16 in.-18 x 3/4 in. UHL, with 1/2 in. hex washer head
(4) Cup Washers: 2 3/16 in. diameter x 5/16 in. depth

Hood Hinges:

(8) Bolts: 3/8 in.-16 x 7/8 in. UHL, with 9/16 in. hex head – head contains affixed 1 in. diameter fender washer

Fender Alignment:

(4) Shims: 7/64 in. thick
(4) Shims: 1/16 in. thick

Inner Fender Skirts:

(28) Bolts: 5/16 in.-18 x 3/4 in. UHL, with 1/2 in. hex head – head contains affixed 3/4 in. diameter fender washer
(28) J-Nuts: 5/16 in.-18

Inner Fender Brace:

(6) Fender Washers: 3/64 in. thick x 1 1/2 in. diameter

Hidden Headlamp Doors:

(12) Bolts: 5/16 in.-18 x 3/4 in. UHL, with 1/2 in. hex head – head contains affixed 3/4 in. diameter fender washer

All the Fasteners You Need to Complete Your Install the First Time

JEGS Fastener Kits include all the nuts, bolts, screws, clips, washers, etc. to install the bodywork on your GM car restoration project. JEGS Rubber Stopper Kits include all the necessary stoppers to help protect your vehicle from potential damage. You do not want any missing hardware to hold you back from completing the installation on your classic. Matching or exceeding OE quality in fit and finish, a JEGS Body Fastener Kit is a great compliment to your restoration. We also offer GM Truck Body Fastener Kits CLICK HERE

Part TypeBolt Kit

Product LineJEGS GM Car Body Fastener Kits

BrandJEGS

Package Height3.6

Package Width6.3

Package Length6.5

Weight5.66 PG

Part CategoryReplacement Parts

Washers IncludedYes

Nuts IncludedYes

Bolts IncludedYes

Part FitmentDirect Fit
