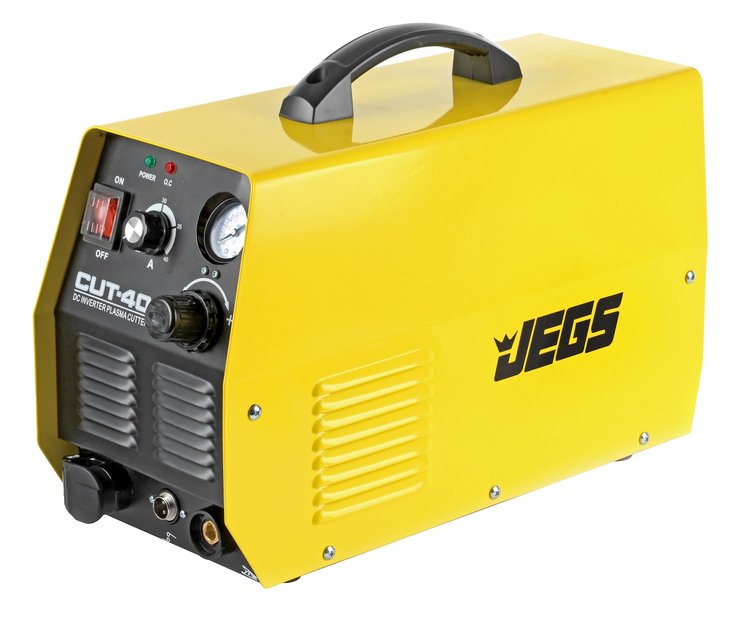

Plasma Cutter, CUT-40 [20-40 Amp, 110VAC/220VAC]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-81545

Plasma Cutter, CUT-40 [20-40 Amp, 110VAC/220VAC]

$26999$384.99You Save$115.00
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Cut 40
Plasma Cutter
  • Cut-40
  • 110VAC/220VAC
  • 60%@30A, 120V
  • 100%@24A, 120V
  • 50%@40A, 220V
  • 60%@36A, 220V
  • 100%@25A, 220V
  • Cuts Steel/Iron up to 3/8 Thick
  • 26.5 lbs

    JEGS 555-81545 Plasma Cutter

    JEGS 81545 40-Amp Cut-40 Plasma Cutter allows you to cut metal the easy way. It can cut up to 3/8 in. mild steel and has a variable output air regulator. This plasma cutter is easy to use and great for auto restoration, metal fabrication, metal artistry, and the perfect addition to any garage or workshop.

    JEGS 555-81545 Plasma Cutter Features:

    • Create clean, precise & intricate cuts in many forms of steel and iron
    • Cuts up to 3/8 inch thick steel and iron
    • Significantly faster than other forms of cutting
    • Makes curved or intricate cuts more precisely than other cutters
    • Built-in moisture separator for better cutting and longer life
    • Significantly faster than other forms of cutting
    • Makes curved or intricate cuts more precisely
    • Solid-state electronics
    • Built-in moisture separator
    • Sturdy metal cabinet with JEGS Logo
    • Works virtually anywhere with any 110V or 220V outlet
    • Lightweight and portable with a built-in top handle for easy mobility
    • 1 Year Warranty
    • The Cut-40 weighs just 26.5 pounds and requires only 5-7 CFM of compressed air to operate
    • This unit will create clean, precise intricate cuts in many forms of mild steel up to 3/8 in. thick

    JEGS 555-81545 Plasma Cutter Includes:

    • Power Cable

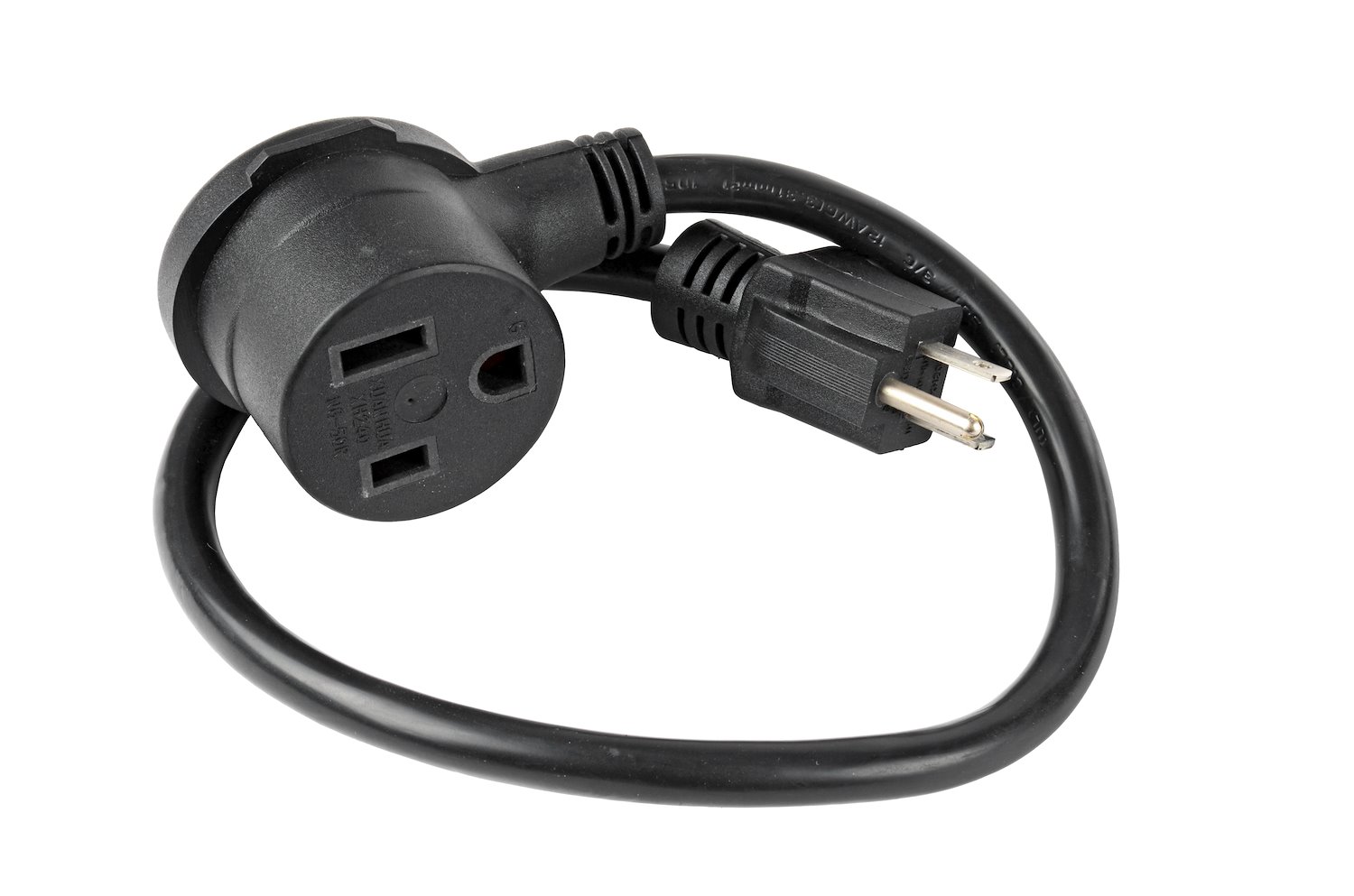

    • 110V to 220V Plug Adapter
    • Plasma Cutting Torch
    • Ground Cable/Clamp
    • Hand-Held Mask
    • Wire Brush

    • Professional-Grade Metal Cutting

    JEGS Plasma Cutters are available in 40 amp and 60 amp versions to take your metal cutting to a new level. Precision cuts, the ability to produce intricate detail, and fast progress are just some of the benefits of these professional-grade tools. Both styles of plasma cutters have a variable output regulator and come equipped with a hand torch, ground cable and clamp, power cord, mask, wire brush and replacement tip. Combine this with an air supply and personal protective equipment, and you’re ready to start cutting!

    • Utilizing 110V or 220V outlets, the Cut 40 model can be used anywhere, and will cut aluminum, iron, mild steel, and stainless steel thicknesses up to 3/8 (.375) inches
    • The Cut 60 model requires a 220V outlet and has the ability to cut thicknesses up to 7/8 (.875) inches
    Show More

    Part TypePlasma Cutter
    Product LineJEGS Plasma Cutters
    BrandJEGS
    Package Height10.1
    Package Width15.5
    Package Length20.5
    Weight27.9 PG
    Weight26.5 lb (12.018 kg)
    Part CategoryAccessories
    Torch Tip0.3 in (7.6 mm)
    Recommended Cut Thickness0.24 in (6.1 mm)
    Max Cut Thickness0.375 in (9.525 mm)
    Torch Cable Length (Ft.)12.8
    Dimensions21" x 11" x 13"
    Input Voltage230V
    Output Power (Kw)3.9
    Ground Cable Length (Ft.)8.25
    Amperage Rating20-40 amps
    Max Amp Output40
    Duty Cycle60% @ 30 Amps
    Part FitmentUniversal
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
