Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Winches

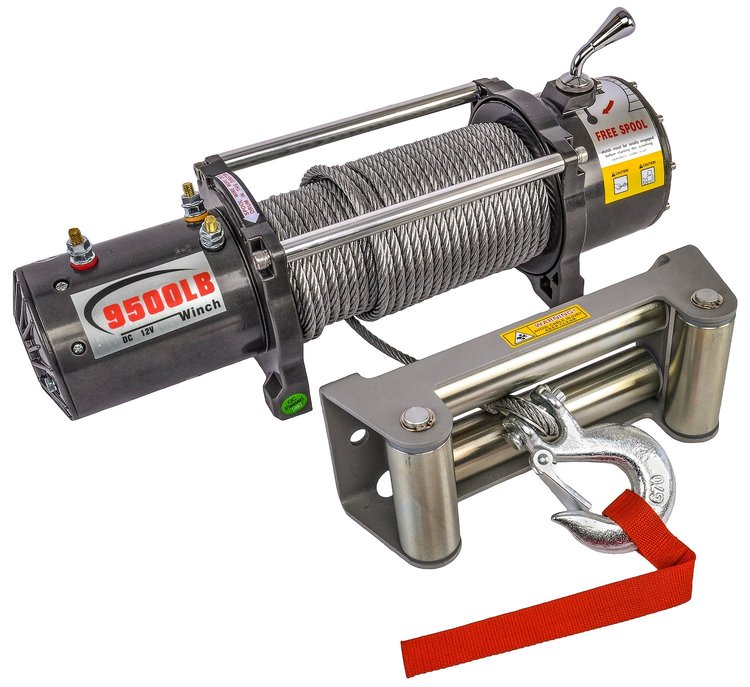

Electric Winch9500 lb. Single Line-Rated Pull Series Wound 12V Motor w/ 5.5 HP Output 265:1 Gear Ratio 3-Stage Planetary 4-Way Roller Fairlead 5/16 in. x 92 ft. Wire Cable 84 lbs. Free Spooling Dynamic Braking Power In/Out
JEGS high-performance 5.500 HP electric winch features a machined gear, 4-way roller fairlead with 92 ft. of 5/16 in. diameter steel cable, and a hammer-forged steel hook for 3,000 to 9,500 lb. of pulling power to bail you out of any situation you may encounter.
- 6 ft. Battery Leads with 5/16 in Eyelets
- Low Gear Reduction Ratio
- Planetary Gear System
- Roller Fairlead
- Steel Cable with Hammer-Forged Steel Hook
- 3,000 to 9,500 lb. Pull Rating
Part TypeWinch
BrandJEGS
Package Height10.5
Package Width14.0
Package Length24.0
Weight80.0 PG
Weight84 lb (38.095 kg)
Part CategoryAccessories
Winch Line IncludedYes
Winch Line Length (Ft.)92
Winch Line Diameter (In.)5/16
Pull Rating (Lbs.)9,500
Mounting Hole Quantity4 holes
Winch Line MaterialSteel
QuantitySold as a kit
Power OutYes
Remote IncludedYes
Free-SpoolingYes
Mounting Pattern Length10 in (254 mm)
Winch StyleElectric
No Load Line Speed23.00 fpm
Motor Horsepower5.50 hp
Drive Gear3-stage planetary
Conforms To J706 StandardsNo
Remote (Ft.)12 wired remote
Winch Line TypeCable
BrakeYes
Winch Fairlead TypeRoller
Volts12 volts
Gear Reduction Ratio265:01
Mounting Pattern Width4.5 in (114.3 mm)
Package Qty1
Package TypeEA
