Reproduction Aluminum Radiator with Triple Pass Cooling Fits Select 1965-1981 GM Models [16 in. Fan]

Name: Reproduction Aluminum Radiator with Triple Pass Cooling Fits Select 1965-1981 GM Models [16 in. Fan]
Brand: JEGS
SKU: 555-97058
Price: 479.99 USD
Availability: InStock

^$479⁹⁹$527.99You Save$48.00

Ships on 09/21/2026

Lowest Price Guarantee

Reproduction Aluminum Radiator with Triple Pass Cooling

Fits Select 1965-1981 Buick, Chevy, Oldsmobile, & Pontiac Models

See Fitment Tab for All Applications

Direct Fit

Maximum Cooling

Aluminum

Semi-Polished Finish

Includes 16 in. Fa

JEGS 555-97058 Radiator Features:

Fits select 1967-1976 Buick Electra, 1968-1973 Buick GS, 1965-1976 Buick LeSabre, 1967-1976 Buick Riviera, 1968-1972 Buick Skylark
Fits select 1971-1976 Chevrolet Full-Size, 1968-1977 Chevrolet Chevelle, 1968-1972 Chevrolet Corvette, 1977-1979 Chevrolet Corvette, 1968-1977 Chevrolet El Camino, 1970-1977 Chevrolet Monte Carlo
Fits select 1966-1976 Oldsmobile 442, 1965-1973 Oldsmobile 88 and 98, 1966-1967 Oldsmobile Toronado
Fits select 1968-1976 Pontiac Bonneville, 1968-1976 Pontiac Catalina, 1968-1976 Pontiac Grand Prix, 1970-1981 Pontiac Firebird, 1968-1977 Pontiac GTO, LeMans, Tempest
Direct replacement bolt-in radiator, "Looks like the original"
Baffles are installed in the tanks, creating triple-pass cooling instead of just a single pass. The coolant doesn't mix on one side and make one pass to cool, it makes multiple passes for maximum cooling

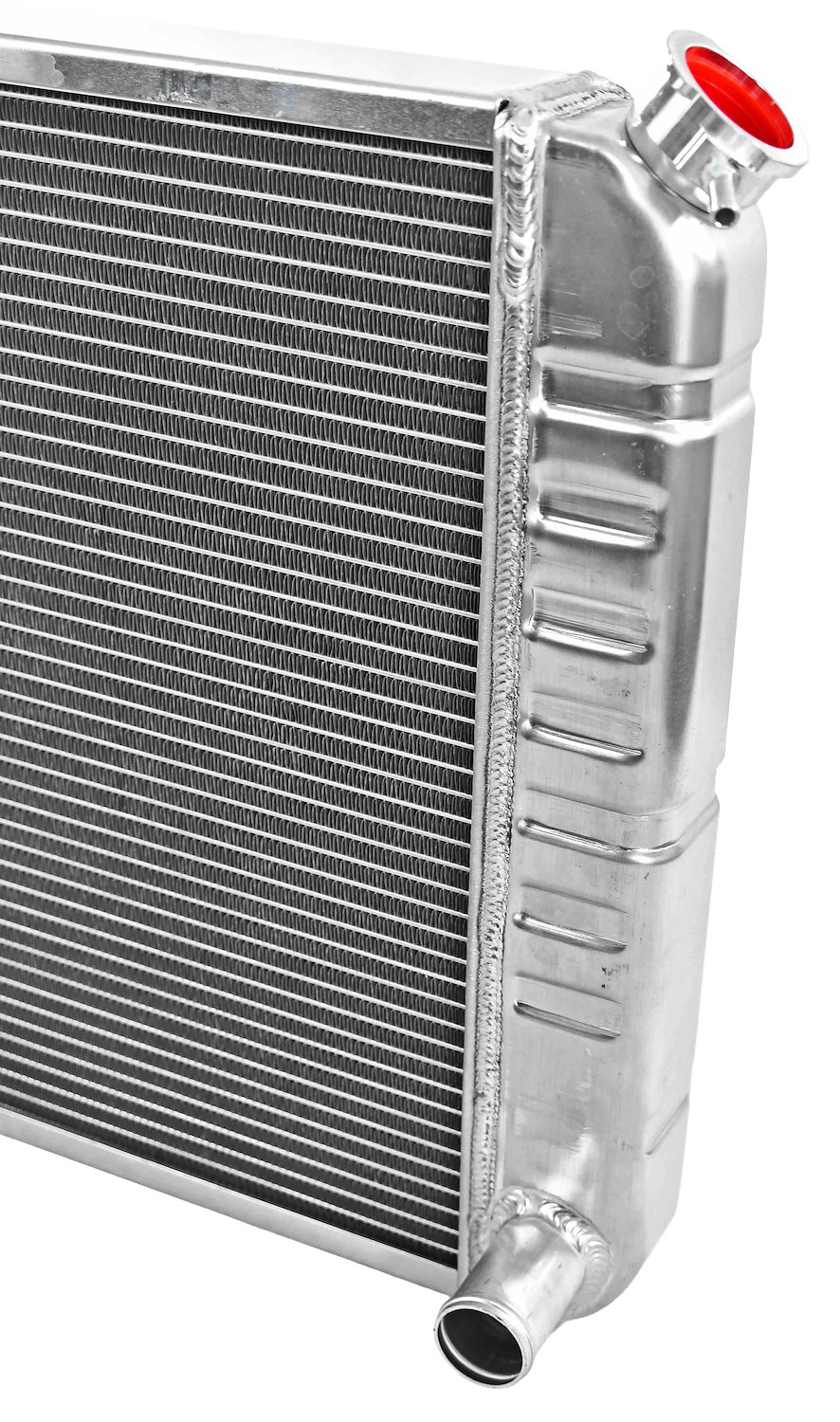

Original-style stamped aluminum tanks with ribs like the original with mounting brackets attached
Made with high-quality 100-percent aluminum and fully TIG-welded
Crossflow design
Dual 1.13 in. high flow tubes for maximum cooling with 33% more cooling capacity
Core dimensions: 28.25 in. width x 18.75 in. height x 2.5 in. thickness
Overall dimensions: 33.5 in. width x 18.75 in. height x 3 in. thickness
Inlet: 1.5 in. diameter left/driver side upper
Outlet: 1.5 in. diameter right/passenger side lower
Built-in transmission cooler
Semi-polished finish that can be easily painted

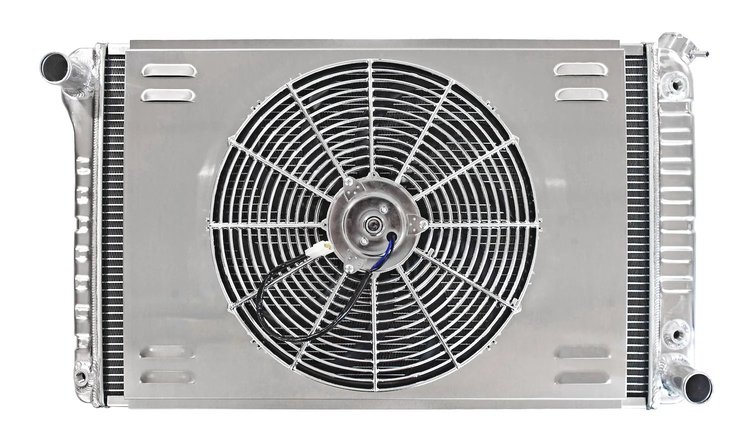

Comes with single 16 in. fan

Performance Cooling for Your Classic Car

JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.

JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

Part TypeRadiator

Product LineJEGS Reproduction Aluminum Radiators for Classic Cars

BrandJEGS

Package Height7.0

Package Width22.0

Package Length35.0

Weight32.0 PG

Part CategoryReplacement Parts

Overall Thickness3 in (76.2 mm)

Overall Height18.75 in (476.3 mm)

Outlet Size1.500 in.

Inlet Size1.500 in.
