JKS MANUFACTURINGPART NUMBER: 460-OGS945

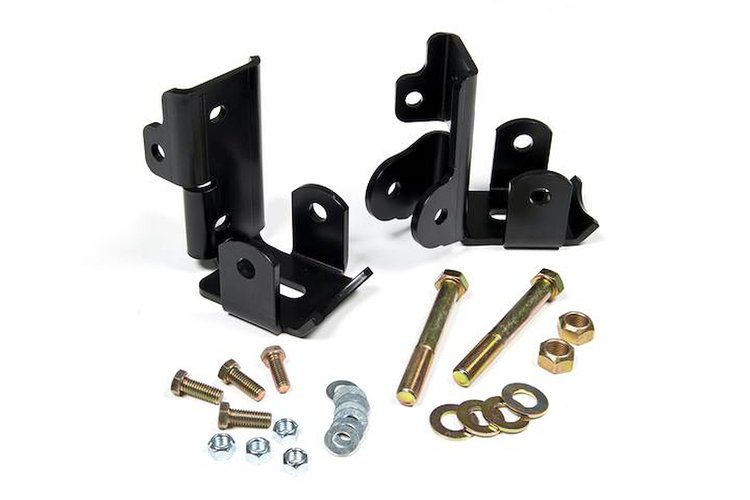

OGS945 Rear Shock Relocation Kit, 2007-2018 Jeep Wrangler JK
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Rear Shock Relocation Kit2007-2018 Jeep Wrangler JK
JKS Manufacturing OGS945 Features:
Relocate the shock mounts on the Jeep Wrangler JK for better clearance and enhanced reliability with a JKS rear shock relocation kit. The new mounting brackets are made of 1/4 " steel and include a dual-shear shock mount and new sway bar link mount. An integrated control arm mount skid plate adds protection. Installation is bolt-on and requires the removal of the factory axle shock mounts, sway bar link mounts and trimming of the control arm mount. A 2" improvement in ground clearance is an added benefit. The shock mounts are moved up 2-1/4" from the factory position and the sway bar mount moves up 1-3/4". Designed for bolt-on Installation. Features a black, powder-coated finish. Shock Mount Width: 1.60"; Shock Bolt Diameter 12mm; Brackets Made From 3/16" Steel; Minor Drilling Required.- Relocates the shocks higher on the axle
- Integrated rear control arm skid plate
- Brackets are powder coated in classic JKS black
- This kit relocates the rear shocks higher on the axle which allows trimming of the low-hanging factory mounts to maximize ground clearance
Part TypeShock Absorber Mount
BrandJKS MANUFACTURING
Package Height4.0
Package Width6.0
Package Length9.0
Weight7.5 PG
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part NumberOGS945
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
