PCT0 Pro-Cube Delay Box [Base Model]
InfoVehicle Info Needed
K&RPART NUMBER: 572-PCT0

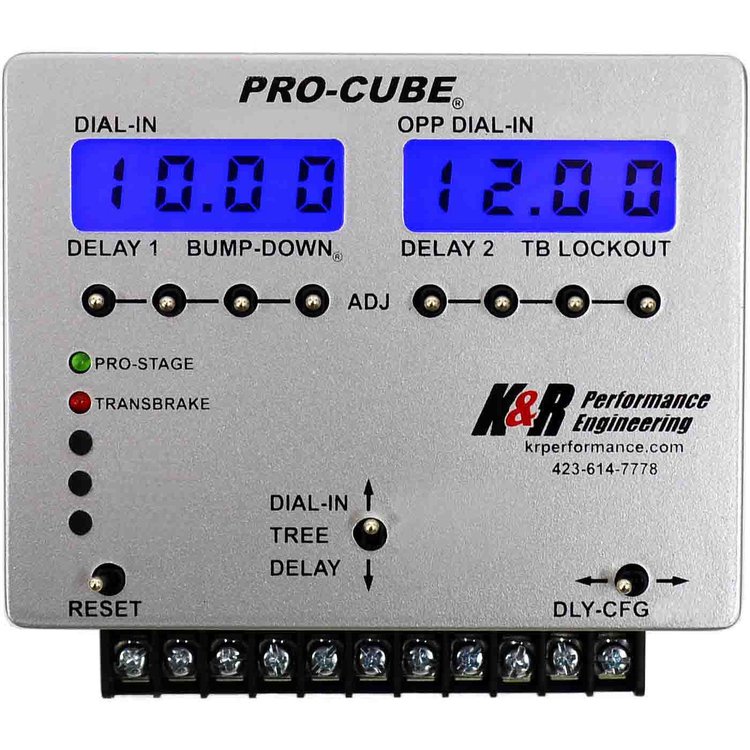

PCT0 Pro-Cube Delay Box [Base Model]

$39799
3 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Pro-Cube Dash Mounting Kit

K&R

Pro-Cube Dash Mounting Kit

Part Number : 572-PCTB
$3999
Micro Switch with Cord [Fingertip-Sized Button]

JEGS

Micro Switch with Cord [Fingertip-Sized Button]

Part Number : 555-10330
$4549$71.99
You Save$26.50
Micro Switch with Cord [Palm-sized Button]

JEGS

Micro Switch with Cord [Palm-sized Button]

Part Number : 555-10331
$5299$58.99
You Save$6.00
Quick Release Transbrake Button Diameter: 0.966"

JEGS

Quick Release Transbrake Button Diameter: 0.966"

Part Number : 555-10350
$6499$71.99
You Save$7.00

Pro-Cube Delay Boxes
Pro-Cube Delay Box
  • No Timers

    K&R PCT0 Pro-Cube Delay Box Base Model Features:

    • AUTOMATIC CROSSOVER / CROSSTALK - Enter dial-ins, react to the first "flash," and let the box perform calculations.
    • SMALL SIZE - 4.5"W x 3.5"H x 2.75"Deep, allowing the unit to fit virtually anywhere with space for a tachometer and other gauges.
    • BUMP DOWN - Correct for late reactions (adjustable to .001sec. increments).
    • NEW! “BUMP UP” – A separate button allows you to “Bump Up” (adjustable to .001sec. increments) without losing the chance to “Bump Down.”
    • DOUBLE-HIT - Take two "shots" at the tree and leave on your quickest reaction.
    • LARGE LCD DISPLAY - New blue backlighting for easy day/night viewing.
    • QUICK SET SWITCHES - Allows nearly instant changes to any setting, eliminating panic during last-second adjustments.
    • RUN INFO - Automatically displays reaction differential and “Bump” counts.
    • TRANSBRAKE LOCKOUT - Prevents accidental transbrake lockup (adjustable timer).
    • FLINCH PROTECTION - Prevent red lights with built-in flinch protection.
    • RESET SWITCH - Instantly stops the delay box cycle, getting you race-ready.
    • LINELOCK - Versatile output for connecting linelock, "launch-control" throttle stop, etc.
    • PRO-STAGE - Patented system developed by Frank Hawley, allowing idle staging for both Full tree and Pro tree for improved concentration and consistency.
    • LED INDICATORS - Status lights show when each output is activated.
    • OVERLOAD PROTECTION - Self-protection from overloads and shorts on all outputs.
  • K&R Performance Pro-Cube Features

    K&R Performance prides itself on product quality and satisfaction with over eighteen years experience designing, manufacturing and selling multi-function microprocessor delay boxes. Their unsurpassed 2-year warranty is a testimony to the reliability and quality standards that K&R builds into every Pro-Cube delay box.

    Features Include:

    • Compact Size (Dimensions: 4-1/2'' long x 3-1/2'' wide x 2-3/4'' high)
    • Bump Up (w/o losing Bump Down)
    Show More
    • Bump Down (correct late reactions; adjust .001-of-a-second increments)
    • Large LCD with blue backlighting for easy day/night viewing
    • LED status output indicators
    • Quick Set Switches for fast changes
    • Automatic crossover and "double hit" the tree
    • Run info (displays reaction differential and bump counts)
    • Transbrake lockout with adjustable timer
    • Flinch protection
    • 2-hit interface
    • Pro-Stage: Patented system developed by Frank Hawley for improved concentration & consistency. Waits until tree starts on Full Tree; goes to full throttle when transbrake is activated on Pro Tree.
      For K&R Pro-Cube Plus Timer Delay Boxes
    Part TypeDelay Box
    Product LineK&R Pro-Cube Delay Box
    BrandK&R
    Package Height5.4
    Package Width5.4
    Package Length5.7
    Weight1.4 PG
    Part CategoryPerformance Parts
    Delay Box Depth2.75 in.
    Digital TachometerNo
    Tap Up/Tap DownYes
    Crossover DelayYes
    Remote Digital Dial In Board OutputNo
    Number Of Timers0
    Part FitmentUniversal
    Z-Force Switch ModeNo
    Starting Line Launch ControlYes
    Delay Box Length4.5 in.
    Accidental Release ProtectionYes
    Vendor Part NumberPCT0
    Package Qty1
    Package TypeEA
