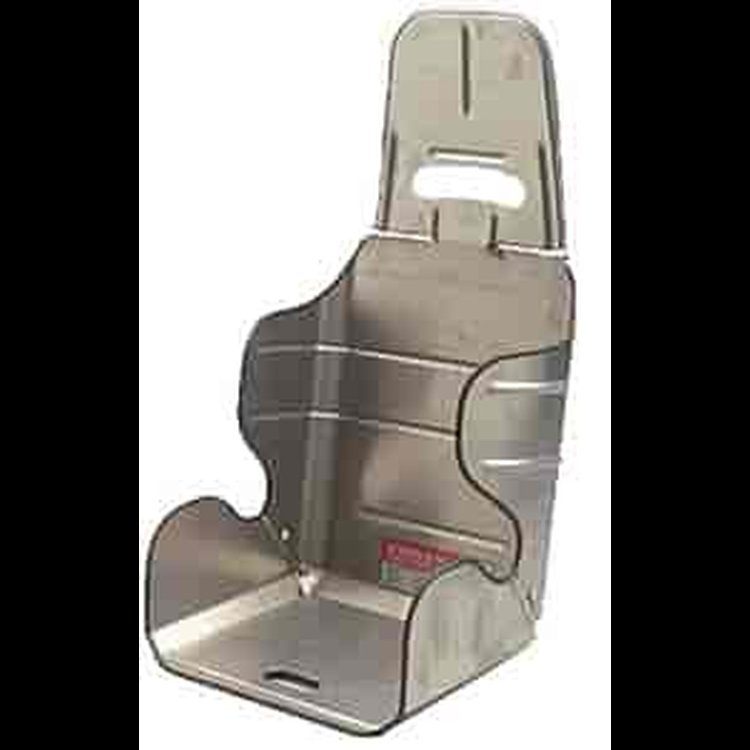

Aluminum Economy Oval Track Seat 10° Layback

Name: Aluminum Economy Oval Track Seat 10° Layback
Brand: KIRKEY
SKU: 570-19800
Price: 128.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Economy Oval Track Seats Only
10° Layback

Aluminum Economy Oval Track Seat
10° Layback
17-1/2'' Hip Width
Double Rib Support
Clip-On Seat Cover Style

Designed for Oval Track, I.M.C.A Modifieds, Limited Late Models, Street Stocks and Entry Level Classes
These inexpensive Kirkey Economy series double rib 10° and 20° layback seats have the same Kirkey quality as their most expensive race seats. Made of thick .125'' 5052 grade aluminum, TIG welded on the outside and MIG welded inside for added strength. The headrest is reinforced using Kirkey's unique tubular rolled edge. The seat bottom is contoured to support lower back and hips. The seat sides are lowered for lap belts and the Submarine belt opening is standard. It also features a rubber molding around the perimeter edges of the seat and belt openings.
Economy Oval Track Seat Covers have extra thick high density foam padding on the bottom to support your thighs. Seams are double stitched around the belt openings and all stress areas. There is also extra padding in the rib area for safety and comfort.
Note: Click here to see diagram of 10° Layback seat dimensions

Note: Click Here to see diagram of 20° Layback seat dimensions

Part TypeSeat
Product LineKirkey Aluminum Economy Oval Track Racing Seats
BrandKIRKEY
Package Height19.0
Package Width21.0
Package Length34.0
Weight13.4 PG
Part CategoryPerformance Parts
Seat StyleHighback bucket
Seat Layback10 degree
Seat FinishNatural
QuantitySold individually
Seat MaterialAluminum
Depth22.5 in (571.5 mm)
Vendor Part Number19800
Package Qty1
Package TypeEA
